SZT 550 CE (5901403) - Simplicity Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton Wheel & Tire Group (5304336_5304337) Parts Diagram

Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton

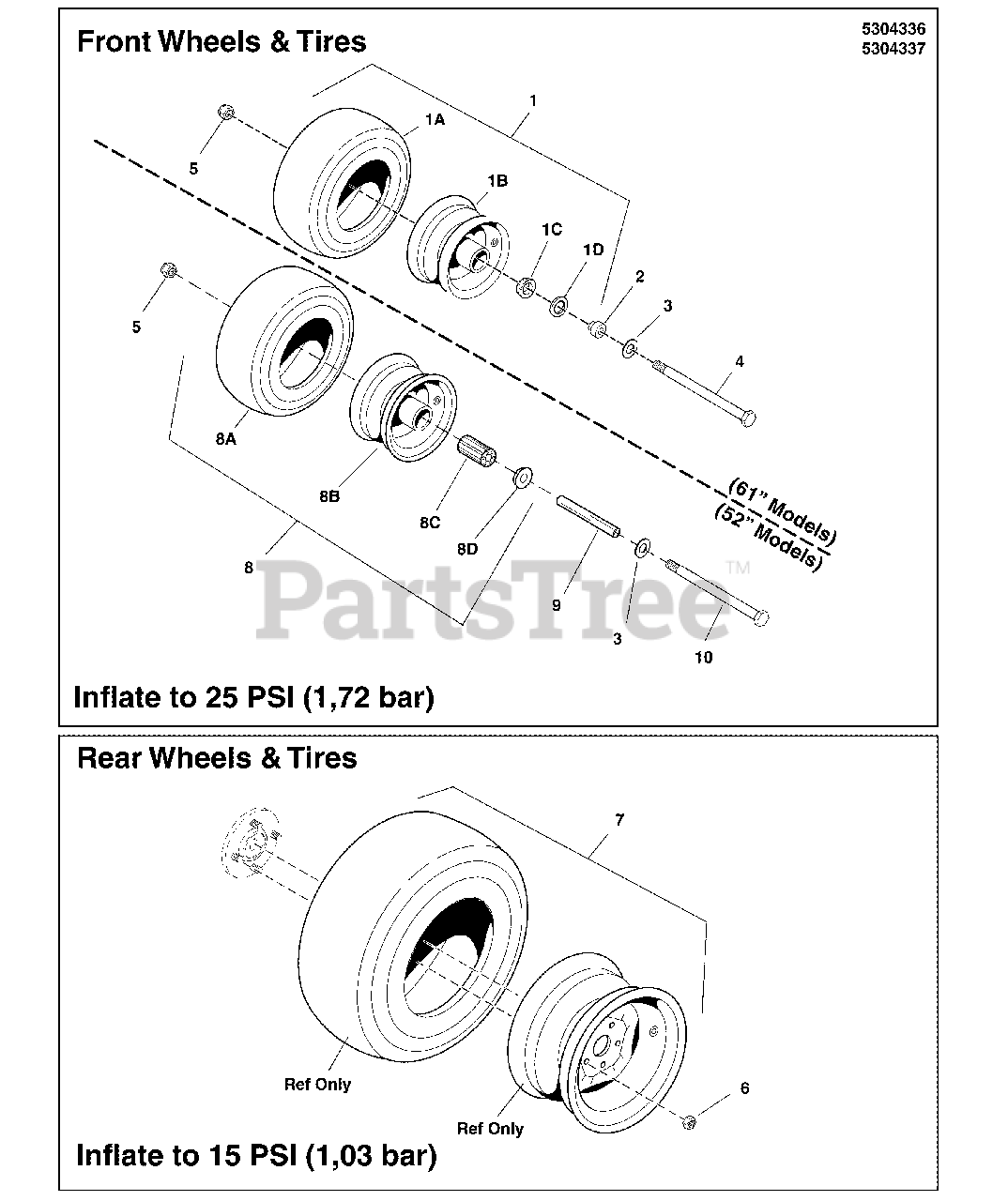

Wheel & Tire Group (5304336_5304337) Parts Diagram

  • Title

1

Simplicity 5022631SSM

TIRE, CASTER, 13 X 5.00-6

Note: (61" Models)

$172.99

$

In Stock, only 3 left!

0

1A

Simplicity 5022029X1SM

TIRE ONLY (SV)

Note: (61" Models)

$

$

Not available

1B

Simplicity 5022631SX1SM

WHEEL ASSY, 13 X 5 X 6, SILVER (SV)

Note: (61" Models)

$105.99

$

Usually ships in 2-12 days

0

1C

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (Qty: 2 per tire)(61" Models)

$13.99

$

In Stock, Qty 17

0

1D

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (Qty: 2 per tire)(61" Models)

$9.99

$

In Stock, Qty 18

0

2

Simplicity 5047103SM

ADAPTER, CASTER AXLE, CZ

Note: (Qty: 2 per tire)(61" Models)

$11.99

$

In Stock, Qty 20+

0

3

Simplicity 5025158SM

WASHER, 1/2 SAE

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5025017X64SM

BOLT, 1/2-13 X 8 GD5 YZ

$10.99

$

In Stock, only 2 left!

0

5

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1759585YP

WHEEL AND TIRE ASSY, 20X10-8 (K505)

$437.99

$

Usually ships in 2-12 days

0

8

Simplicity 5101418YP

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO

Note: (52" Models)

$127.99

$

In Stock, only 2 left!

0

8A

Simplicity 5022433X1SM

TIRE, FRONT, 11 X 4.0 - 5

Note: (52" Models)

$77.99

$

In Stock, Qty 8

0

8B

Simplicity 5101418X2YP

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP

Note: (52" Models)

$86.99

$

In Stock, only 2 left!

0

8C

Simplicity 5101418X1YP

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK

Note: (52" Models)

$29.99

$

In Stock, only 2 left!

0

8D

Simplicity 5021043SM

BEARING, RETAINER

Note: (Qty: 2 per tire)(52" Models)

$7.49

$

In Stock, Qty 16

0

9

Simplicity 5045996SM

CASTER AXLE DDSH

Note: (52" Models)

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025017X56YP

BOLT, 1/2-13 X 7 GD5 CZ

Note: (52" Models)

$15.99

$

In Stock, only 1 left!

0
