T-15 (1600115) - Homelite Garden Tractor, 15hp Draw Bar Assembly Group (3858I01) Parts Diagram

Garden Tractor, 15hp

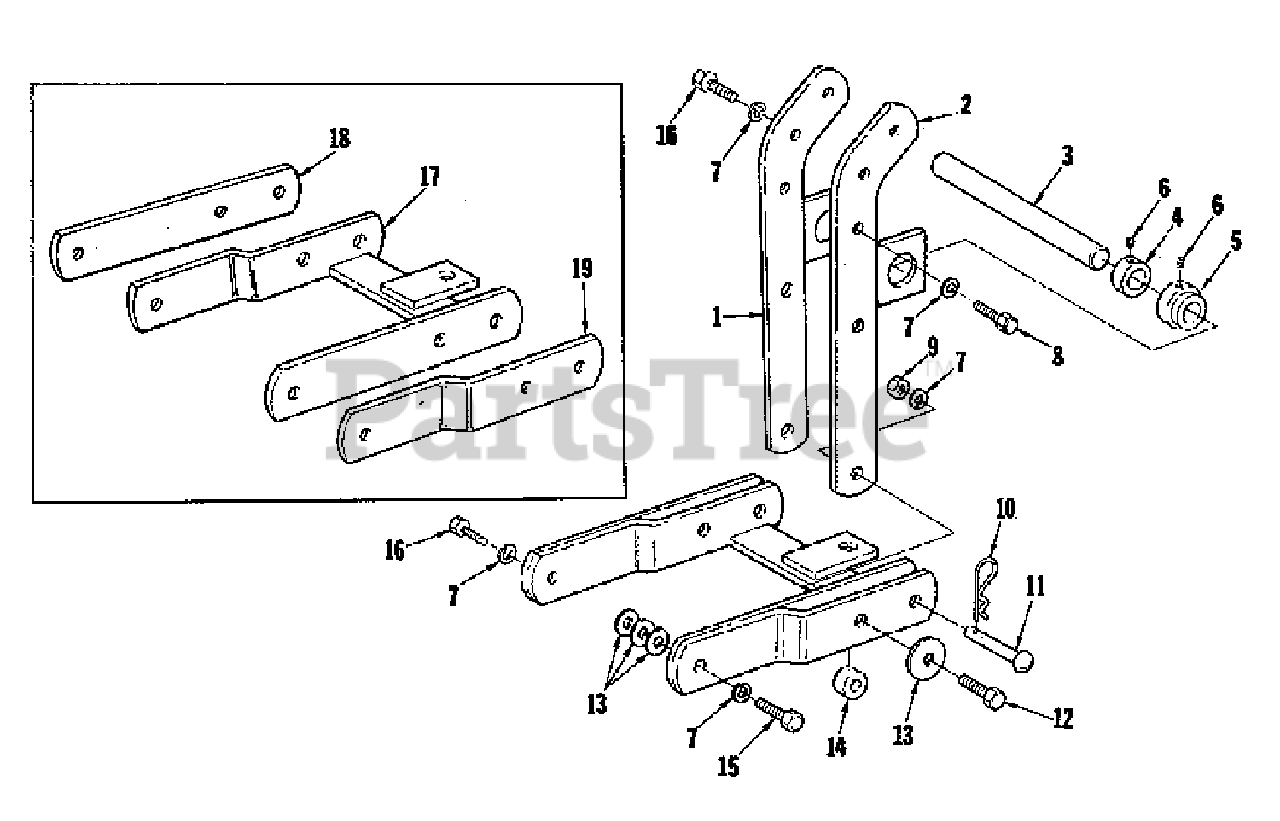

Draw Bar Assembly Group (3858I01) Parts Diagram

  • Title

1

Simplicity LM-01643-04

ARM ASSEMBLY, L.H.

$

$

Not available

2

Simplicity LM-01642-84

ARM ASSEMBLY, R.H.

$

$

Not available

3

Simplicity LM-16076-87

SHAFT, Lift

$

$

Not available

4

Simplicity LM-16075-53

COLLAR, Set

$

$

Not available

5

Simplicity LM-80210-10

COLLAR, Set

$

$

Not available

6

Simplicity LM-09117-12

SCREW, Set

$

$

Not available

7

Simplicity LM-09181-99

WASHER, Lock

$

$

Not available

8

Simplicity LM-09182-12

SCREW, Hex Head Cap

$

$

Not available

9

Simplicity LM-09182-13

NUT, Hex

$

$

Not available

10

Simplicity LM-09181-96

CLIP, Spring

$

$

Not available

11

Simplicity LM-01550-37

PIN, Round Head

$

$

Not available

12

Simplicity LM-09166-09

SCREW, Hex Head Cap

$

$

Not available

13

Simplicity LM-09184-30

WASHER, Flat

$

$

Not available

14

Simplicity LM-01660-76

SPACER

$

$

Not available

15

Simplicity LM-09166-08

SCREW, Hex Head Cap, 7/16-14 x 1-1/2

$

$

Not available

16

Simplicity LM-09164-32

SCREW, Hex Head Cap

$

$

Not available

17

Simplicity LM-16066-36

DRAWBAR ASSEMBLY

$

$

Not available

18

Simplicity LM-01570-91

BAR, Pull

$

$

Not available

19

Simplicity LM-01542-03

BAR, Draw

$

$

Not available
