T-16 H (1690049) - Homelite Garden Tractor, 16hp Rear Axle & Differential Group (3859I11) Parts Diagram

Garden Tractor, 16hp

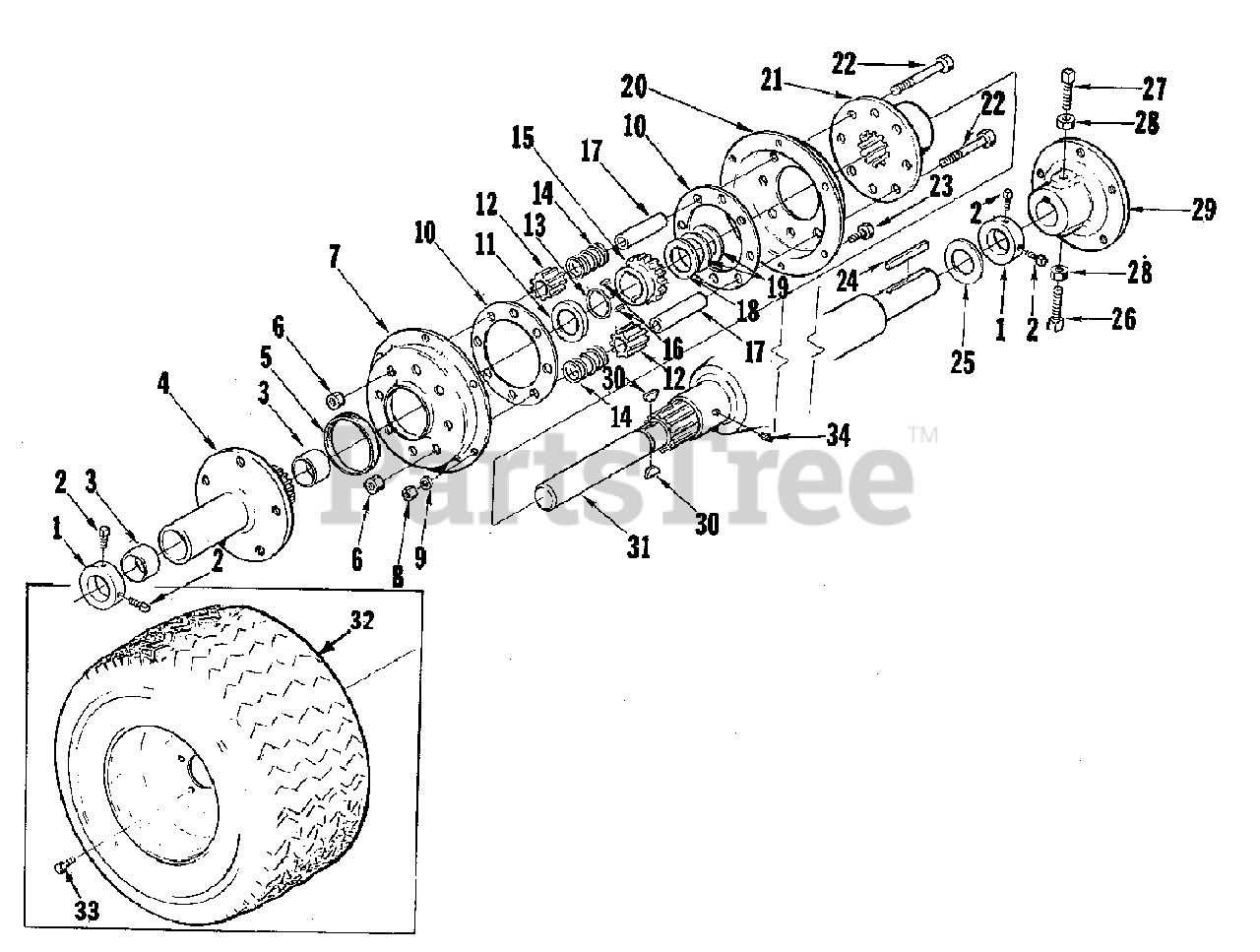

Rear Axle & Differential Group (3859I11) Parts Diagram

  • Title

1

Simplicity LM-01540-65

COLLAR, Axle

$

$

Not available

2

Simplicity LM-09287-09

SETSCREW, Square, 5/16-18 x 3/8

$

$

Not available

3

Simplicity LM-01530-68

BEARING

$

$

Not available

4

Simplicity LM-01715-19

HUB ASSEMBLY, Wheel (R.H.)

$

$

Not available

4

Simplicity LM-01769-46

HUB ASSEMBLY, Wheel (R.H.)

$

$

Not available

5

Simplicity LM-01211-90

SEAL, Differential

$

$

Not available

6

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

7

Simplicity LM-01718-54

COVER, Differential

$

$

Not available

8

Simplicity LM-09166-22

NUT, Hex Fin, 1/4-20

$

$

Not available

9

Simplicity LM-09169-64

LOCKWASHER, 1/4

$

$

Not available

10

Simplicity LM-01715-17

RING, Spacer

$

$

Not available

11

Simplicity LM-01542-77

WASHER, Axle

$

$

Not available

12

Simplicity LM-01585-79

PINION, Differential

$

$

Not available

13

Simplicity LM-01542-91

RING, Retaining

$

$

Not available

14

Simplicity LM-01620-85

SPRING

$

$

Not available

15

Simplicity LM-01642-19

GEAR, Differential

$

$

Not available

15

Simplicity LM-01770-41

GEAR, Differential

$

$

Not available

16

Simplicity LM-07255-01

KEY, Hi-Pro

$

$

Not available

16

Simplicity LM-09283-56

KEY, Hi-Pro

$

$

Not available

17

Simplicity LM-01210-83

SPINDLE, Pinion Differential

$

$

Not available

18

Simplicity LM-01715-15

WASHER, Axle

$

$

Not available

18

Simplicity LM-01715-15

WASHER, Axle

$

$

Not available

19

Simplicity LM-01540-35

WASHER, Axle

$

$

Not available

20

Simplicity LM-01718-53

COVER, Differential

$

$

Not available

21

Simplicity LM-01642-17

CARRIER, Differential

$

$

Not available

22

Simplicity LM-09219-72

SCREW, Hex Cap, 3/8-16 x 2-1/2

$

$

Not available

23

Simplicity LM-09077-27

SCREW, Hex Head Cap, 1/4-20 x 5/8

$

$

Not available

24

Simplicity LM-09058-58

KEY

$

$

Not available

24

Simplicity LM-01591-29

KEY

$

$

Not available

25

Simplicity LM-01050-50

WASHER

$

$

Not available

26

Simplicity LM-16024-03

SCREW, 3/8-16 x 1-1/2

$

$

Not available

27

Simplicity LM-16024-04

SCREW, Set

$

$

Not available

28

Simplicity LM-09174-21

NUT, Jam, Hex, 3/8-16

$

$

Not available

29

Simplicity LM-01542-08

HUB, Wheel (L.H.)

$

$

Not available

30

Simplicity LM-01571-20

KEY, Drive

$

$

Not available

31

Simplicity LM-01715-26

AXLE, Rear

$

$

Not available

32

Simplicity LM-16079-56

WHEEL & TIRE, Rear 23 x 8-1/2-12 (T-10)

$

$

Not available

32

Simplicity LM-16079-58

WHEEL & TIRE, Rear 23 x 10-1/2

$

$

Not available

33

Simplicity LM-82611-00

BOLT, Hub

$

$

Not available

34

Simplicity LM-09150-19

FITTING, Grease

$

$

Not available
