T 20 PH (UT-30117) - Homelite 20" Turbo Vac Walk-Behind Mower Mower Parts Diagram

20" Turbo Vac Walk-Behind Mower

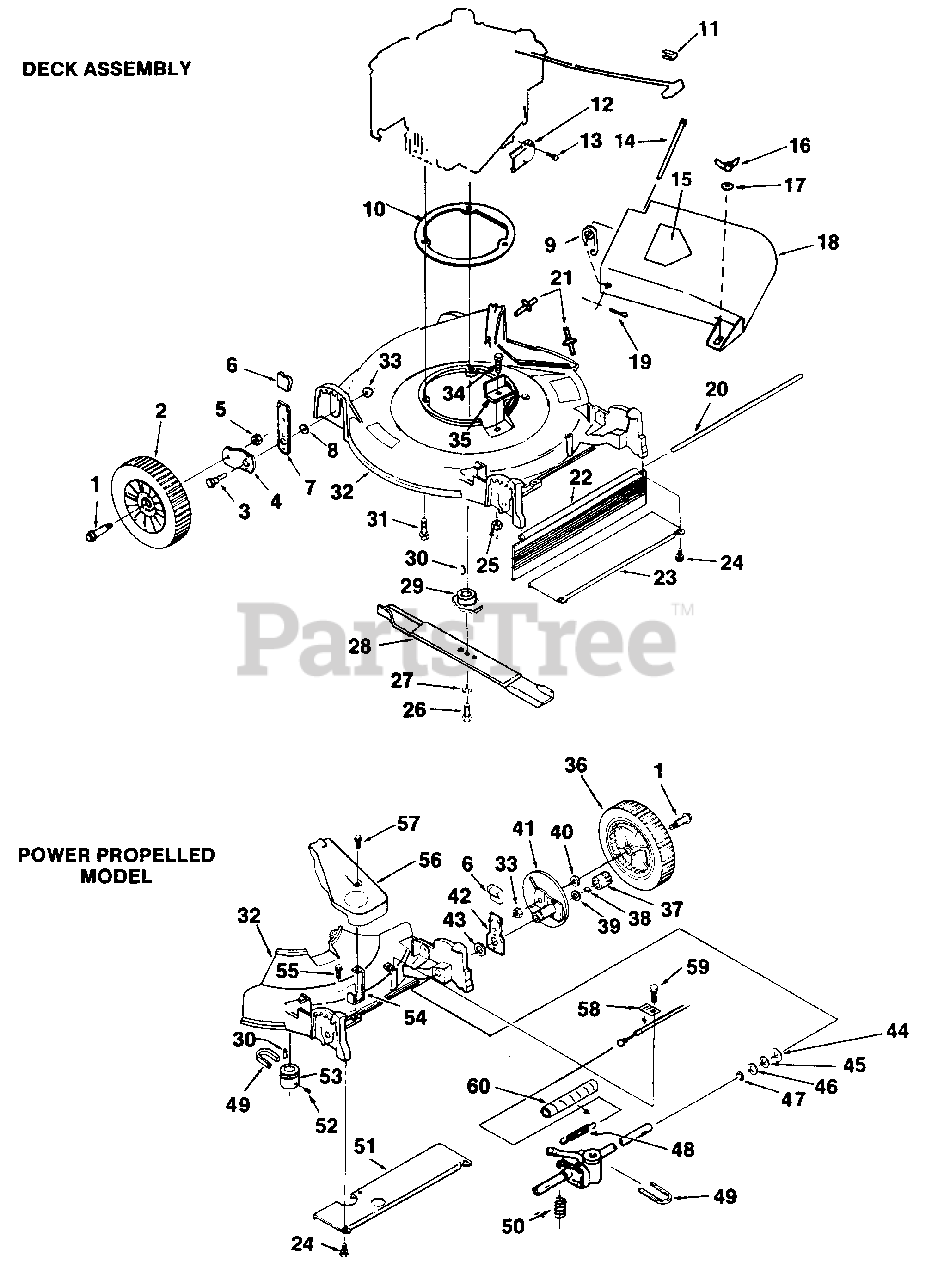

Mower Parts Diagram

  • Title

1

Homelite JA992138

BOLT- Axle (3/8-16)
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. (5/16-18) Height Adjusting

$

$

Not available

4

Homelite JA991287

ARM- Wheel adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- Hex (3/8-24) Centerlock
(Superseded to JA993711)

$

$

Not available

6

Homelite JA336623

KNOB- Index spring
(Superseded to UP06697)

$

$

Not available

7

Homelite JA990087

INDEXING SPRING & PIN ASSY.
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

8

Homelite JA358362

SPACER- Height adjusting

$

$

Not available

9

Homelite JA375276

SPRING

$

$

Currently unavailable

10

Homelite JA994311

RING- Engine

$

$

Not available

11

Homelite JA990567

ROPE STOP

$

$

Not available

12

Homelite JA359256

DEFLECTOR- Muffler

$

$

Not available

13

Homelite JA408880

SCREW- Hex hd. (8-32 x 3/8")

$

$

Currently unavailable

14

Homelite JA992958

PIN- Hinge

$

$

Currently unavailable

15

Homelite JA339460

LABEL- Warning

$

$

Not available

16

Homelite JA992974

NUT- Wing WC-040

$

$

Not available

17

Homelite JA453023

WASHER- Flat 1/4" plain
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite JA992998

COVER- Discharge
(Superseded to UP06680)

Note: Includes No. 15

$

$

Currently unavailable

19

Homelite JA460014

PIN- Cotter (3/32 x 3/4")

$

$

Not available

20

Homelite JA375391

ROD- ZP Drag flap

$

$

Currently unavailable

21

Homelite JA992964

STUD

$

$

Not available

22

Homelite JA339238

FLAP- Drag
(Superseded to UP06701)

$

$

Not available

23

Homelite JA994308

COVER- Rea:
(Superseded to JA994309)

Note: Not used on this product

$

$

Currently unavailable

24

Homelite JA408878

SCREW- Hex washer (1/4-20 x 3/4")

$

$

Not available

25

Homelite JA444708

NUT- Hex lock (1/4-20)

$

$

Currently unavailable

26

Homelite JA403753

SCREW- Hex hd. (3/8-24 x 1

$

$

Not available

27

Homelite JA446142

WASHER- Lock 3/8" hvy.

$

$

Not available

28

Homelite JA392422

BAR CUTTER
(Superseded to JA993820)

$

$

Not available

29

Homelite JA991821

ADAPTOR- Blade

$35.99

$

Usually ships in 3-7 days

0

30

Homelite JA463029

KEY- Woodruff (5/8 x 3/16")

$

$

Not available

31

Homelite JA408876

SCREW- Hex hd. (3/8-16 x 1 1/2")

$

$

Not available

32

Homelite JA992995

DECK

$

$

Currently unavailable

33

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

34

Homelite JA400104

SCREW- Hex hd. (1/4-20 x 1/2")
(Superseded to UP03379)

Note: Not used on this product

$

$

Not available

35

Homelite JA991286

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

36

Homelite JA993975

WHEEL & TIRE ASSY.

$

$

Not available

37

Homelite JA204244

PINION- R.H.

$

$

Not available

Homelite JA204245

PINION- L.H.

$

$

Currently unavailable

38

Homelite JA313659

PAWL

$

$

Not available

39

Homelite JA351077

WASHER

$

$

Not available

40

Homelite JA359500

WASHER

$

$

Not available

41

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

$

$

Not available

42

Homelite JA991288

INDEXING SPRING & PIN ASSY.

$

$

Not available

43

Homelite JA359141

SPACER- Rear height adj.

$

$

Not available

44

Homelite JA454037

WASHER

$

$

Not available

45

Homelite JA353406

WASHER

$

$

Not available

46

Homelite JA328147

WASHER- (Shim)

$

$

Not available

47

Homelite JA458451

RING- Eaton

$3.49

$

Usually ships in 3-7 days

0

48

Homelite JA375748

SPRING- Extension

$

$

Not available

49

Homelite JA390165

BELT- Drive
(Superseded to UP07148)

$

$

Not available

50

Homelite JA359266

SPRING- Compression

$

$

Not available

51

Homelite JA994309

COVER- Rear

$

$

Currently unavailable

52

Homelite JA422505

SCREW- Set (1/4-20 x 3/8")

$

$

Not available

53

Homelite JA993007

PULLEY- Drive

$

$

Not available

54

Homelite JA994325

BRACKET- Gear box cover

$

$

Currently unavailable

55

Homelite JA408865

SCREW- Sems thd. (1/4-20 x 9/16")

$

$

Currently unavailable

56

Homelite JA994312

COVER- Drive

$

$

Currently unavailable

57

Homelite JA408879

SCREW- Hex hd. (1/4-20 x 3/4")

$

$

Currently unavailable

58

Homelite JA991065

CLAMP- Cable

$

$

Not available

59

Homelite JA409908

SCREW-Hex hd. (1/4-20 x 5/8")

$4.49

$

Usually ships in 3-7 days

0

60

Homelite JA990641

COVER- Spring

$

$

Currently unavailable
