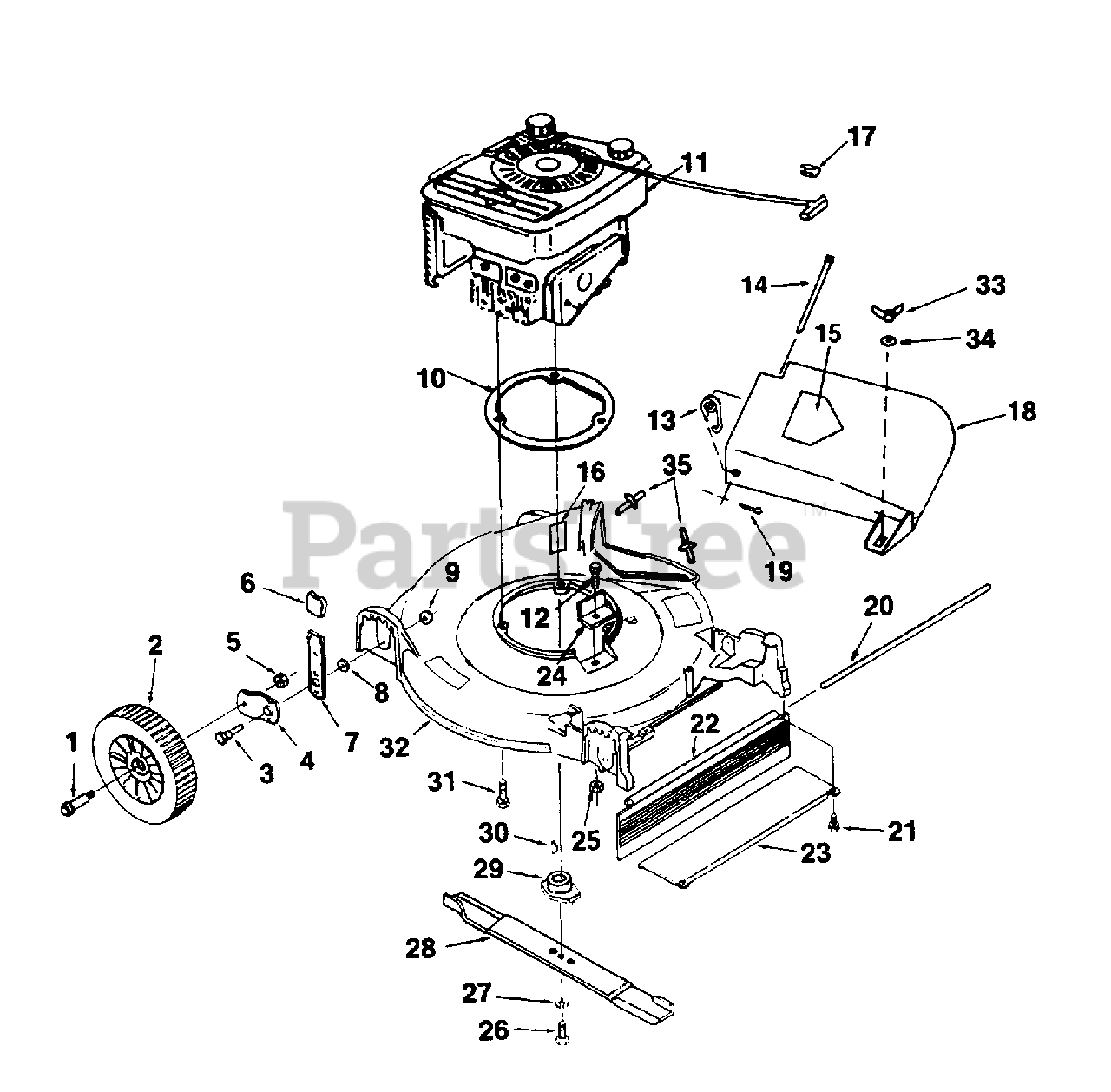

T 202 (UT-30088) - Homelite 20" Turbo Vac Walk-Behind Mower Mower Parts Diagram

20" Turbo Vac Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA992138

BOLT- Axle (3/8-16)
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA991782

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. (5/16-18)

$

$

Not available

4

Homelite JA991287

ARM- Wheel adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- Hex (3/8-16)
(Superseded to JA993711)

$

$

Not available

6

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

7

Homelite JA990087

INDEXING SPRING & PIN ASSY.
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

8

Homelite JA358362

SPACER

$

$

Not available

9

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

10

Homelite JA991878

RING- Engine
(Superseded to JA994311)

$

$

Not available

11

Homelite JA992702

ENGINE- 2 Cycle 4 H.P.

$

$

Currently unavailable

12

Homelite JA400104

SCREW- Hex hd. (1/4-20 x 1/2")
(Superseded to UP03379)

$

$

Not available

13

Homelite JA375276

SPRING

$

$

Currently unavailable

14

Homelite JA992958

PIN- Hinge

$

$

Currently unavailable

15

Homelite JA339460

LABEL- Warning

$

$

Not available

16

Homelite 00305

DECAL- Gasohol

$

$

Currently unavailable

17

Homelite JA990567

STOP- Rope

$

$

Not available

18

Homelite JA992998

COVER- Discharge
(Superseded to UP06680)

Note: (Incl.#15)

$

$

Currently unavailable

19

Homelite JA460014

PIN- Cotter (3/32 x 3/4")

$

$

Not available

20

Homelite JA375391

ROD- Drag flap

$

$

Currently unavailable

21

Homelite JA408878

SCREW- Hex hd. (1/4-20 x 3/4")

$

$

Not available

22

Homelite JA339238

FLAP- Drag
(Superseded to UP06701)

$

$

Not available

23

Homelite JA339239

COVER- Rear
(Superseded to JA994309)

$

$

Currently unavailable

24

Homelite JA991286

COVER- Belt opening

$

$

Currently unavailable

25

Homelite JA444708

NUT- Hex lock (1/4-20)

$

$

Currently unavailable

26

Homelite JA403753

SCREW- Hex hd. (3/8-24 x 1 1/4")

$

$

Not available

27

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

28

Homelite JA392422

BLADE
(Superseded to JA993820)

$23.99

$

Usually ships in 3-7 days

0

29

Homelite JA991821

ADAPTOR- Blade

$17.99

$

Usually ships in 3-7 days

0

30

Homelite JA463029

KEY- Woodruff

$

$

Not available

31

Homelite JA408876

SCREW- Hex hd. (3/8-16 x 1 1/2")

$

$

Not available

32

Homelite JA992993

DECK- Push

$

$

Currently unavailable

33

Homelite JA992974

NUT- Wing

$

$

Not available

34

Homelite JA453023

WASHER- Flat
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite JA992964

STUD

$

$

Not available
