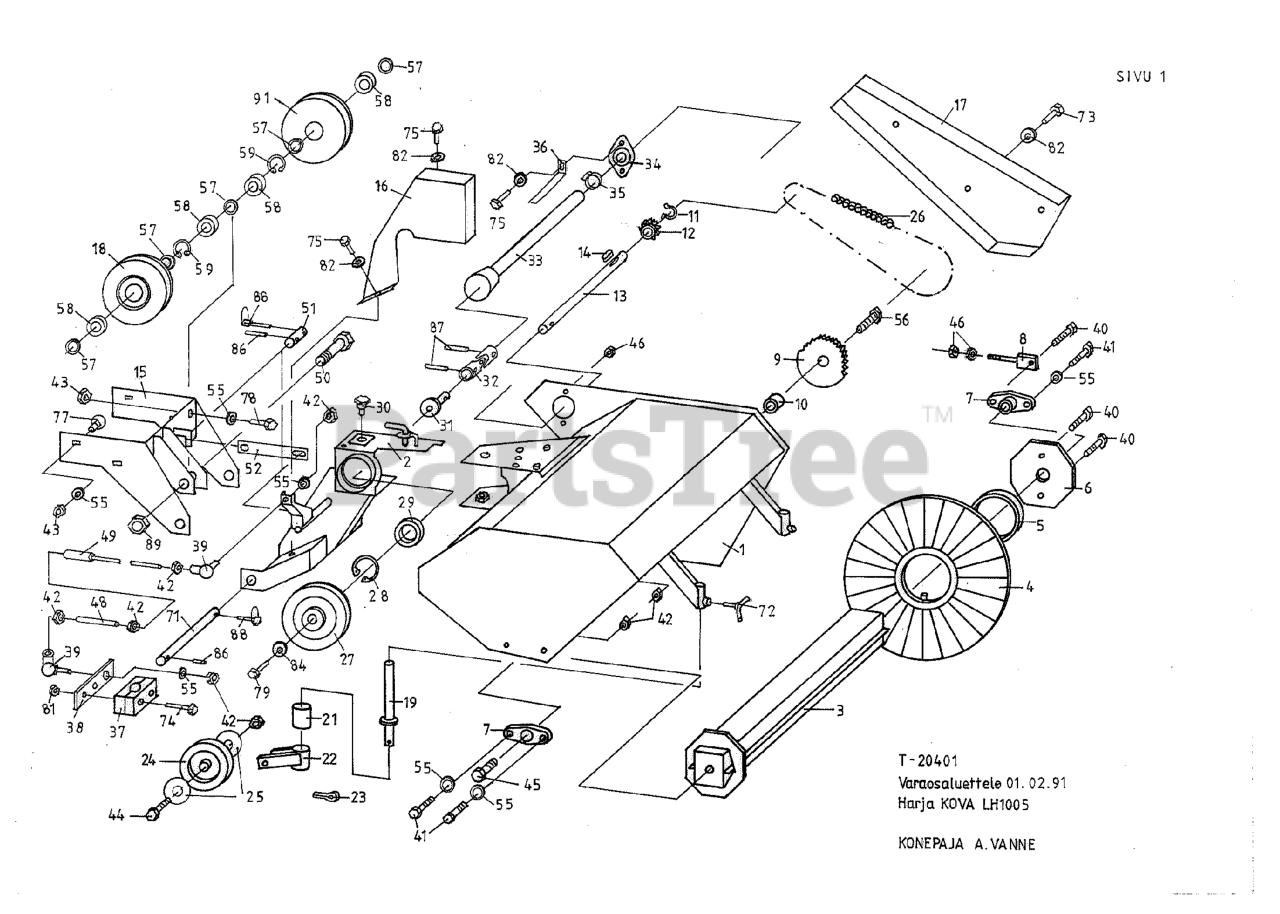

T-20401 - Husqvarna Snow Blade (2010-01) PRODUCT COMPLETE Parts Diagram

Snow Blade

PRODUCT COMPLETE Parts Diagram

  • Title

76

Husqvarna 535415045

SCREW

$

$

Not available

26

Husqvarna 531005111

CHAIN

$

$

Not available

84

Husqvarna 531021185

WASHER

$

$

Not available

33

Husqvarna 531005180

PROTECTOR

$

$

Not available

25

Husqvarna 531005173

PROTECTOR

$

$

Not available

13

Husqvarna 531005161

SHAFT

$

$

Not available

51

Husqvarna 531005192

SHAFT

$

$

Not available

32

Husqvarna 531005179

JOINT

$

$

Not available

10

Husqvarna 531005159

SPACER

$

$

Not available

56

Husqvarna 531005191

SCREW

$

$

Not available

79

Husqvarna 531021149

SCREW

$

$

Not available

77

Husqvarna 531021172

SCREW

$

$

Not available

29

Husqvarna 531005112

BEARING

$

$

Not available

41

Husqvarna 531021128

SCREW

$

$

Not available

73

Husqvarna 531021144

SCREW

$

$

Not available

52

Husqvarna 531021158

BRACKET

$

$

Not available

72

Husqvarna 531005212

SCREW

$

$

Not available

89

Husqvarna 531005218

NUT

$

$

Not available

62

Husqvarna 531005104

BELT

$

$

Not available

27

Husqvarna 531005175

PULLEY

$

$

Not available

54

Husqvarna 531021160

PULLEY

$

$

Not available

12

Husqvarna 531005160

CHAINWHEEL

$

$

Not available

64

Husqvarna 531021162

ARM

$

$

Not available

40

Husqvarna 531021127

SCREW

$

$

Not available

50

Husqvarna 531005191

SCREW

$

$

Not available

90

Husqvarna 531021127

SCREW

$

$

Not available

14

Husqvarna 531005220

KEY

$

$

Not available

88

Husqvarna 531005217

PIN

$

$

Not available

42

Husqvarna 531021129

NUT

$

$

Not available

5

Husqvarna 531005154

WASHER BRUSHSEGMENT

$

$

Not available

16

Husqvarna 531021153

PROTECTOR

$

$

Not available

8

Husqvarna 531005157

CHAINTIGHTNER

$

$

Not available

65

Husqvarna 531021177

ARM

$

$

Not available

55

Husqvarna 531021137

WASHER

$

$

Not available

36

Husqvarna 531005183

SUPPORT

$

$

Not available

91

Husqvarna 531005168

PULLEY

$

$

Not available

24

Husqvarna 531005172

SUPPORT

$

$

Not available

45

Husqvarna 531005187

SCREW

$

$

Not available

9

Husqvarna 531005158

CHAINWHEEL

$

$

Not available

53

Husqvarna 531021159

PULLEY

$

$

Not available

46

Husqvarna 531021132

NUT

$

$

Not available

17

Husqvarna 531005165

CHAINPROTECTOR

$

$

Not available

87

Husqvarna 531021170

PIN

$

$

Not available

11

Husqvarna 531021151

CIRCLIP

$

$

Not available

3

Husqvarna 531005152

SHAFT

$

$

Not available

68

Husqvarna 531021166

SHAFT

$

$

Not available

57

Husqvarna 531005197

SPACER

$

$

Not available

67

Husqvarna 531005203

SPRING

$

$

Not available

18

Husqvarna 531005166

PULLEY

$

$

Not available

92

Husqvarna 531021171

BELT GUIDE

$

$

Not available

30

Husqvarna 531005177

SCREW

$

$

Not available

34

Husqvarna 531005181

BEARING

$

$

Not available

61

Husqvarna 531005101

BELT

$

$

Not available

70

Husqvarna 531021179

BELT TIGHTENER

$

$

Not available

22

Husqvarna 531005170

BRACKET

$

$

Not available

44

Husqvarna 531021131

SCREW

$

$

Not available

6

Husqvarna 531005155

FLANGE

$

$

Not available

59

Husqvarna 531005198

SPACER

$

$

Not available

19

Husqvarna 531005167

SHAFT

$

$

Not available

23

Husqvarna 531005171

PIN

$

$

Not available

43

Husqvarna 531021130

NUT

$

$

Not available

82

Husqvarna 531021184

WASHER

$

$

Not available

66

Husqvarna 531021164

COLLAR

$

$

Not available

60

Husqvarna 531005199

PULLEY

$

$

Not available

1

Husqvarna 531005150

FRAME

$

$

Not available

81

Husqvarna 531021198

NUT

$

$

Not available

63

Husqvarna 531021161

COLLAR

$

$

Not available

86

Husqvarna 531005216

PIN

$

$

Not available

47

Husqvarna 531021219

NUT

$2.99

$

Usually ships in 3-10 days

0

28

Husqvarna 531005176

RETAINING RING

$

$

Not available

4

Husqvarna 531005153

BRUSHSEGMENT

$

$

Not available

7

Husqvarna 531005108

BEARING UCFL 204

$

$

Not available

69

Husqvarna 531005204

SPRING

$

$

Not available

83

Husqvarna 531005215

SPACER

$

$

Not available

35

Husqvarna 531005182

CLAMP

$

$

Not available

78

Husqvarna 531021173

SCREW

$

$

Not available

80

Husqvarna 531021131

SCREW

$

$

Not available

85

Husqvarna 531021169

SCREW

$

$

Not available

58

Husqvarna 531021138

BEARING

$

$

Not available

75

Husqvarna 531021146

SCREW

$

$

Not available

21

Husqvarna 531005169

BUSHING

$

$

Not available

71

Husqvarna 531021168

SHAFT

$

$

Not available

20

Husqvarna 531021176

FRAME BRUSH

$

$

Not available

31

Husqvarna 531005178

PIN

$

$

Not available
