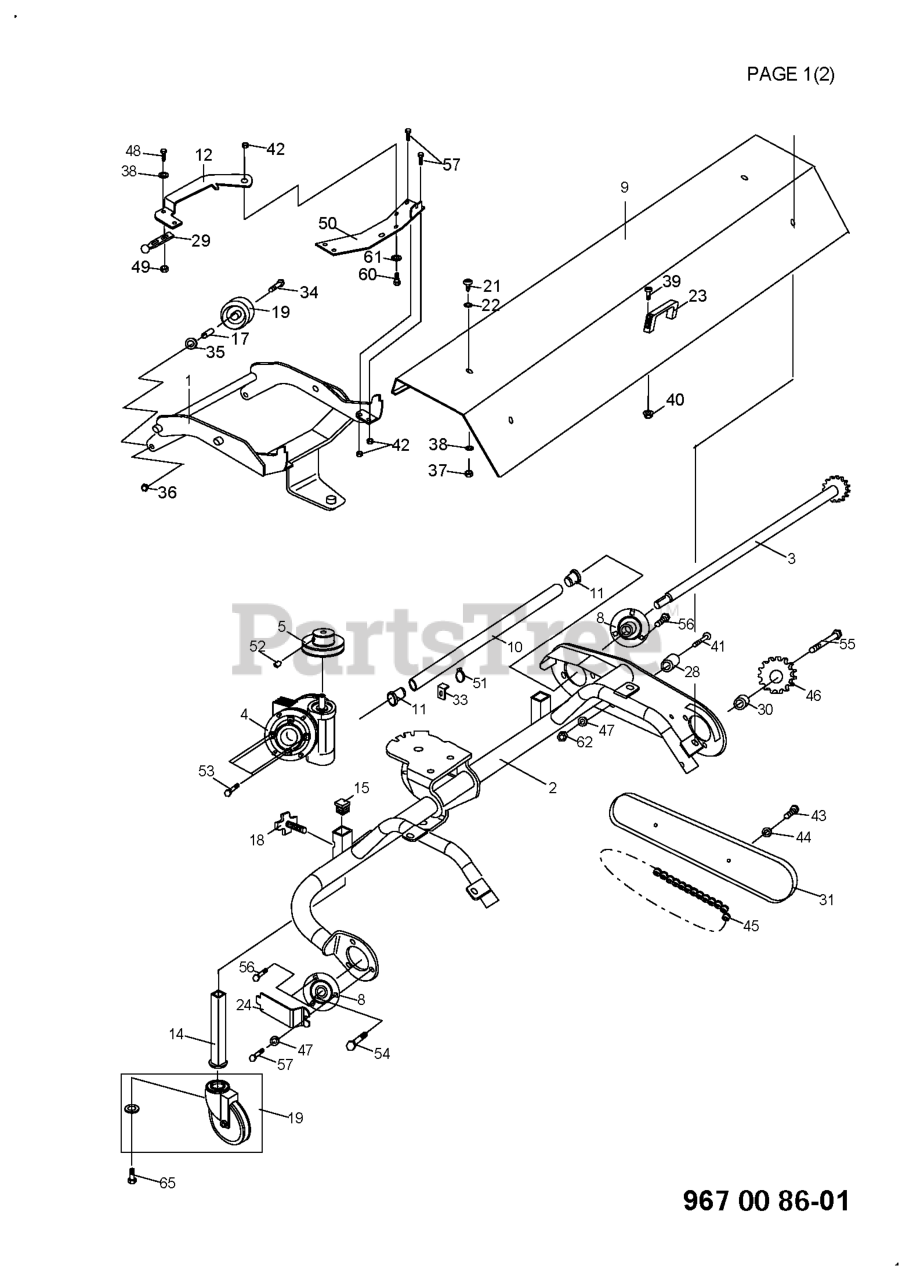

T-20442 - Husqvarna Broom/Brush Attachment (2012) PRODUCT COMPLETE Parts Diagram

Broom/Brush Attachment

PRODUCT COMPLETE Parts Diagram

  • Title

17

Husqvarna 576489201

COLLAR
(Superseded to 505450301)

$

$

Not available

48

Husqvarna 531021299

SCREW

$

$

Not available

56

Husqvarna 531021146

SCREW

$

$

Not available

19

Husqvarna 576907401

SUPPORT WHEEL

$

$

Not available

2

Husqvarna 579191401

FRAME

$

$

Not available

39

Husqvarna 576919501

SOCKET

$

$

Not available

43

Husqvarna 531021144

SCREW

$

$

Not available

21

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

8

Husqvarna 531005259

BEARING

$

$

Not available

22

Husqvarna 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

11

Husqvarna 576908001

BEARING

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 531005315

PROTECTOR

$

$

Not available

57

Husqvarna 535415045

SCREW

$

$

Not available

35

Husqvarna 576491701

WASHER

$

$

Not available

60

Husqvarna 576923101

SCREW

$

$

Not available

55

Husqvarna 576920201

SCREW

$

$

Not available

63

Husqvarna 531021234

DECAL

$

$

Not available

42

Husqvarna 531021219

NUT

$2.99

$

Usually ships in 3-10 days

0

40

Husqvarna 576919601

NUT LOCKING

$

$

Not available

12

Husqvarna 576907101

PLATE

$

$

Not available

28

Husqvarna 576906401

CHAIN ADJUSTER

$

$

Not available

65

Husqvarna 531021173

SCREW

$

$

Not available

29

Husqvarna 506599601

Support Strap

$

$

Not available

49

Husqvarna 531021198

NUT

$

$

Not available

1

Husqvarna 576905901

FRAME BRACKET

$

$

Not available

46

Husqvarna 576919901

WHEEL

$

$

Not available

23

Husqvarna 576907601

GRIP

$

$

Not available

33

Husqvarna 576919401

SUPPORT

$

$

Not available

62

Husqvarna 531021226

NUT

$

$

Not available

53

Husqvarna 535415036

SCREW

$

$

Not available

4

Husqvarna 576906201

WORM GEAR

$682.99

$

Usually ships in 3-10 days

0

24

Husqvarna 576907701

COVER

$

$

Not available

18

Husqvarna 535415024

WINGSCREW

$

$

Not available

47

Husqvarna 531021216

WASHER

$

$

Not available

45

Husqvarna 576919801

CHAIN

$

$

Not available

52

Husqvarna 531021169

SCREW

$

$

Not available

44

Husqvarna 531021184

WASHER

$

$

Not available

50

Husqvarna 576920101

PLATE

$

$

Not available

36

Husqvarna 531021130

NUT

$

$

Not available

30

Husqvarna 576906501

COLLAR

$

$

Not available

31

Husqvarna 576906601

COVER

$

$

Not available

14

Husqvarna 576907301

TUBE

$

$

Not available

41

Husqvarna 576919701

SCREW

$

$

Not available

9

Husqvarna 579191701

GUARD

$

$

Not available

37

Husqvarna 577607801

NUT

$

$

Not available

51

Husqvarna 531005182

CLAMP

$

$

Not available

61

Husqvarna 576923201

WASHER

$

$

Not available

3

Husqvarna 579191501

SHAFT

$136.99

$

Usually ships in 3-10 days

0

38

Husqvarna 531021197

WASHER

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576906701

PULLEY

$

$

Not available

10

Husqvarna 579191901

GUARD

$

$

Not available

16

Husqvarna 576489401

SUPPORT WHEEL
(Superseded to 505441601)

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 531021239

SCREW

$

$

Not available
