T 220 - Shindaiwa String Trimmer Outer Tube / Throttle Parts Diagram

String Trimmer

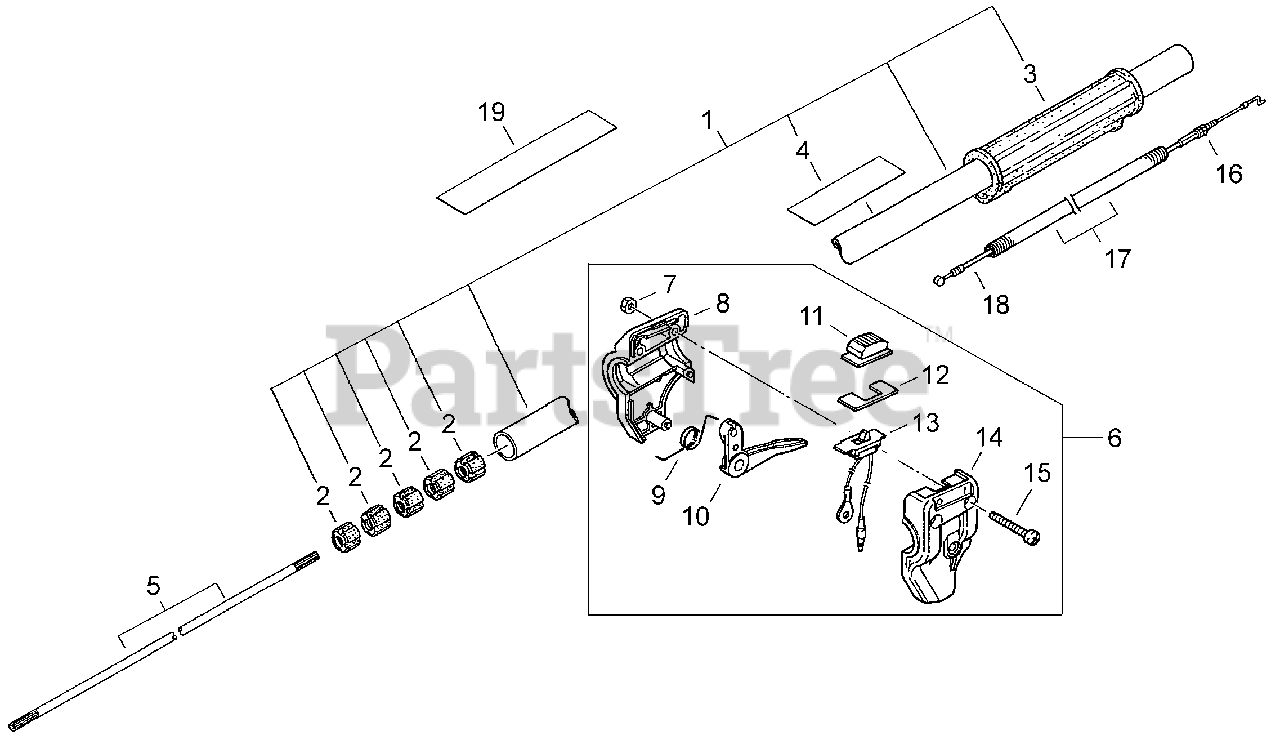

Outer Tube / Throttle Parts Diagram

  • Title

9-1

Echo 80030

MAIN PIPE ASSY

$87.99

$

Usually ships in 2-4 days

0

2

Echo 22410-12120

BUSHING
(Superseded to C501000030)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 22036-12612

GRIP
(Superseded to C412000300)

$11.99

$

In Stock, only 2 left!

0

4

Echo 19402-00157

LABEL, CAUTION

$1.49

$

In Stock, Qty 11

0

5

Echo 22070-12410

MAINSHAFT
(Superseded to C504000500)

$20.99

$

In Stock, only 2 left!

0

6

Echo 67000-62160

THROTTLE CONTROL ASSY
(Superseded to C044000360)

$

$

Not available

7

Echo 01501-05031

NUT M5
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 8

0

8

Echo 22410-14312

CONTROL HANDLE - RIGHT
(Superseded to C401000080)

$6.99

$

In Stock, Qty 5

0

9

Echo 22410-14331

SPRING, RETURN
(Superseded to V452000440)

$1.99

$

In Stock, Qty 8

0

10

Echo 22410-14321

TRIGGER, THROTTLE
(Superseded to C450000460)

$8.49

$

In Stock, Qty 12

0

11

Echo 22420-12930

KNOB, SWITCH
(Superseded to A444000090)

$2.99

$

In Stock, only 4 left!

0

12

Echo 22420-12940

PLATE, SWITCH
(Superseded to X510000500)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 67000-62310

SWITCH, ON-OFF
(Superseded to A440001380)

$23.99

$

In Stock, only 2 left!

0

14

Echo 22410-14341

CONTROL HANDLE - LEFT
(Superseded to C401000090)

$7.49

$

In Stock, Qty 6

0

15

Echo 11206-05300

SCREW M5×30
(Superseded to 9157405030)

$1.49

$

In Stock, Qty 10

0

16

Echo 01501-06041

NUT M6
(Superseded to 90050200006)

$0.99

$

In Stock, Qty 12

0

17

Echo 70229-83140

TUBE, FLEXIBLE
(Superseded to V475004530)

$5.99

$

In Stock, only 1 left!

0

18

Echo 22550-14510

CABLE, THROTTLE
(Superseded to V430002640)

$8.49

$

In Stock, Qty 6

0

19

Echo 67000-91050

LABEL, SHINDAIWA

$3.99

$

Usually ships in 2-4 days

0
