T 225 - Shindaiwa String Trimmer (SN: U95712001001 - U95712999999) FUEL SYSTEM Parts Diagram

String Trimmer

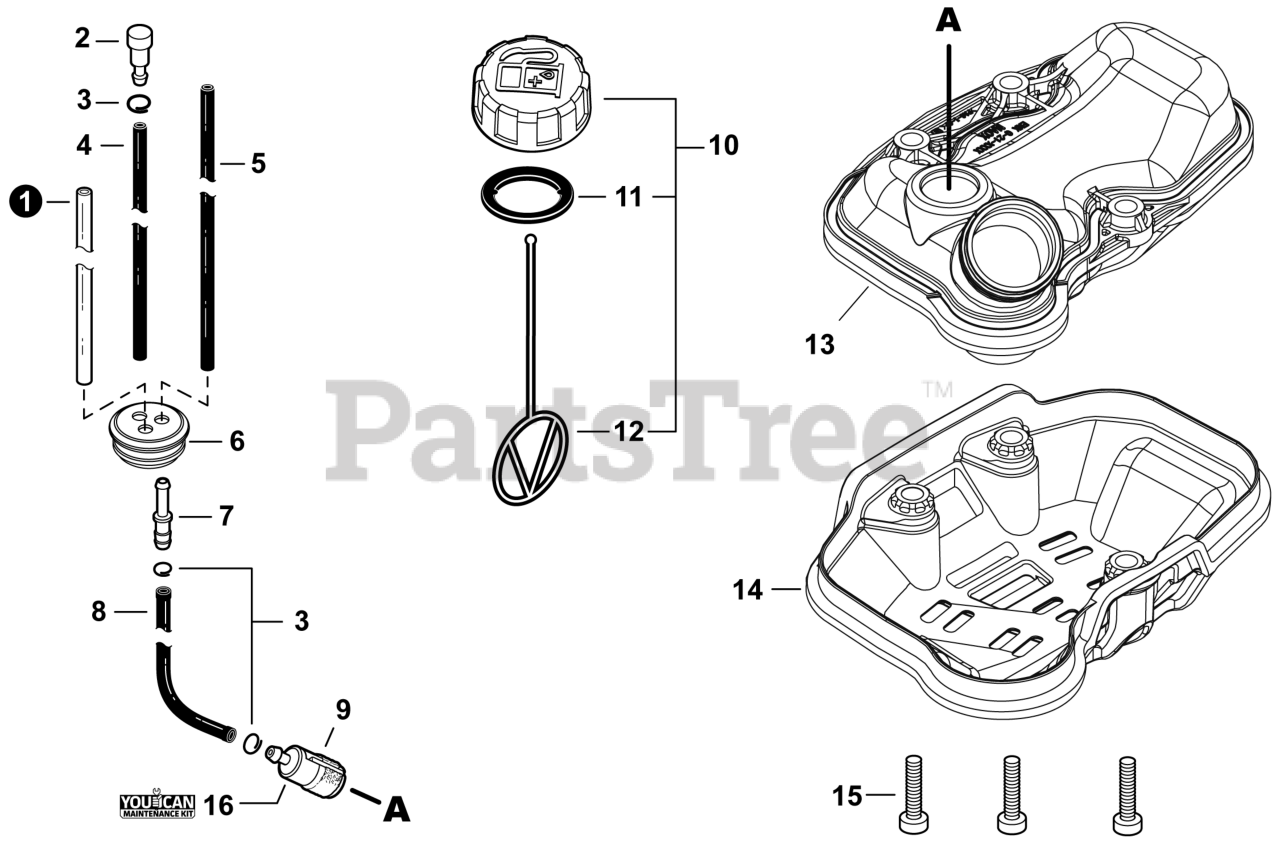

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 13201049730

PIPE, FUEL 3x6x85 YELLOW

$2.99

$

In Stock, only 3 left!

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001211

PIPE, FUEL 3x5x90 BLACK

$0.99

$

In Stock, Qty 17

0

5

Echo V471005630

PIPE, FUEL 3x5.5x78 BLACK

$3.99

$

In Stock, Qty 7

0

6

Echo 13211555931

GROMMET, FUEL

$2.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V471005840

PIPE, FUEL 3x5x105 BLACK

$1.99

$

In Stock, only 2 left!

0

9

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

10

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 11-12

$6.99

$

In Stock, Qty 16

0

11

Echo V107000150

GASKET, FUEL CAP

Note: +

$4.99

$

In Stock, Qty 14

0

12

Echo A365000060

CONNECTOR, CAP L= 123

Note: +

$1.49

$

In Stock, Qty 20+

0

13

Echo A350002830

TANK, FUEL

$12.99

$

In Stock, only 4 left!

0

14

Echo A175000410

GUARD, FUEL TANK

$5.49

$

In Stock, Qty 17

0

15

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

16

Echo 84014Y

TUNE-UP KIT - YOUCAN™

$20.99

$

Usually ships in 2-4 days

0
