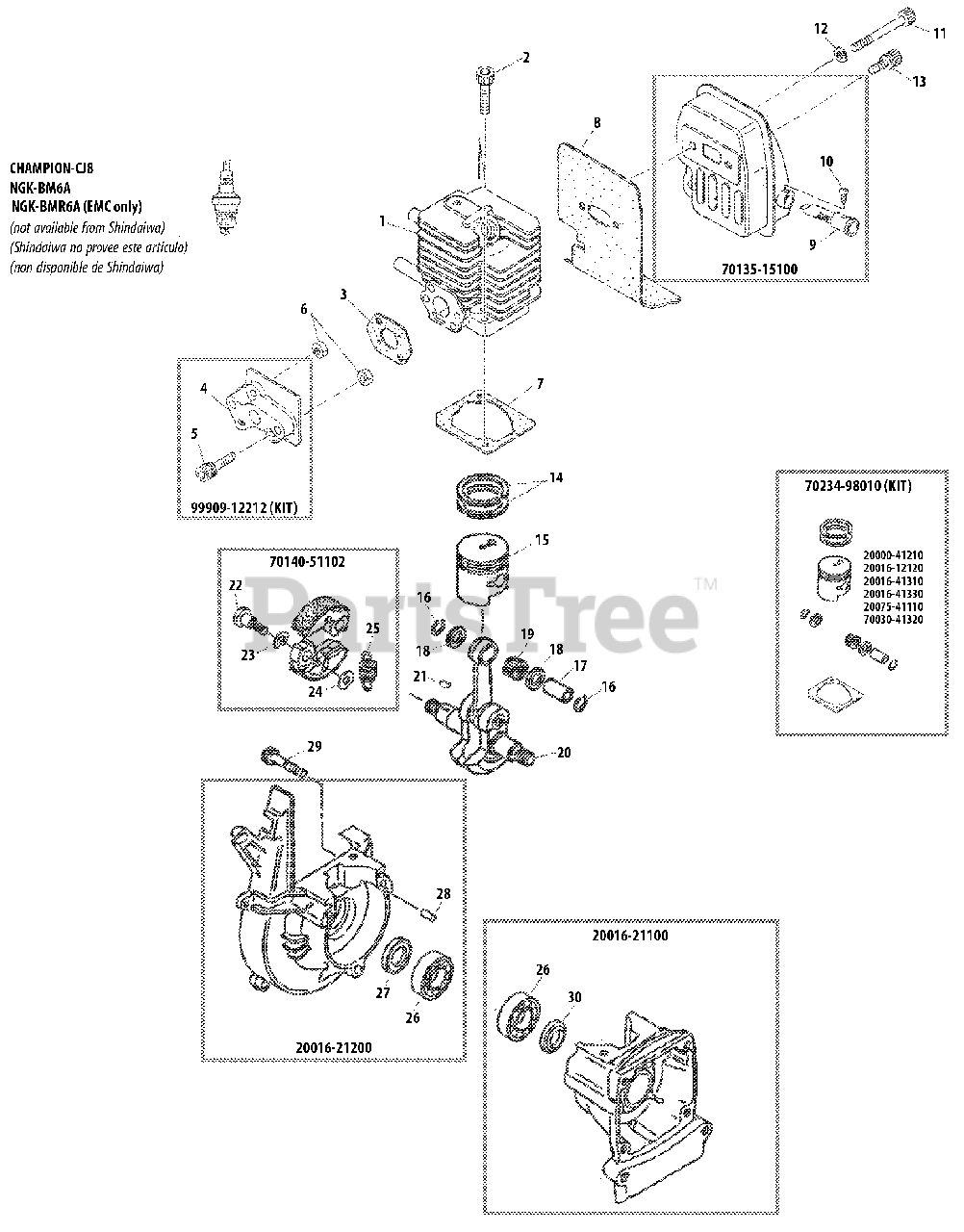

T 230 - Shindaiwa String Trimmer (Original Version) > Parts Diagrams (12) > Crankcase, Cylinder, Muffler

  • Title
20016-12110

1

CYLINDER

Part# 20016-12110 (Superseded to A130001391)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $44.75

01020-05250

2

SCREW - 5X25

Part# 01020-05250 (Superseded to 90010505025)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

20016-12222

3

GASKET

Part# 20016-12222 (Superseded to V103001200)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

99909-12212

99909-12212

INSULATOR ASSY

Part# 99909-12212

Note: IMPORTANT: PR192

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $9.47

20016-12212

4

INSULATOR

Part# 20016-12212 (Superseded to 99909-12212)

Note: IMPORTANT: PR192

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $9.47

11022-05305

5

SCREW - 5X30

Part# 11022-05305 (Superseded to V203000480)

Note: IMPORTANT: PR192

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $3.32

20011-12260

6

NUT

Part# 20011-12260 (Superseded to V263000260)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

20016-12120

7

GASKET, CYLINDER

Part# 20016-12120 (Superseded to V100000490)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $1.38

20016-15122

8

SHIELD, EXHAUST

Part# 20016-15122 (Superseded to V104001500)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $6.34

70135-15100

70135-15100

MUFFLER ASSY

Part# 70135-15100 (Superseded to A030000120)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.84

70103-15150

9

SCREEN, SPARK ARRESTOR

Part# 70103-15150 (Superseded to A310000260)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $6.65

01270-03062

10

SCREW - 3X6

Part# 01270-03062 (Superseded to 9137403006)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

01020-05500

11

SCREW - 5X50

Part# 01020-05500 (Superseded to 90010505050)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $1.07

01610-05080

12

WASHER - 5

Part# 01610-05080 (Superseded to 900600-00005)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.37

90010505012

13

SCREW - 5X12

Part# 90010505012

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

70234-98010

70234-98010

PISTON ASSY

Part# 70234-98010 (Superseded to P021030500)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $47.60

20000-41210

14

RING, PISTON

Part# 20000-41210 (Superseded to A101000400)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $5.14

20075-41110

15

PISTON

Part# 20075-41110 (Superseded to A100000730)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.57

70030-41320

16

RING, RETAINING

Part# 70030-41320 (Superseded to V580000070)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

20016-41310

17

PIN, PISTON

Part# 20016-41310 (Superseded to V606000060)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.12

20016-41340

18

WASHER, THRUST

Part# 20016-41340 (Superseded to V306000260)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.69

20016-41330

19

BEARING, NEEDLE

Part# 20016-41330 (Superseded to 81593)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $6.46

20016-12120

7

GASKET, CYLINDER

Part# 20016-12120 (Superseded to V100000490)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $1.38

20016-42002

20

CRANKSHAFT ASSY

Part# 20016-42002 (Superseded to P021048010)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.81

02403-03100

21

KEY - 3X10

Part# 02403-03100 (Superseded to 9311503010)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.69

70140-51102

70140-51102

CLUTCH ASSY

Part# 70140-51102 (Superseded to A056000260)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $27.29

20087-51210

22

BOLT, CLUTCH

Part# 20087-51210 (Superseded to A557000040)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.12

20087-51231

23

WASHER - SPRING

Part# 20087-51231 (Superseded to V346000040)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

22100-71430

24

WASHER - 6

Part# 22100-71430 (Superseded to V304000150)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $0.75

70140-51220

25

SPRING, CLUTCH

Part# 70140-51220 (Superseded to A566000201)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.01

20016-21200

20016-21200

CRANKCASE ASSY - FRONT

Part# 20016-21200 (Superseded to P021017920)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.30

12900-60010

26

BEARING, BALL - 6001C3

Part# 12900-60010 (Superseded to V592000310)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $4.64

20000-21211

27

SEAL, OIL - 12

Part# 20000-21211 (Superseded to V505000080)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.33

12492-40080

28

PIN - LOCATING

Part# 12492-40080 (Superseded to 90033040080)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.75

01020-05250

29

SCREW - 5X25

Part# 01020-05250 (Superseded to 90010505025)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

20016-21100

20016-21100

CRANKCASE ASSY - REAR

Part# 20016-21100 (Superseded to P021017910)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.84

12900-60010

26

BEARING, BALL - 6001C3

Part# 12900-60010 (Superseded to V592000310)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $4.64

22150-21250

30

SEAL, OIL

Part# 22150-21250 (Superseded to V505000140)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.51
