T 230 - Shindaiwa String Trimmer (Original Version)

String Trimmer

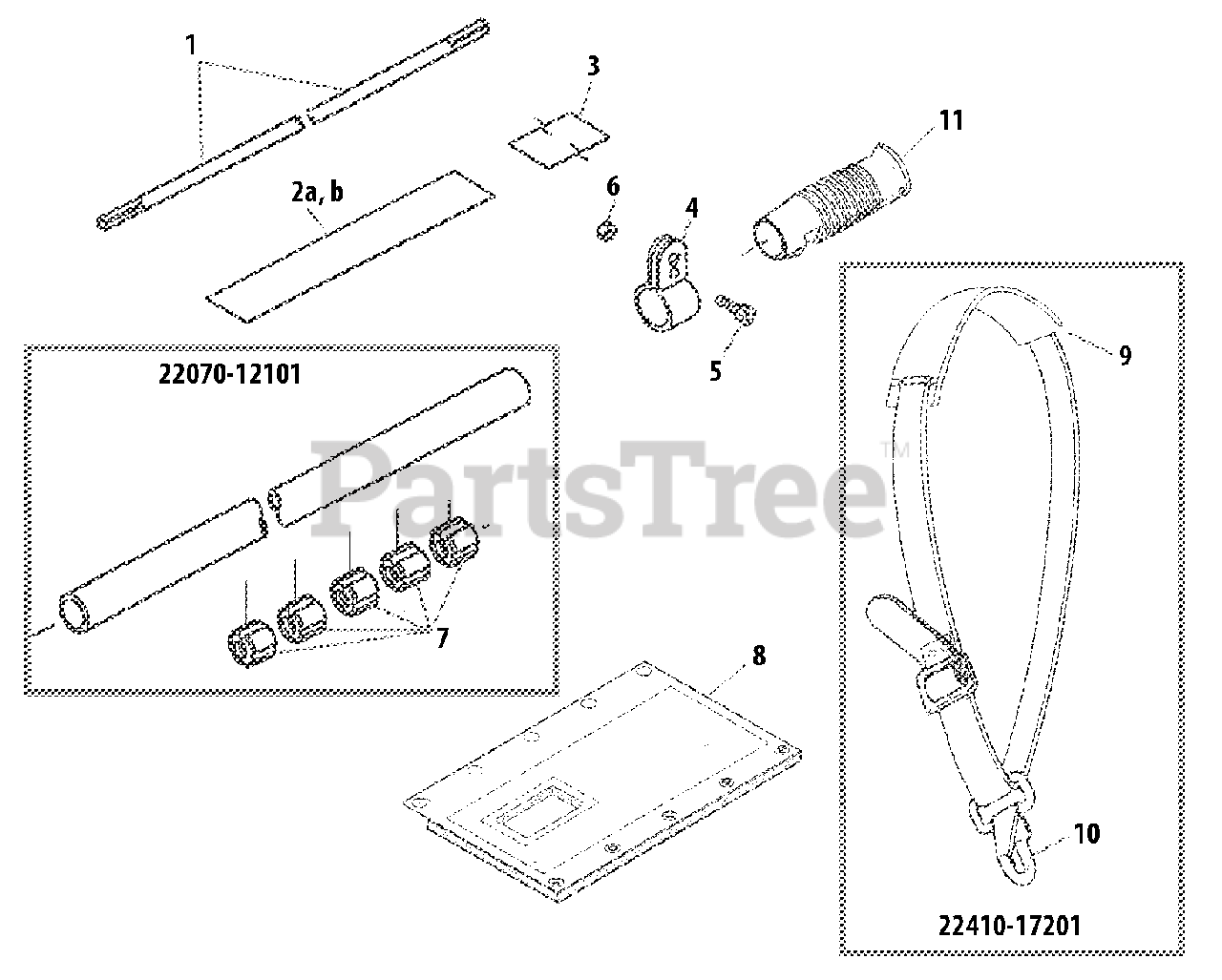

T 230 - Shindaiwa String Trimmer (Original Version) > Parts Diagrams (12) > Outer Tube

  • Title
22070-12410

1

PIPE, MAIN

Part# 22070-12410 (Superseded to C504000500)

Note: PR181

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $31.00

72460-12511

2

LABEL - MODEL

Part# 72460-12511 (Superseded to X504002780)

Note: Index number ending with (A) for blue unit, T230.

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.75

72404-12511

2

LABEL - MODEL

Part# 72404-12511 (Superseded to X504002780)

Note: Index number ending with (B) for blue unit, T230XB.

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.75

72460-12530

3

LABEL - CAUTION

Part# 72460-12530 (Superseded to X505005890)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.39

22410-12210

4

BRACKET

Part# 22410-12210 (Superseded to C670000070)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.20

90010505012

5

SCREW - 5X12

Part# 90010505012

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

90050000005

6

NUT - 5

Part# 90050000005

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.45

22070-12101

22070-12101

MAIN PIPE ASSY

Part# 22070-12101 (Superseded to C050002080)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $77.15

22035-12120

7

BUSHING

Part# 22035-12120 (Superseded to C501000010)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $3.14

22057-17110

8

SLEEVE, PROTECTOR

Part# 22057-17110 (Superseded to V420002340)

Note: C230

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.11

22410-17201

22410-17201

STRAP ASSY

Part# 22410-17201 (Superseded to C062000340)

Note: C,X230

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $10.60

22044-17230

9

PROTECTOR

Part# 22044-17230 (Superseded to C652000040)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $2.71

22000-17130

10

HOOK

Part# 22000-17130 (Superseded to C649000170)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.33

22422-12610

11

GRIP - REAR

Part# 22422-12610 (Superseded to C412000390)

Note: T230

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $9.59
