T 230 XR EMC - Shindaiwa String Trimmer (SN: 09013195 - 09095664) Main Pipe / Throttle Control Parts Diagram

String Trimmer

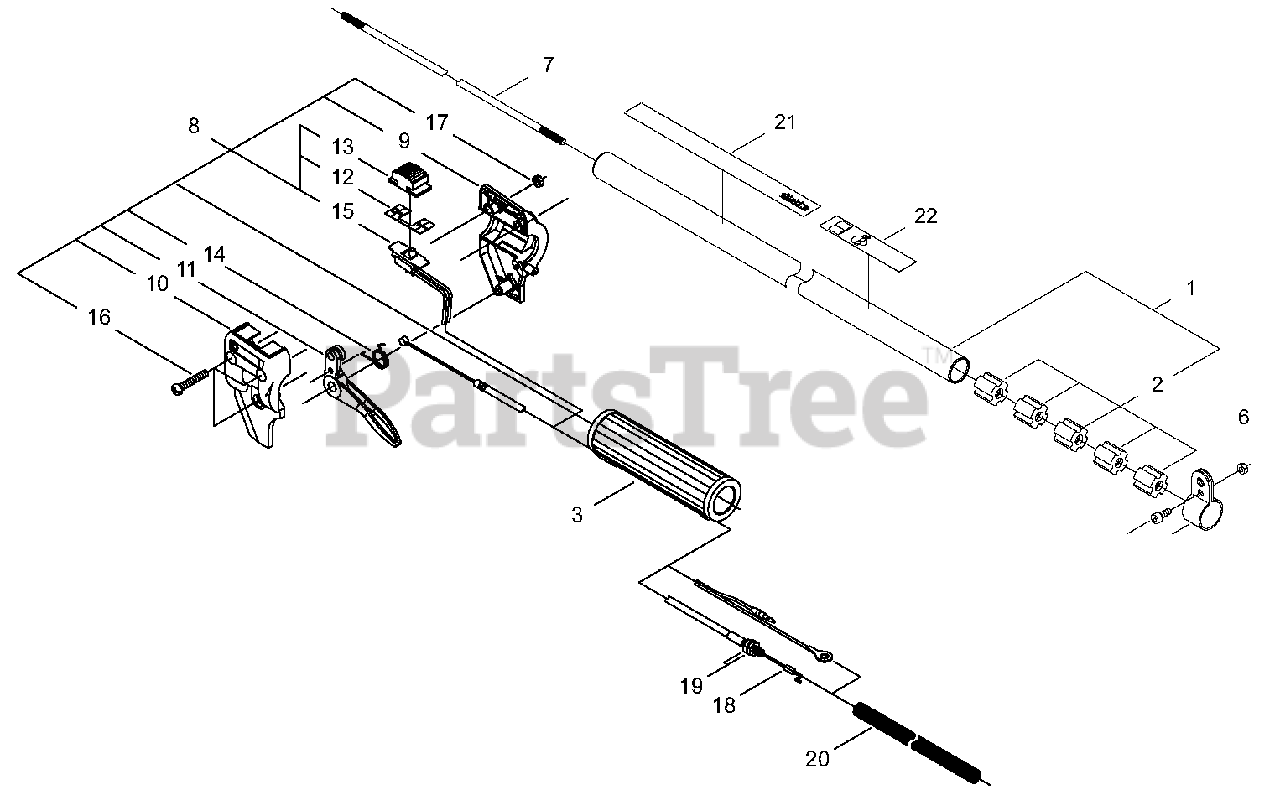

Main Pipe / Throttle Control Parts Diagram

  • Title

1

Echo C050001480

MAIN PIPE ASSY
(Superseded to C050002080)

Note: 72432-12100

$83.99

$

In Stock, only 3 left!

0

2

Echo C501000010

BUSHING

Note: 22035-12121

$4.49

$

In Stock, Qty 6

0

3

Echo C412000390

GRIP - REAR

Note: 22422-12610

$14.99

$

Usually ships in 2-4 days

0

4

Echo C670000070

BRACKET

Note: 22410-12210

$2.99

$

Usually ships in 2-4 days

0

5

Echo 90010505012

SCREW - 5X12

Note: 01020-05120

$1.49

$

In Stock, Qty 13

0

6

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

7

Echo C504000500

DRIVESHAFT - SOLID

Note: 22070-12410

$19.99

$

In Stock, Qty 13

0

8

Echo C044000540

THROTTLE CONTROL KIT

Note: 22410-14302

$30.99

$

Usually ships in 2-4 days

0

9

Echo C401000080

BRACKET - RIGHT

Note: 22410-14312

$6.49

$

In Stock, Qty 6

0

10

Echo C401000090

BRACKET - LEFT

Note: 22410-14341

$6.99

$

In Stock, Qty 7

0

11

Echo C450000460

TRIGGER, THROTTLE

Note: 22410-14321

$7.99

$

In Stock, Qty 15

0

12

Echo X510000500

PLATE, SWITCH

Note: 22420-12940

$2.99

$

Usually ships in 2-4 days

0

13

Echo A444000090

KNOB

Note: 22420-12930

$2.99

$

In Stock, only 4 left!

0

14

Echo V452000440

SPRING

Note: 22410-14331

$1.99

$

In Stock, Qty 9

0

15

Echo A440001430

SWITCH, IGNITION

Note: 22410-14351

$21.99

$

In Stock, only 4 left!

0

16

Echo 9157405030

SCREW - 5X30

Note: 11206-05300

$1.49

$

In Stock, only 2 left!

0

17

Echo 90050200005

NUT - 5

Note: 01501-05031

$0.99

$

In Stock, Qty 8

0

18

Echo V430002700

CABLE, THROTTLE

Note: 22410-14511

$6.99

$

In Stock, Qty 7

0

19

Echo 90050200006

NUT - 6

Note: 01501-06041

$0.99

$

In Stock, Qty 20+

0

20

Echo V475004520

TUBE

Note: 22422-14540

$1.99

$

In Stock, Qty 12

0

21

Echo X504002780

LABEL - SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.99

$

In Stock, Qty 11

0

22

Echo X505003170

LABEL - CAUTION

Note: 72460-12530

$

$

Currently unavailable
