T 230 XR EMC - Shindaiwa String Trimmer (SN: 36005665 - 36007144) Crankcase / Engine Cover / Fan Cover Parts Diagram

String Trimmer

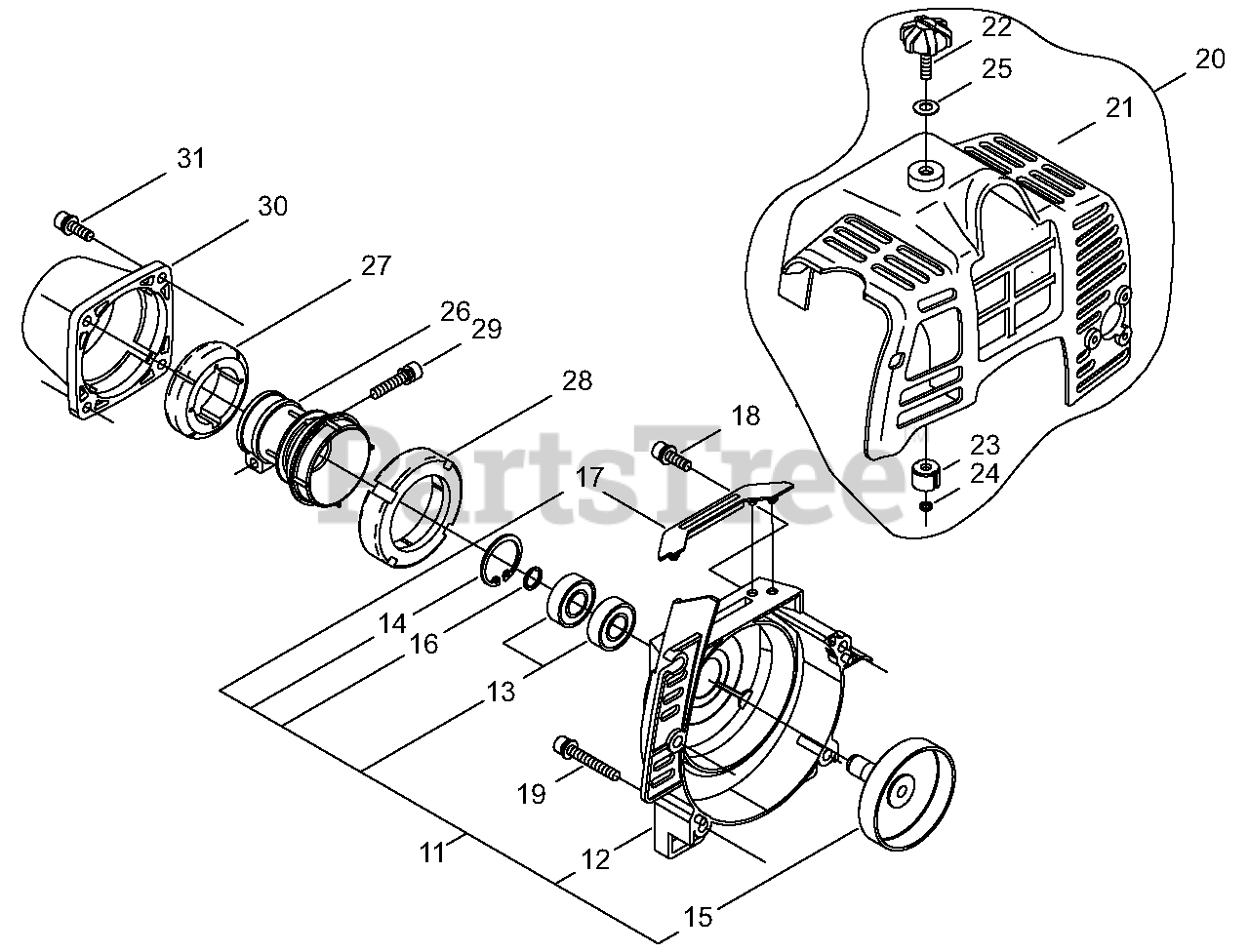

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

11

Echo P021027660

COVER ASSY, FAN
(Superseded to P021030350)

Note: Includes ITEMS 2-51

$146.99

$

Usually ships in 2-4 days

0

12

Echo A172001370

COVER, FAN

$41.99

$

Usually ships in 2-4 days

0

13

Echo 9404406000

BEARING, BALL 6000ZZ

$11.99

$

In Stock, only 2 left!

0

14

Echo 9242426000

RING, SNAP Ø26

$1.49

$

In Stock, Qty 5

0

15

Echo A556000960

DRUM, CLUTCH
(Superseded to A556001300)

$25.99

$

In Stock, only 2 left!

0

16

Echo V583000160

RING, SNAP WR10

$1.49

$

In Stock, Qty 20+

0

17

Echo V420002620

CUSHION

$2.49

$

Usually ships in 2-4 days

0

18

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

19

Echo V203000610

BOLT M5×45

$1.99

$

In Stock, Qty 6

0

20

Echo P021025190

COVER ASSY, ENGINE
(Superseded to P021025191)

$29.99

$

Usually ships in 2-4 days

0

21

Echo A160001840

COVER, ENGINE
(Superseded to A160001841)

$14.99

$

In Stock, only 2 left!

0

22

Echo V299000420

THUMBSCREW

$4.49

$

In Stock, only 2 left!

0

23

Echo V353000430

INSULATOR 5 MM

$1.99

$

In Stock, only 3 left!

0

24

Echo V490000680

CLIP

$1.49

$

In Stock, Qty 5

0

25

Echo V347000030

WASHER, CONE M6

$1.49

$

In Stock, Qty 9

0

26

Echo A575000180

CUSHION, AV

$22.99

$

In Stock, only 1 left!

0

27

Echo V420002640

CUSHION, FRONT
(Superseded to V420002641)

$4.49

$

Usually ships in 2-4 days

0

28

Echo V420002650

HOLDER, REAR CUSHION

$5.49

$

In Stock, only 2 left!

0

29

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, only 3 left!

0

30

Echo A575000460

COVER, AV CUSHION (RED)

$9.49

$

Usually ships in 2-4 days

0

31

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0
