T 230 XR EMC - Shindaiwa String Trimmer (SN: 36005665 - 36007144) Cylinder / Intake / Muffler Parts Diagram

String Trimmer

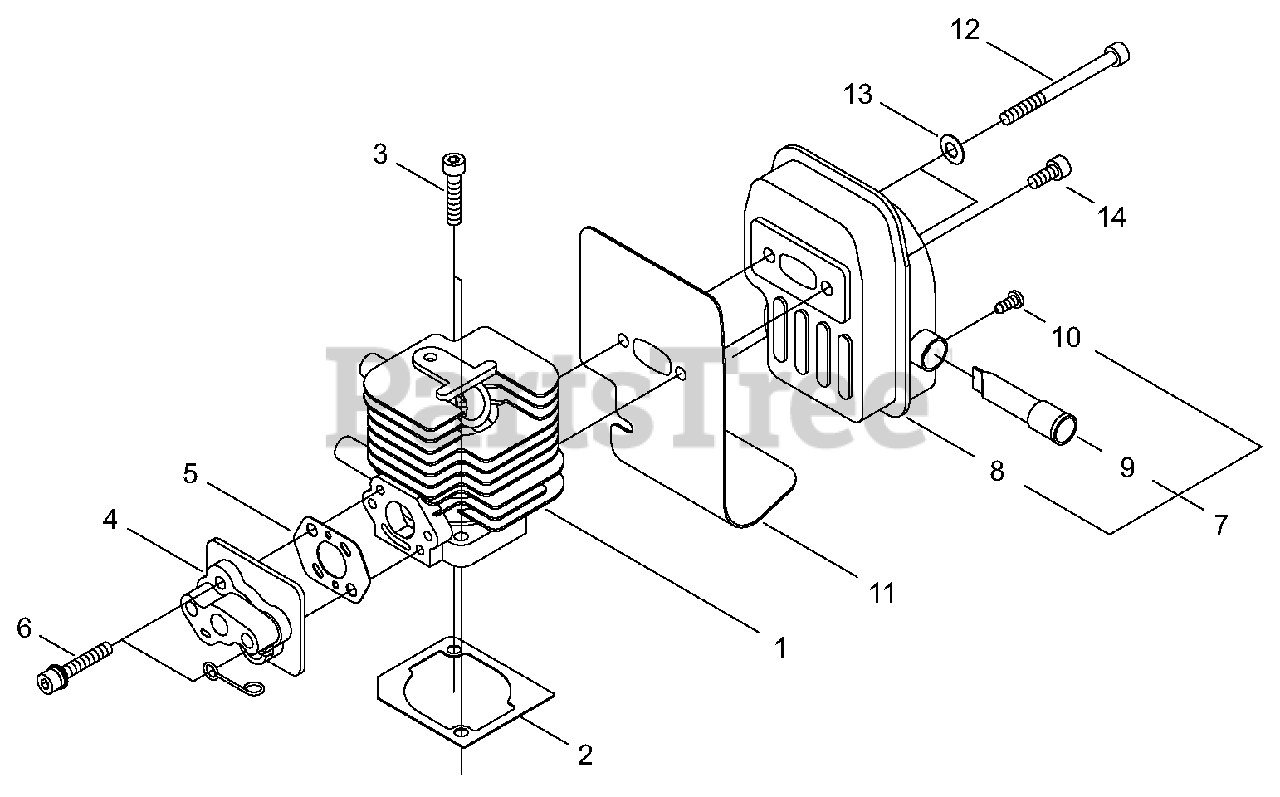

Cylinder / Intake / Muffler Parts Diagram

  • Title

1

Echo A130001390

CYLINDER
(Superseded to A130001391)

Note: 20016-12112

$58.99

$

In Stock, only 2 left!

0

2

Echo V100000490

GASKET, CYLINDER

Note: 20016-12120

$1.99

$

In Stock, Qty 5

0

3

Echo 90010505025

BOLT 5×25

Note: 01020-05250

$1.49

$

In Stock, Qty 8

0

4

Echo A200000770

INSULATOR, INTAKE
(Superseded to A200000771)

Note: 20016-12213

$13.99

$

Usually ships in 2-4 days

0

5

Echo V103001200

GASKET, INTAKE

Note: 20016-12222

$1.49

$

In Stock, only 4 left!

0

6

Echo V203000580

BOLT M5×30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

7

Echo A030000120

MUFFLER ASSY

Note: 70135-15100

$37.99

$

Usually ships in 2-4 days

0

8

Echo A300000890

MUFFLER

Note: 70135-15110

$36.99

$

Usually ships in 2-4 days

0

9

Echo A310000260

SCREEN, SPARK ARRESTER

Note: 70103-15150

$9.99

$

In Stock, only 2 left!

0

10

Echo 9137403006

SCREW, TAPPING 3×6

Note: 01270-03062

$1.49

$

In Stock, only 2 left!

0

11

Echo V104001500

HEAT SHIELD, EXHAUST

Note: 20016-15123

$9.49

$

In Stock, only 2 left!

0

12

Echo 90010505050

BOLT M5×50

Note: 01020-05500

$1.99

$

In Stock, Qty 11

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010505012

BOLT 5×12

Note: 01020-05120

$1.49

$

In Stock, only 3 left!

0
