T 230 XR EMC - Shindaiwa String Trimmer (SN: 36005665 - 36007144) Flywheel / Ignition Coil Parts Diagram

String Trimmer

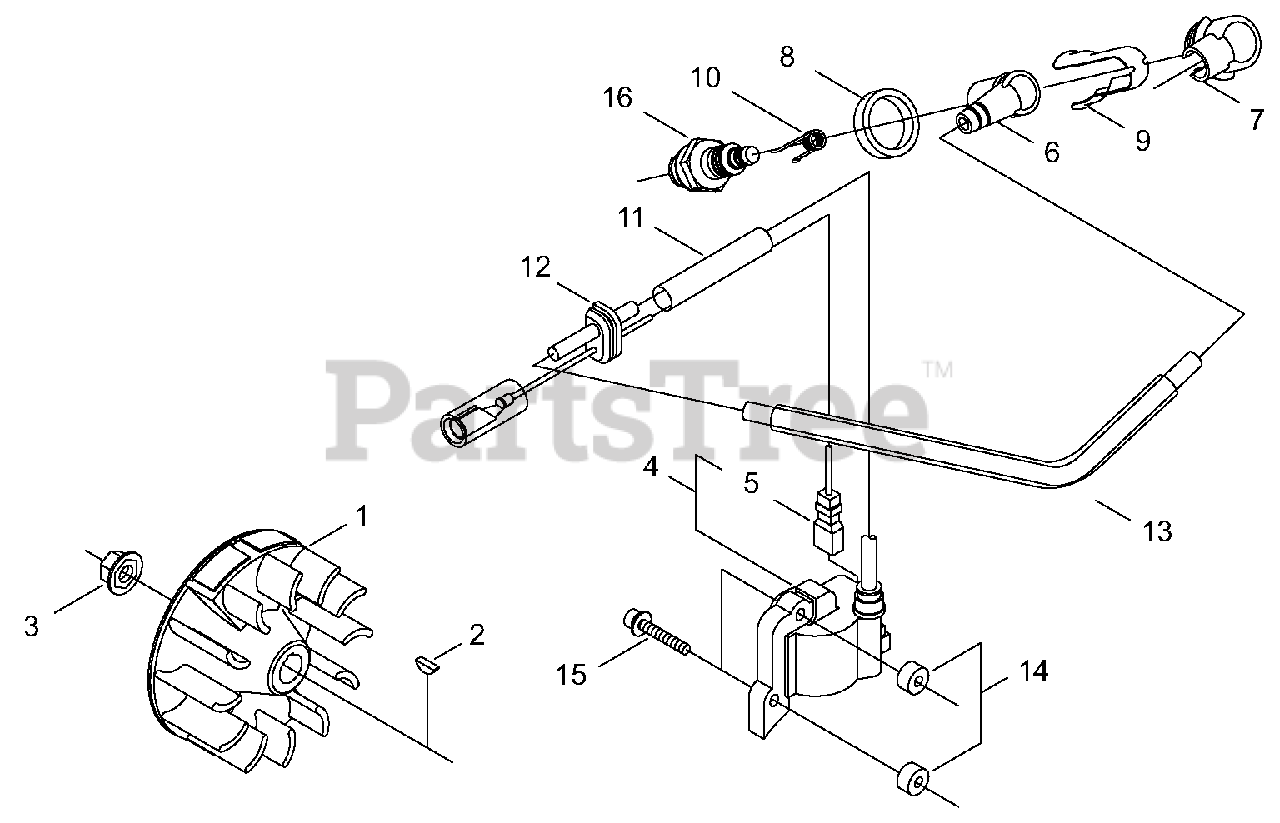

Flywheel / Ignition Coil Parts Diagram

  • Title

1

Echo A409000730

FLYWHEEL

Note: 20016-71200

$27.99

$

Usually ships in 2-4 days

0

2

Echo 9311503010

KEY - 3X10

Note: 02403-03100

$0.99

$

In Stock, Qty 20+

0

3

Echo V265000140

NUT - 8

Note: 20035-71220

$0.99

$

In Stock, Qty 10

0

4

Echo A411000880

IGNITION COIL ASSY

Note: 20016-71601

$50.99

$

In Stock, Qty 5

0

5

Echo V485001960

WIRE

Note: 20016-71641

$3.99

$

Usually ships in 2-4 days

0

6

Echo A427000090

CAP, SPARK PLUG

Note: 20010-72221

$5.99

$

In Stock, Qty 7

0

7

Echo A429000110

COVER, CAP

Note: 20000-72241

$1.99

$

In Stock, Qty 6

0

8

Echo V495001440

SEAL, DUST

Note: 20000-72250

$0.99

$

In Stock, Qty 6

0

9

Echo V151000050

SHIELD

Note: 70180-72260

$5.49

$

Usually ships in 2-4 days

0

10

Echo A426000050

TERMINAL, SPARK PLUG CAP

Note: 20000-72230

$1.49

$

In Stock, Qty 20+

0

11

Echo V475005140

TUBE, INSULATOR

Note: 20016-71651

$0.99

$

In Stock, Qty 12

0

12

Echo V135000100

GROMMET

Note: 20010-72110

$1.49

$

In Stock, Qty 6

0

13

Echo V475004840

TUBE

Note: 20016-71660

$0.99

$

In Stock, Qty 9

0

14

Echo V322000040

INSULATOR

Note: 70030-71620

$0.99

$

In Stock, Qty 12

0

15

Echo V202000330

SCREW - 4X26
(Superseded to 9111304026)

Note: 11024-04261

$0.99

$

In Stock, only 1 left!

0

16

Echo 15901010130

SPARK PLUG -- BMR-6A

Note: 13000-13406

$3.49

$

In Stock, Qty 19

0
