T 230 XR EMC - Shindaiwa String Trimmer (SN: 36005665 - 36007144) Handle Assembly / Debris Shield Parts Diagram

String Trimmer

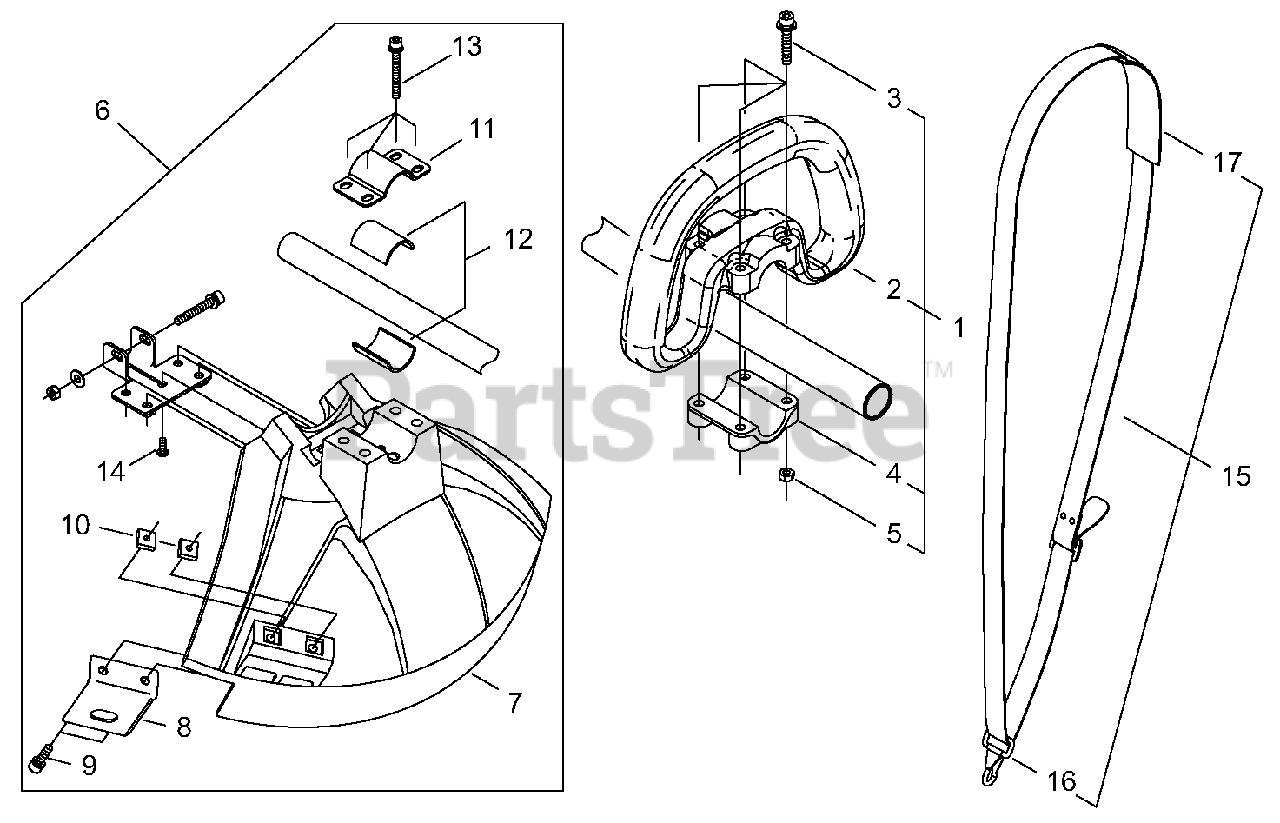

Handle Assembly / Debris Shield Parts Diagram

  • Title

1

Echo P021023230

HANDLE ASSY - FRONT

Note: 22410-14100

$37.99

$

Usually ships in 2-4 days

0

2

Echo C400000730

HANDLE - FRONT

Note: 22410-14110

$18.99

$

In Stock, only 1 left!

0

3

Echo V203000660

SCREW
(Superseded to Discontinued)

Note: 11024-05300

$

$

Not available

4

Echo C423000460

CAP - LOWER

Note: 22410-14120

$7.49

$

Usually ships in 2-4 days

0

5

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

6

Echo P021038470

DEBRIS SHIELD KIT - PLASTIC

Note: P021038470

$

$

Currently unavailable

7

Echo C550000390

SHIELD, DEBRIS - BLACK
(Superseded to C550000391)

Note: 72480-16113

$14.99

$

In Stock, only 3 left!

0

8

Echo C554000040

KNIFE, TRIMMER LINE

Note: 72480-16121

$6.49

$

In Stock, only 2 left!

0

9

Echo V203000720

SCREW - 5X16
(Superseded to 9112205016)

Note: 11020-05160

$1.49

$

In Stock, only 2 left!

0

10

Echo V263000130

NUT - 5

Note: 22420-16120

$1.49

$

In Stock, Qty 5

0

11

Echo C551000060

CLAMP - UPPER

Note: 72480-16210

$1.99

$

In Stock, Qty 6

0

12

Echo V375000340

SPACER

Note: 72480-16220

$1.99

$

In Stock, Qty 5

0

13

Echo V203000610

SCREW - 5X45

Note: 11022-05450

$1.99

$

In Stock, Qty 6

0

14

Echo V252000240

SCREW

Note: 11202-40100

$1.49

$

In Stock, only 1 left!

0

15

Echo C062000340

SHOULDER STRAP ASSY

Note: 22410-17202

$15.99

$

Usually ships in 2-4 days

0

16

Echo C649000170

HOOK

Note: 37013-67310

$4.49

$

Usually ships in 2-4 days

0

17

Echo C644000080

PAD, SHOULDER

Note: 22007-17220

$3.99

$

Usually ships in 2-4 days

0
