T 230 XR - Shindaiwa String Trimmer (SN: T23520001001 - T23520999999) Gear Case - Bolt Type Parts Diagram

String Trimmer

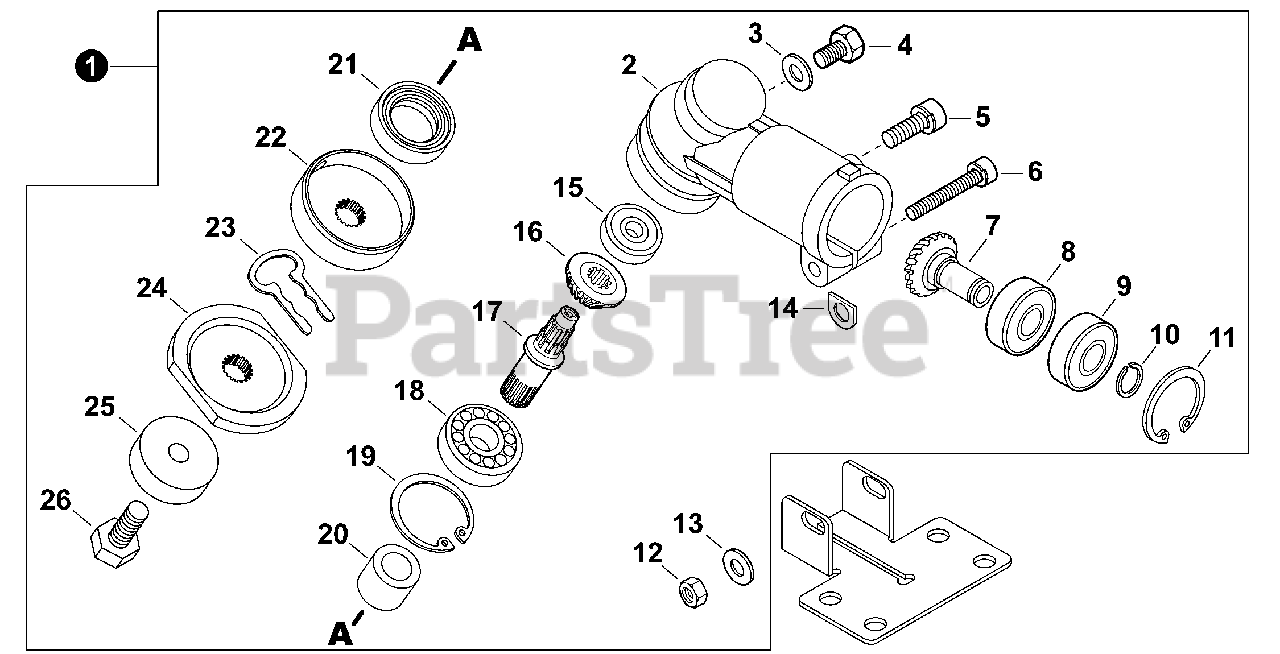

Gear Case - Bolt Type Parts Diagram

  • Title

1

Echo P021048040

GEAR CASE ASSY

Note: Includes ITEMS 2-26

$141.99

$

Usually ships in 2-4 days

0

2

Echo C531000710

HOUSING, GEAR CASE
(Superseded to C531000711)

$24.99

$

Usually ships in 2-4 days

0

3

Echo V304000180

WASHER

$1.49

$

In Stock, only 2 left!

0

4

Echo 9103006010

BOLT M6×10

$1.49

$

In Stock, Qty 10

0

5

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

6

Echo V203000600

BOLT M5×35
(Superseded to V203000601)

$1.99

$

In Stock, Qty 17

0

7

Echo V651000700

GEAR, PINION

$21.99

$

Usually ships in 2-4 days

0

8

Echo 90080000608

BEARING, BALL 608

$7.49

$

Usually ships in 2-4 days

0

9

Echo 90080400608

BEARING, BALL 608ZZ

$15.99

$

In Stock, only 2 left!

0

10

Echo 9241108000

E-RING 8

$1.49

$

In Stock, Qty 14

0

11

Echo 9242422000

RING, SNAP Ø22

$1.49

$

Usually ships in 2-4 days

0

12

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo V340000300

D-WASHER

$1.49

$

In Stock, Qty 6

0

15

Echo 90081200626

BEARING, BALL 626 DDU

$15.99

$

Usually ships in 2-4 days

0

16

Echo V651000690

GEAR, BEVEL

$18.99

$

Usually ships in 2-4 days

0

17

Echo C534000680

SHAFT, GEAR

$19.99

$

In Stock, only 1 left!

0

18

Echo 90080006000

BEARING, BALL 6000

$13.99

$

In Stock, only 2 left!

0

19

Echo 9242426000

RING, SNAP Ø26

$1.49

$

In Stock, Qty 5

0

20

Echo V356000480

SPACER

$3.49

$

In Stock, only 2 left!

0

21

Echo V509000000

SEAL, OIL

$3.99

$

In Stock, Qty 8

0

22

Echo C535000511

PLATE, ADAPTOR - UPPER

$24.99

$

In Stock, only 1 left!

0

23

Echo V490000530

CLIP, BLADE

$1.99

$

In Stock, Qty 11

0

24

Echo C535000521

PLATE, ADAPTOR - LOWER

$13.99

$

In Stock, only 1 left!

0

25

Echo C535000530

GUARD, BOLT

$3.99

$

In Stock, only 2 left!

0

26

Echo V216000040

BOLT M7×18

$4.49

$

In Stock, only 2 left!

0
