T 230 XR - Shindaiwa String Trimmer (SN: T23520001001 - T23520999999) Gear Case - Nut Type Parts Diagram

String Trimmer

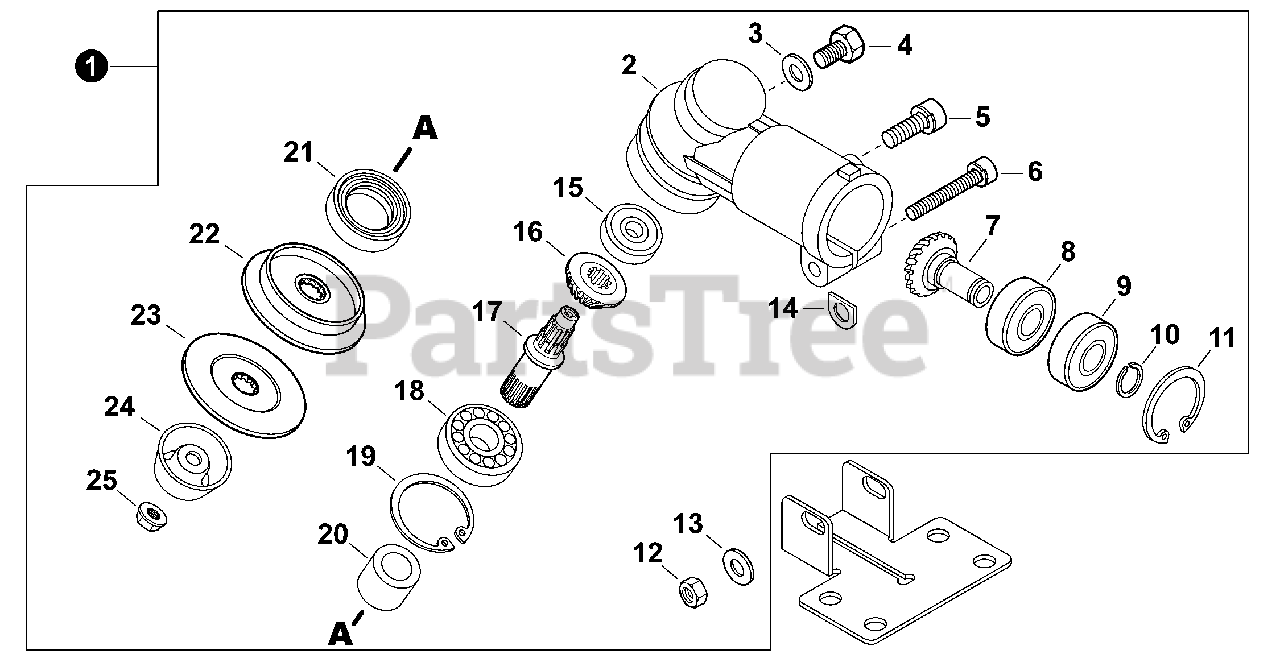

Gear Case - Nut Type Parts Diagram

  • Title

1

Echo P021048030

GEAR CASE ASSY
(Superseded to P021048031)

Note: Includes ITEMS 2-25

$136.99

$

Usually ships in 2-4 days

0

2

Echo C531000970

CASE, GEAR
(Superseded to C531000971)

$25.99

$

Usually ships in 2-4 days

0

3

Echo V304000180

WASHER

$0.99

$

In Stock, Qty 9

0

4

Echo 9103006010

BOLT M6×10

$0.99

$

In Stock, Qty 8

0

5

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 20+

0

6

Echo V203000600

BOLT M5×35
(Superseded to V203000601)

$1.49

$

In Stock, Qty 16

0

7

Echo V651000700

GEAR, PINION

$19.99

$

Usually ships in 2-4 days

0

8

Echo 90080000608

BEARING, BALL 608

$5.99

$

In Stock, only 1 left!

0

9

Echo 90080400608

BEARING, BALL 608ZZ

$12.99

$

In Stock, only 3 left!

0

10

Echo 9241108000

E-RING 8

$0.99

$

In Stock, Qty 7

0

11

Echo 9242422000

RING, SNAP Ø22

$0.99

$

In Stock, Qty 5

0

12

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo V340000300

D-WASHER

$0.99

$

In Stock, Qty 8

0

15

Echo 90081200626

BEARING, BALL 626 DDU

$13.99

$

Usually ships in 2-4 days

0

16

Echo V651000690

GEAR, BEVEL

$15.99

$

Usually ships in 2-4 days

0

17

Echo C534000960

SHAFT, GEAR

$25.99

$

Usually ships in 2-4 days

0

18

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 5

0

19

Echo 9242428000

RING, SNAP Ø28
(Superseded to 90070200028)

$1.49

$

In Stock, Qty 17

0

20

Echo V356000720

COLLAR 10

$4.99

$

Usually ships in 2-4 days

0

21

Echo V510000020

SEAL, OIL

$5.99

$

In Stock, Qty 15

0

22

Echo C535000891

PLATE, ADAPTOR - UPPER

$19.99

$

In Stock, only 4 left!

0

23

Echo 61031452130

PLATE, ADAPTOR - LOWER

$22.99

$

Usually ships in 2-4 days

0

24

Echo 69922956830

CUP

$24.99

$

Usually ships in 2-4 days

0

25

Echo 61032052130

NUT, LOCK - NYLON INSERT

$4.99

$

Usually ships in 2-4 days

0
