T 230 XR - Shindaiwa String Trimmer (SN: T23520001001 - T23520999999) Throttle Control Parts Diagram

String Trimmer

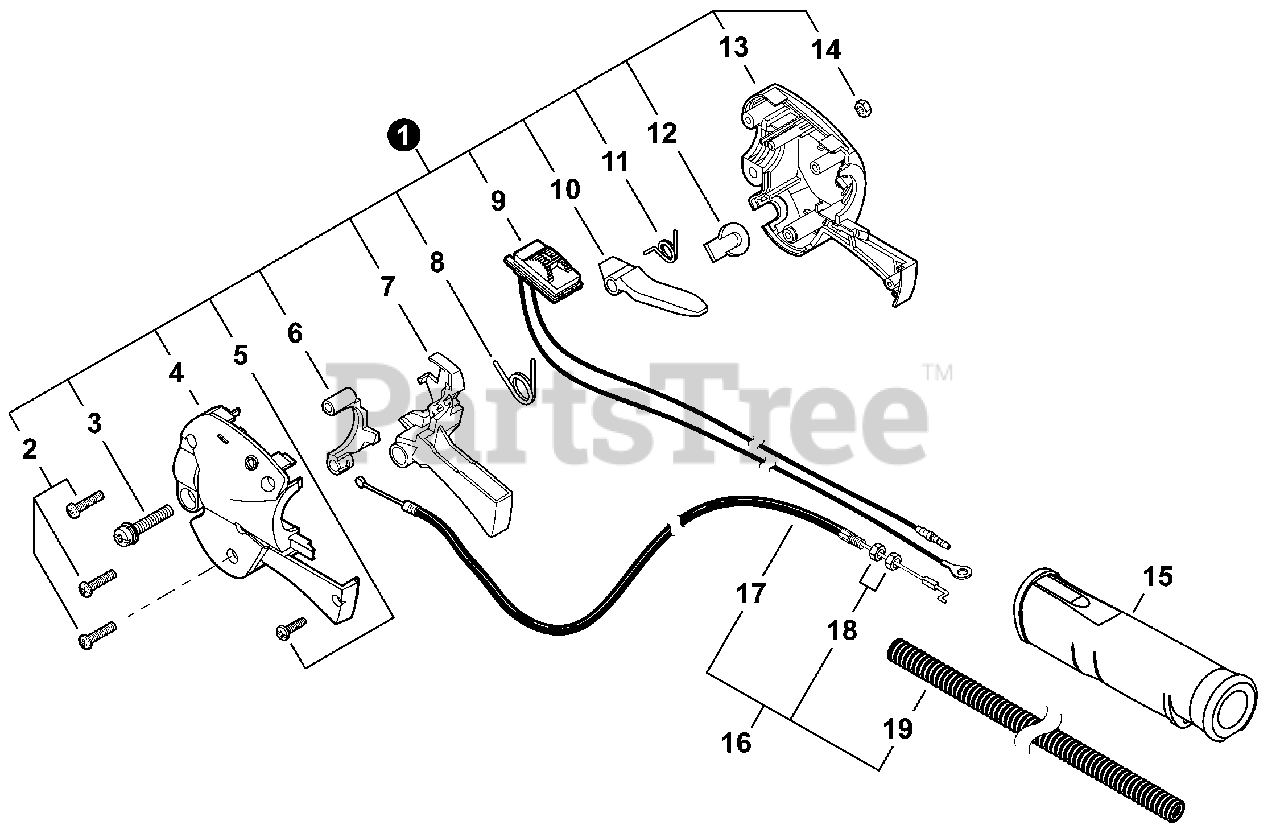

Throttle Control Parts Diagram

  • Title

1

Echo C044000450

THROTTLE CONTROL ASSY

Note: Includes ITEMS 2-14

$57.99

$

In Stock, only 1 left!

0

2

Echo V252000380

SCREW, TAPPING M4×20

$1.99

$

Usually ships in 2-4 days

0

3

Echo V253000340

SCREW M5×20
(Superseded to Discontinued)

$

$

Not available

4

Echo C401000170

CONTROL HANDLE - LEFT

$10.99

$

Usually ships in 2-4 days

0

5

Echo V251000040

SCREW, TAPPING 3×14
(Superseded to P022023330)

$0.99

$

Usually ships in 2-4 days

0

6

Echo C461000030

LOCKOUT, THROTTLE

$2.99

$

In Stock, only 1 left!

0

7

Echo C450000490

TRIGGER, THROTTLE

$10.99

$

In Stock, only 1 left!

0

8

Echo V452000700

SPRING, THROTTLE RETURN

$1.99

$

In Stock, Qty 8

0

9

Echo A045000230

SWITCH, ON-OFF

$22.99

$

Usually ships in 2-4 days

0

10

Echo C460000190

LEVER, THROTTLE LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

11

Echo V452000500

SPRING, THROTTLE LOCKOUT

$1.99

$

In Stock, only 1 left!

0

12

Echo V162000350

PLUG

$1.99

$

In Stock, only 1 left!

0

13

Echo C401000160

CONTROL HANDLE - RIGHT

$11.99

$

Usually ships in 2-4 days

0

14

Echo 9201705000

NUT M5

$1.49

$

In Stock, Qty 12

0

15

Echo C412000261

GRIP, REAR

$11.99

$

In Stock, only 2 left!

0

16

Echo P021028640

CABLE ASSY, THROTTLE

Note: Includes ITEMS 17-19

$19.99

$

Usually ships in 2-4 days

0

17

Echo V430002650

CABLE, THROTTLE

$9.99

$

In Stock, only 2 left!

0

18

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 20+

0

19

Echo V475004520

TUBE, PLASTIC PROTECTIVE

$1.99

$

In Stock, Qty 12

0
