T 231 - Shindaiwa String Trimmer Debris Shield Parts Diagram

String Trimmer

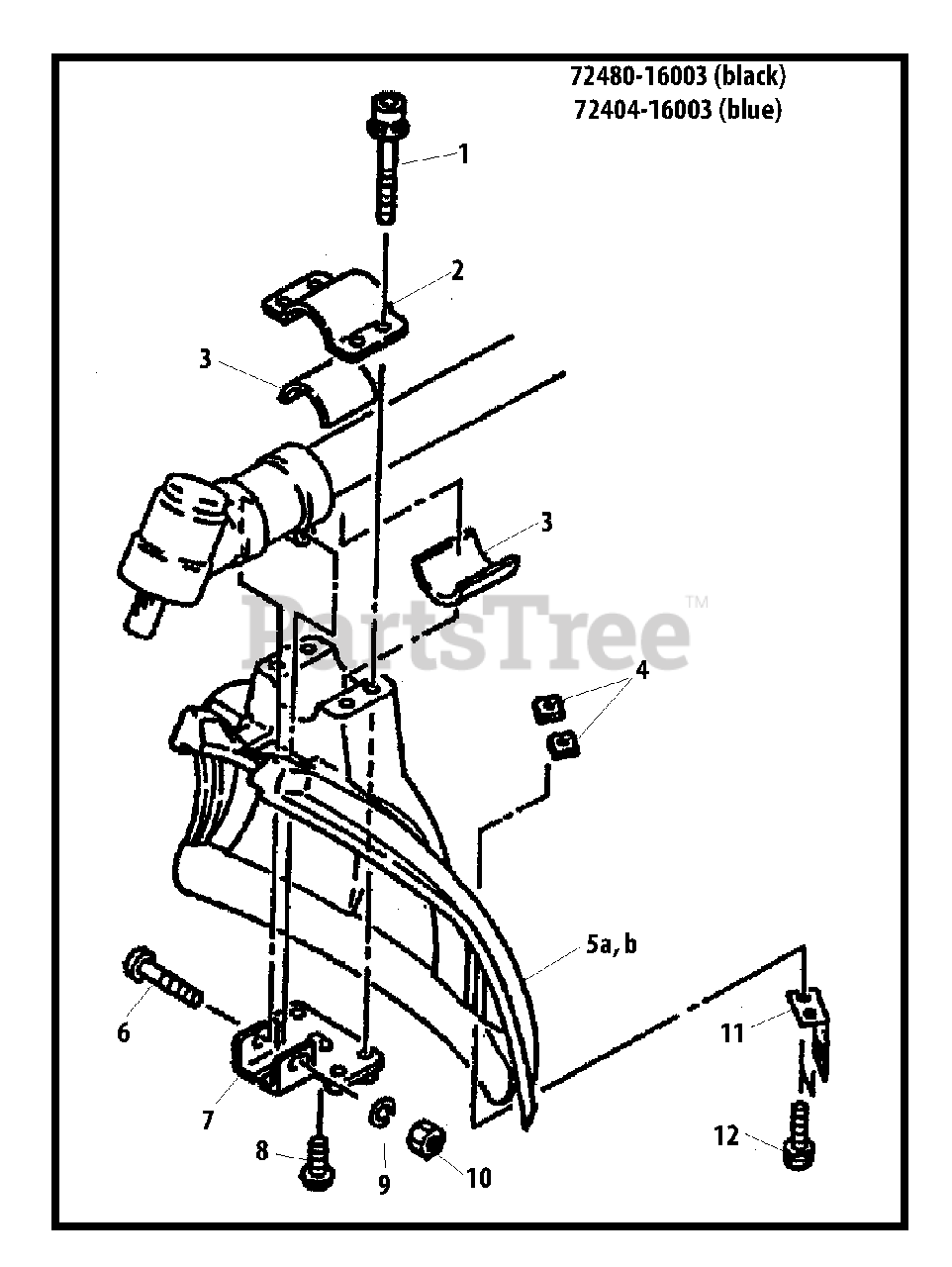

Debris Shield Parts Diagram

  • Title

72480-16003

Echo 72480-16003

DEBRIS SHIELD ASSY
(Superseded to P021032900)

Note: PR186 (Black)

$37.99

$

In Stock, only 4 left!

0

72404-16003

Echo 72404-16003

DEBRIS SHIELD KIT - BLUE
(Superseded to P021032620)

$44.99

$

In Stock, only 1 left!

0

1

Echo 11022-05450

BOLT M5×45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 6

0

2

Echo 72480-16210

CLAMP, UPPER
(Superseded to C551000060)

$1.99

$

In Stock, only 4 left!

0

3

Echo 72480-16220

SPACER
(Superseded to V375000340)

$1.99

$

In Stock, Qty 5

0

4

Echo 22420-16120

NUT M5
(Superseded to V263000130)

$1.49

$

In Stock, only 3 left!

0

5A

Echo 72480-16113

SHIELD, DEBRIS
(Superseded to C550000390)

$14.99

$

In Stock, only 3 left!

0

5B

Echo 72404-16113

SHIELD, DEBRIS - BLUE
(Superseded to C550000400)

$9.49

$

In Stock, only 3 left!

0

6

Echo 11022-05350

BOLT M5×35
(Superseded to V203000600)

$1.99

$

In Stock, Qty 16

0

7

Echo 72480-16130

PLATE, SHIELD MOUNTING
(Superseded to C551000150)

$4.99

$

In Stock, only 2 left!

0

8

Echo 11202-40100

SCREW HILO 4×10
(Superseded to V252000240)

$1.49

$

In Stock, only 1 left!

0

9

Echo 01613-05080

WASHER 5 MM
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 72480-16121

CUTTER
(Superseded to C554000040)

$6.49

$

In Stock, only 2 left!

0

12

Echo 11020-05160

BOLT M5×16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0
