T 235 - Shindaiwa String Trimmer (SN: S95713001001 - S95713999999) Control Handle, Throttle Cable Parts Diagram

String Trimmer

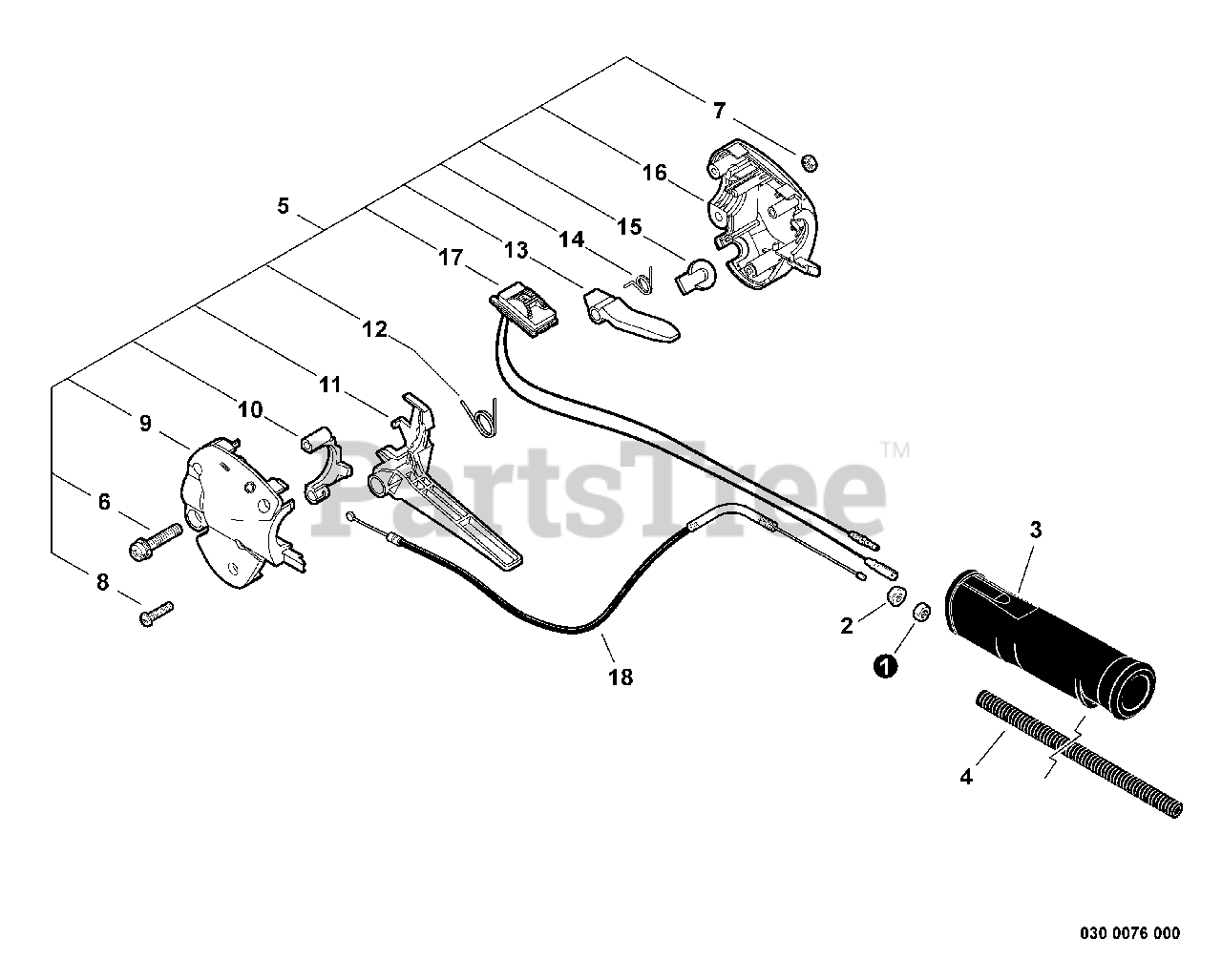

Control Handle, Throttle Cable Parts Diagram

  • Title

1

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

2

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

3

Echo C403000612

GRIP, HANDLE

$21.99

$

In Stock, only 2 left!

0

4

Echo V475007800

TUBE, PROTECTIVE

$2.49

$

Usually ships in 2-4 days

0

5

Echo P021043720

THROTTLE CONTROL ASSY

Note: Includes ITEMS 6-17

$48.99

$

In Stock, only 2 left!

0

6

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo P022032480

SCREW

$1.99

$

Usually ships in 2-4 days

0

9

Echo P022025700

CONTROL HANDLE - LEFT

$24.99

$

Usually ships in 2-4 days

0

10

Echo C461000020

LOCKOUT, THROTTLE

$3.99

$

In Stock, only 2 left!

0

11

Echo C450000480

TRIGGER, THROTTLE

$9.99

$

In Stock, only 2 left!

0

12

Echo P022025820

SPRING, THROTTLE RETURN

$1.99

$

In Stock, only 2 left!

0

13

Echo C460000190

LEVER, THROTTLE LOCKOUT

$4.99

$

In Stock, only 4 left!

0

14

Echo V452000500

SPRING, THROTTLE LOCKOUT

$1.99

$

In Stock, Qty 5

0

15

Echo P022025790

PLUG

$2.49

$

Usually ships in 2-4 days

0

16

Echo P022035250

CONTROL HANDLE - RIGHT

$9.49

$

Usually ships in 2-4 days

0

17

Echo P022035260

SWITCH, ON-OFF

$22.99

$

Usually ships in 2-4 days

0

18

Echo V430004510

CABLE, THROTTLE

$15.99

$

In Stock, only 2 left!

0
