T 235 - Shindaiwa String Trimmer (SN: S95713001001 - S95713999999) Engine, Short Block -- SB1107 Parts Diagram

String Trimmer

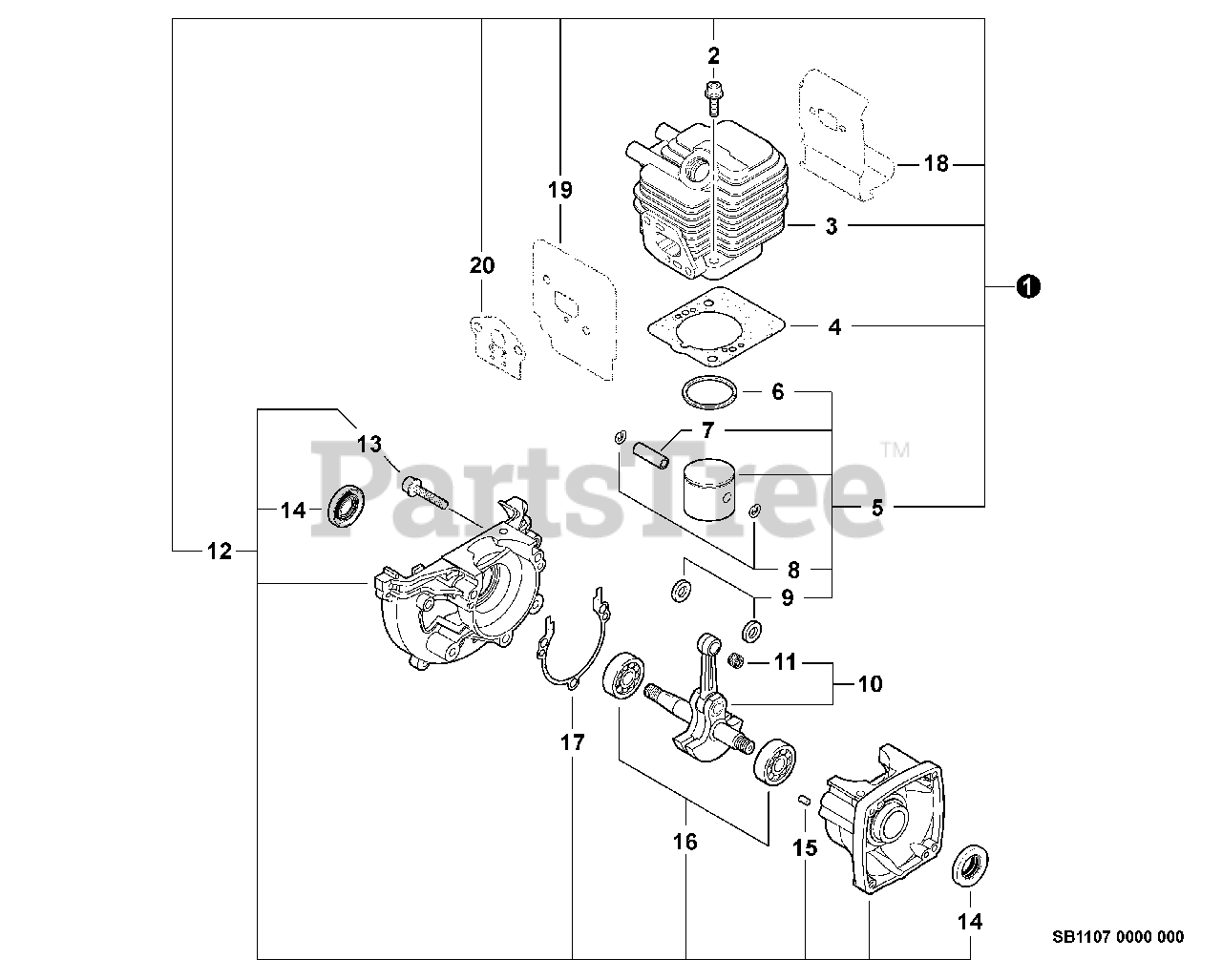

Engine, Short Block -- SB1107 Parts Diagram

  • Title

1

Echo SB1107

SHORT BLOCK -- SB1107

Note: Includes ITEM 2-20

$190.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

3

Echo A130000550

CYLINDER

$100.99

$

In Stock, only 2 left!

0

4

Echo V100000160

GASKET, CYLINDER

Note: Included In GASKET KIT

$6.99

$

In Stock, Qty 12

0

5

Echo P021043620

PISTON KIT

Note: Includes ITEMS 6-9

$68.99

$

In Stock, only 1 left!

0

6

Echo A101000090

RING, PISTON

$

$

Not available

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, Qty 9

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$172.99

$

Usually ships in 2-4 days

0

11

Echo V553000060

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 1 left!

0

12

Echo 10020452133

CRANKCASE KIT

Note: Includes ITEMS 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

14

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 15

0

15

Echo 90033040080

PIN - LOCATING

$1.49

$

In Stock, Qty 17

0

16

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

17

Echo 10024242030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

18

------------------

SHIELD, EXHAUST

Note: Included In GASKET KIT

$

$

Not available

19

------------------

SHIELD, INTAKE

Note: Included In GASKET KIT

$

$

Not available

20

------------------

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available
