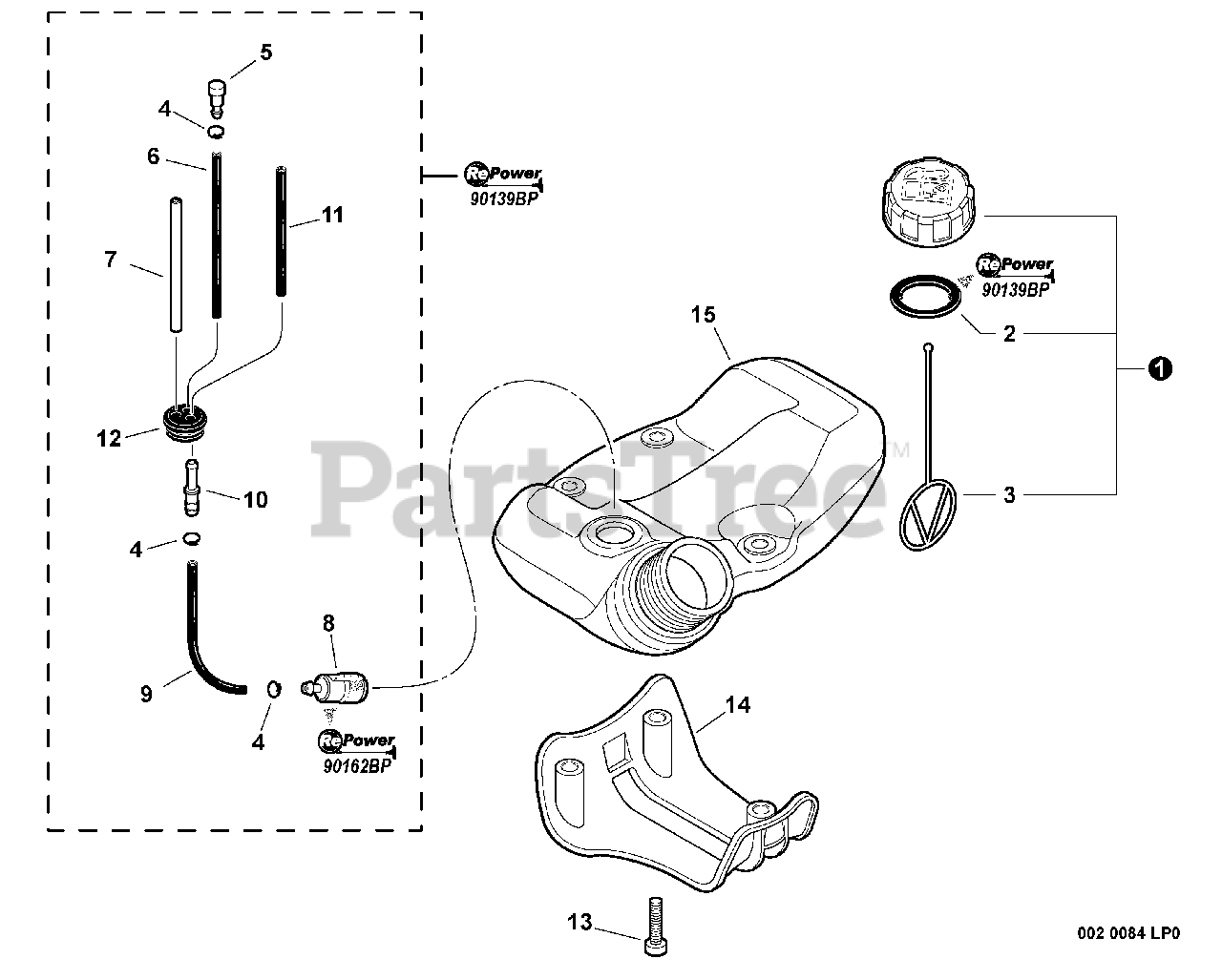

T 235 - Shindaiwa String Trimmer (SN: S95713001001 - S95713999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo P021041930

CAP ASSY

Note: Includes ITEMS 2-3

$6.49

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

Note: Included in RePower FUEL SYSTEM KIT

$4.99

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

6

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: Included in RePower TUNE-UP KIT

$6.49

$

In Stock, Qty 20+

0

9

Echo V471001960

PIPE, FUEL -- BLACK

$

$

Currently unavailable

10

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

11

Echo V471003691

PIPE - 3X5X74 -- BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, Qty 20+

0

12

Echo 13211546730

GROMMET

$2.49

$

In Stock, Qty 20+

0

13

Echo V805000170

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

14

Echo A175000070

GUARD, FUEL TANK

$5.49

$

Usually ships in 2-4 days

0

15

Echo A350000930

TANK, FUEL

$24.99

$

Usually ships in 2-4 days

0

16

Echo 90162BP

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available

17

Echo 90139BP

RePower FUEL SYSTEM KIT
(Superseded to 90139)

$

$

Not available
