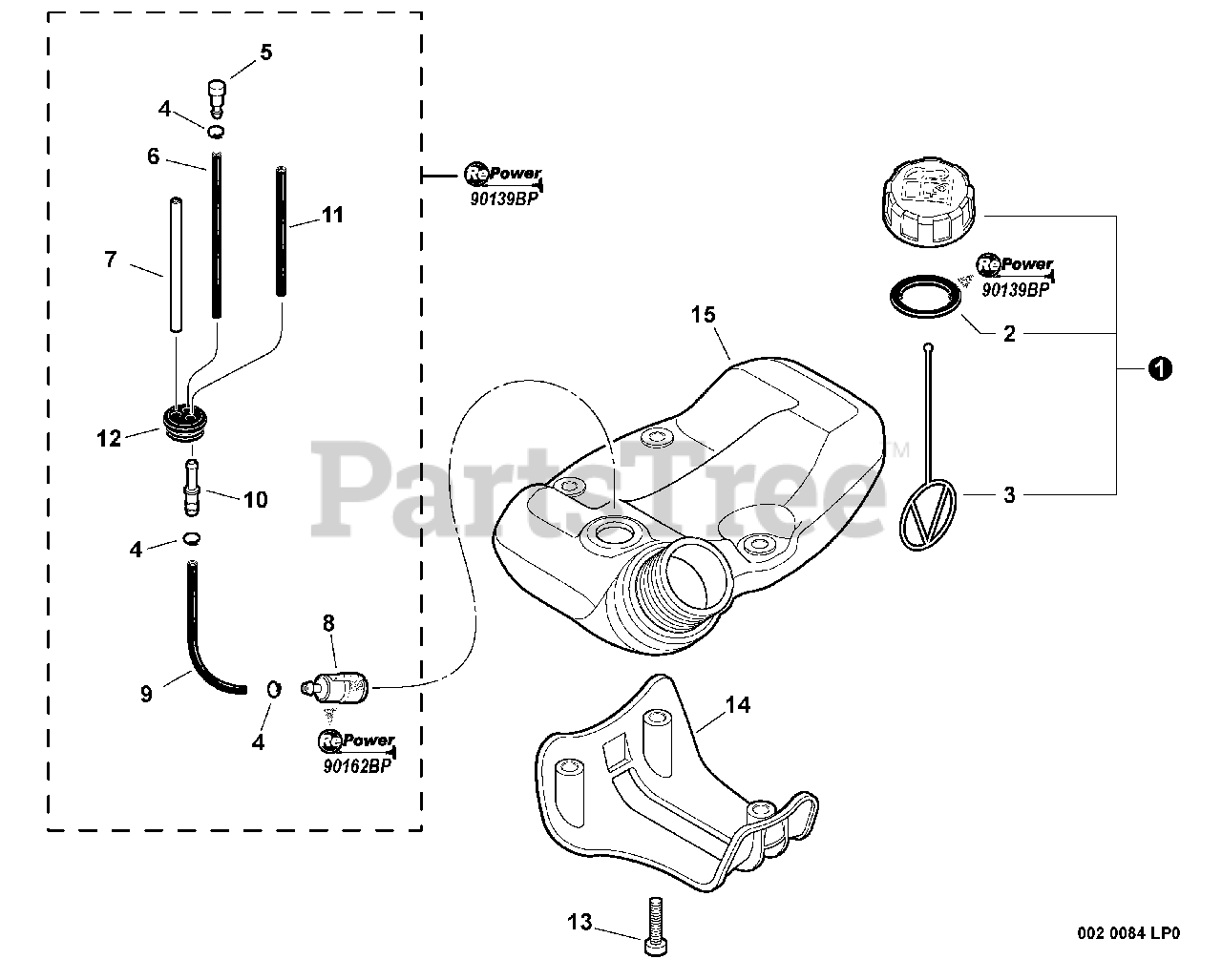

T 235 - Shindaiwa String Trimmer (SN: S95713001001 - S95713999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo P021041930

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, only 1 left!

0

2

Echo V107000150

GASKET, FUEL CAP

Note: Included in RePower FUEL SYSTEM KIT

$4.99

$

In Stock, only 4 left!

0

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 8

0

5

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

6

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

8

Echo 131205-07320

FILTER, FUEL

Note: Included in RePower TUNE-UP KIT

$6.49

$

In Stock, Qty 20+

0

9

Echo V471001960

HOSE

$

$

Currently unavailable

10

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.99

$

In Stock, Qty 13

0

12

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo A175000070

GUARD, FUEL TANK

$5.49

$

In Stock, only 1 left!

0

15

Echo A350000930

TANK, FUEL

$26.99

$

Usually ships in 2-4 days

0

16

Echo 90162BP

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

17

Echo 90139BP

FUEL SYSTEM KIT
(Superseded to 90139)

$

$

Not available
