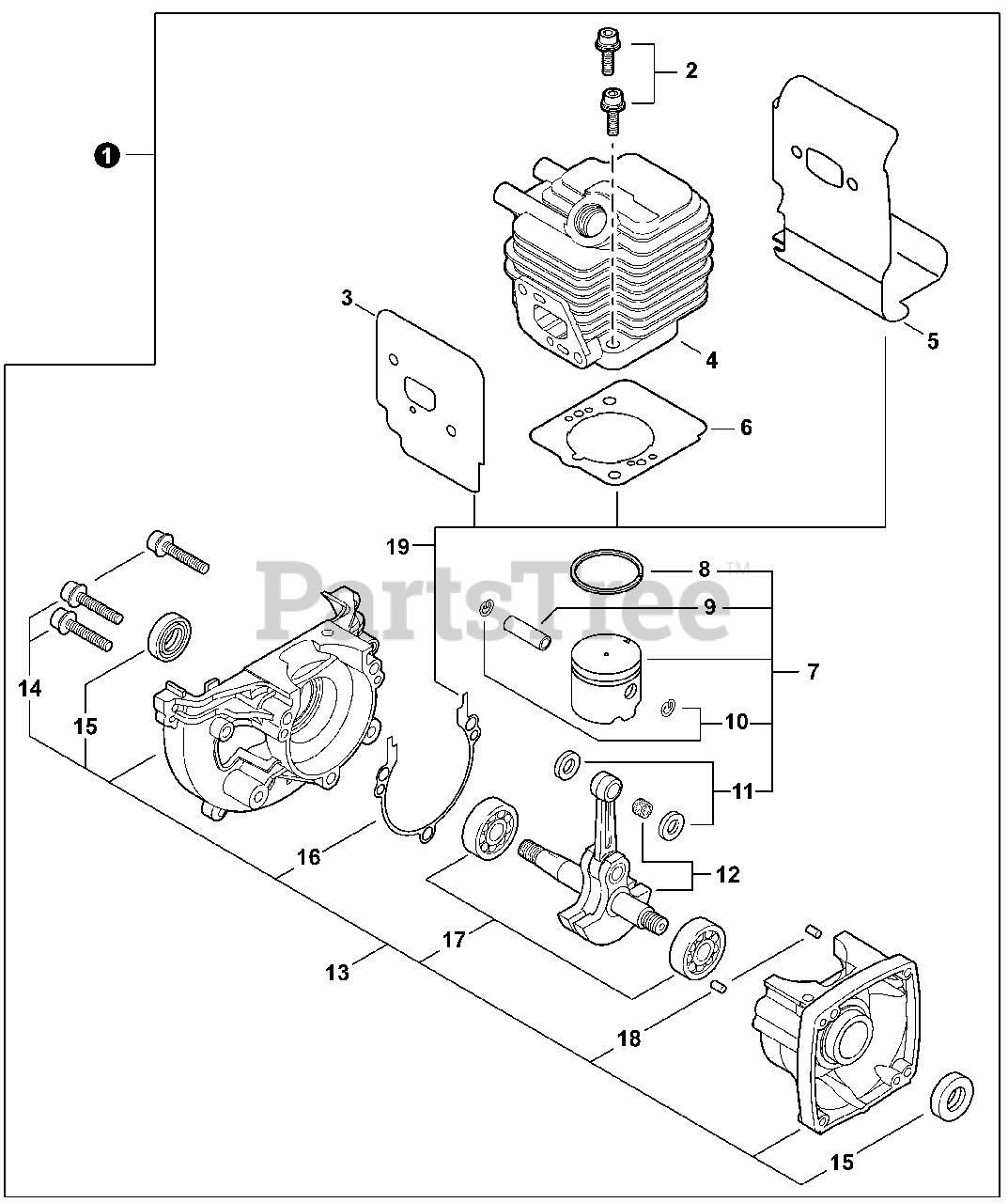

T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1107

SHORT BLOCK

$204.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

Note: Includes ITEMS 2-18

$0.99

$

In Stock, only 3 left!

0

3

Echo V103001360

HEAT SHIELD, INTAKE

Note: Included in Gasket kit

$2.99

$

In Stock, Qty 20+

0

4

Echo A130000550

CYLINDER

$107.99

$

In Stock, only 2 left!

0

5

Echo V104000850

HEAT SHIELD, EXHAUST

Note: Included in Gasket kit

$16.99

$

In Stock, only 4 left!

0

6

Echo V100000160

GASKET, CYLINDER

Note: Included in Gasket kit

$7.49

$

In Stock, Qty 10

0

7

Echo P021043620

PISTON KIT

Note: Includes ITEMS 8-11

$73.99

$

In Stock, only 1 left!

0

8

Echo A101000090

RING, PISTON

$

$

Not available

9

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

10

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

11

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

12

Echo A011001410

CRANKSHAFT ASSY

$186.99

$

Usually ships in 2-4 days

0

13

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes ITEMS 14-18

$

$

Not available

14

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 9

0

15

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included in Gasket kit

$1.99

$

In Stock, Qty 14

0

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 4 left!

0

18

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 12

0

19

Echo P021043920

GASKET KIT

Note: See Repower Maintenance

$23.99

$

Usually ships in 2-4 days

0
