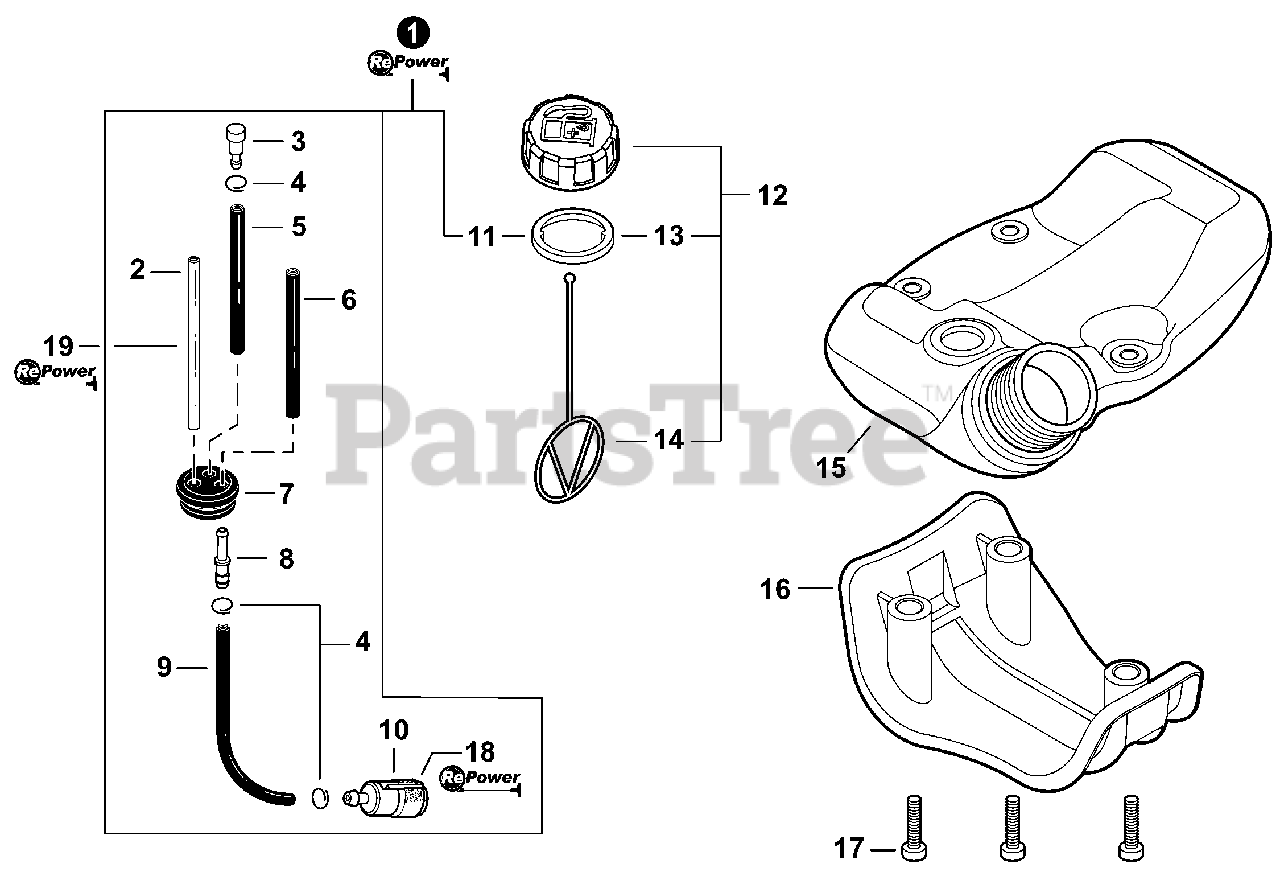

T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 90139BP

FUEL SYSTEM KIT
(Superseded to 90139)

Note: Includes ITEMS 2-11

$

$

Not available

2

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: Repower Bulk

$3.49

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

5

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.99

$

In Stock, Qty 13

0

7

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V470001960

PIPE, FUEL 3×5×110 BLACK

$6.49

$

Usually ships in 2-4 days

0

10

Echo A369000480

FILTER, FUEL

Note: Included in Repower Tune-up kit

$6.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

12

Echo P021041930

CAP ASSY, FUEL

Note: Includes ITEMS 13-14

$6.99

$

In Stock, Qty 6

0

13

Echo V107000150

GASKET, FUEL CAP

Note: See Repower Maintenance

$4.99

$

In Stock, only 4 left!

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

15

Echo A350000930

TANK, FUEL

$26.99

$

Usually ships in 2-4 days

0

16

Echo A175000070

GUARD, FUEL TANK

$5.49

$

In Stock, only 1 left!

0

17

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 90162BP

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

Note: See Repower Maintenance

$

$

Not available

19

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

$69.99

$

In Stock, Qty 13

0
