T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Gear Case Parts Diagram

String Trimmer

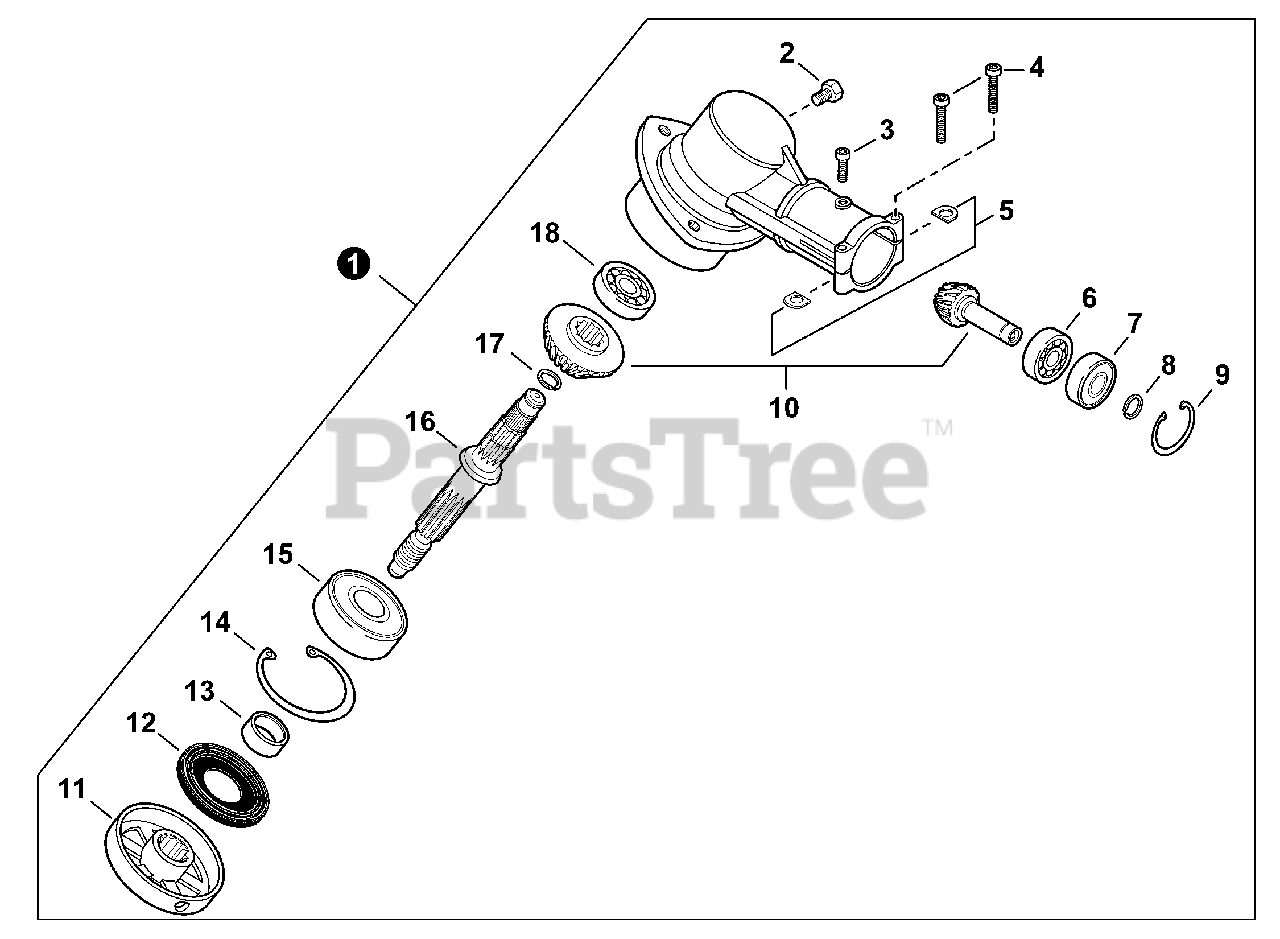

Gear Case Parts Diagram

  • Title

1

Echo P021043660

GEAR CASE ASSY
(Superseded to P021034982)

Note: Includes ITEMS 2-18

$180.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×1.25

$1.99

$

In Stock, Qty 20+

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

6

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

7

Echo 90085806900

BEARING, BALL 6900-Z

$25.99

$

In Stock, only 3 left!

0

8

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

9

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0

10

Echo 61030052630

GEAR SET

$113.99

$

Usually ships in 2-4 days

0

11

Echo 61031347731

PLATE, ADAPTOR - UPPER

$13.99

$

In Stock, only 4 left!

0

12

Echo 61041307130

SEAL, OIL 22

$6.49

$

Usually ships in 2-4 days

0

13

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, Qty 8

0

14

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 10

0

15

Echo 90081006201

BEARING, BALL 6201

$7.99

$

In Stock, only 2 left!

0

16

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$74.99

$

In Stock, only 4 left!

0

17

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 9

0

18

Echo 90080000609

BEARING, BALL 609

$10.99

$

In Stock, Qty 6

0
