T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Intake / Air Filter Parts Diagram

String Trimmer

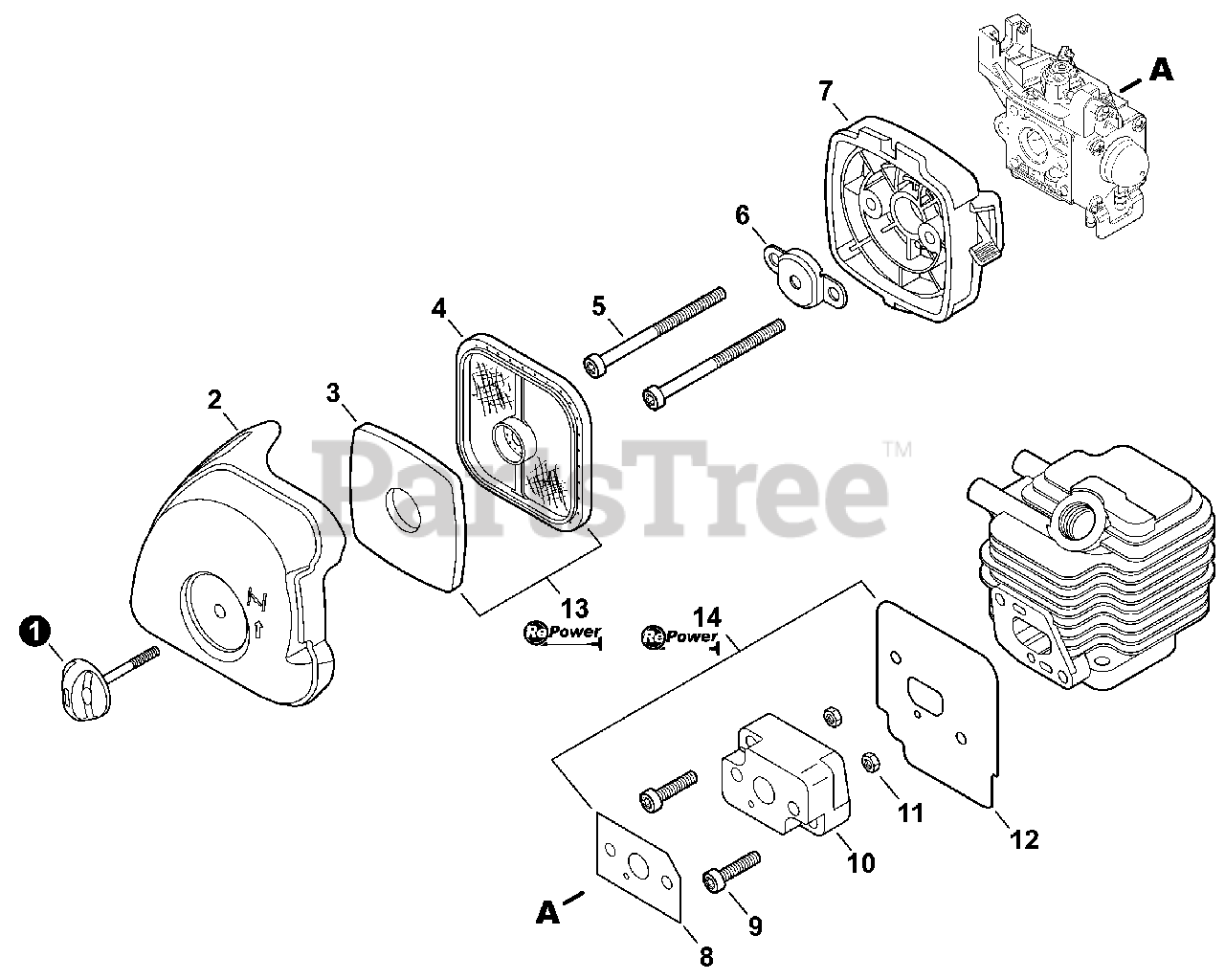

Intake / Air Filter Parts Diagram

  • Title

1

Echo V299000520

THUMBSCREW

$4.99

$

In Stock, Qty 17

0

2

Echo A232001690

COVER, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

3

Echo A226001790

PRE-FILTER, FOAM

Note: Included in Repower Tune-up kit

$3.99

$

In Stock, Qty 16

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included in Repower Tune-up kit

$8.99

$

In Stock, Qty 20+

0

5

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

7

Echo P021043650

CASE, AIR FILTER

$18.99

$

Usually ships in 2-4 days

0

8

Echo V103001390

GASKET, INTAKE
(Superseded to V103002190)

Note: Included in Gasket kit

$2.49

$

In Stock, Qty 20+

0

9

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001744331

INSULATOR, INTAKE

$11.99

$

In Stock, only 3 left!

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo V103001360

HEAT SHIELD, INTAKE

Note: Included in Gasket kit

$2.99

$

In Stock, Qty 12

0

13

Echo 90162BP

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

Note: See Repower Maintenance

$

$

Not available

14

Echo P021043920

GASKET KIT

Note: See Repower Maintenance

$23.99

$

Usually ships in 2-4 days

0
