T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Intake / Air Filter Parts Diagram

String Trimmer

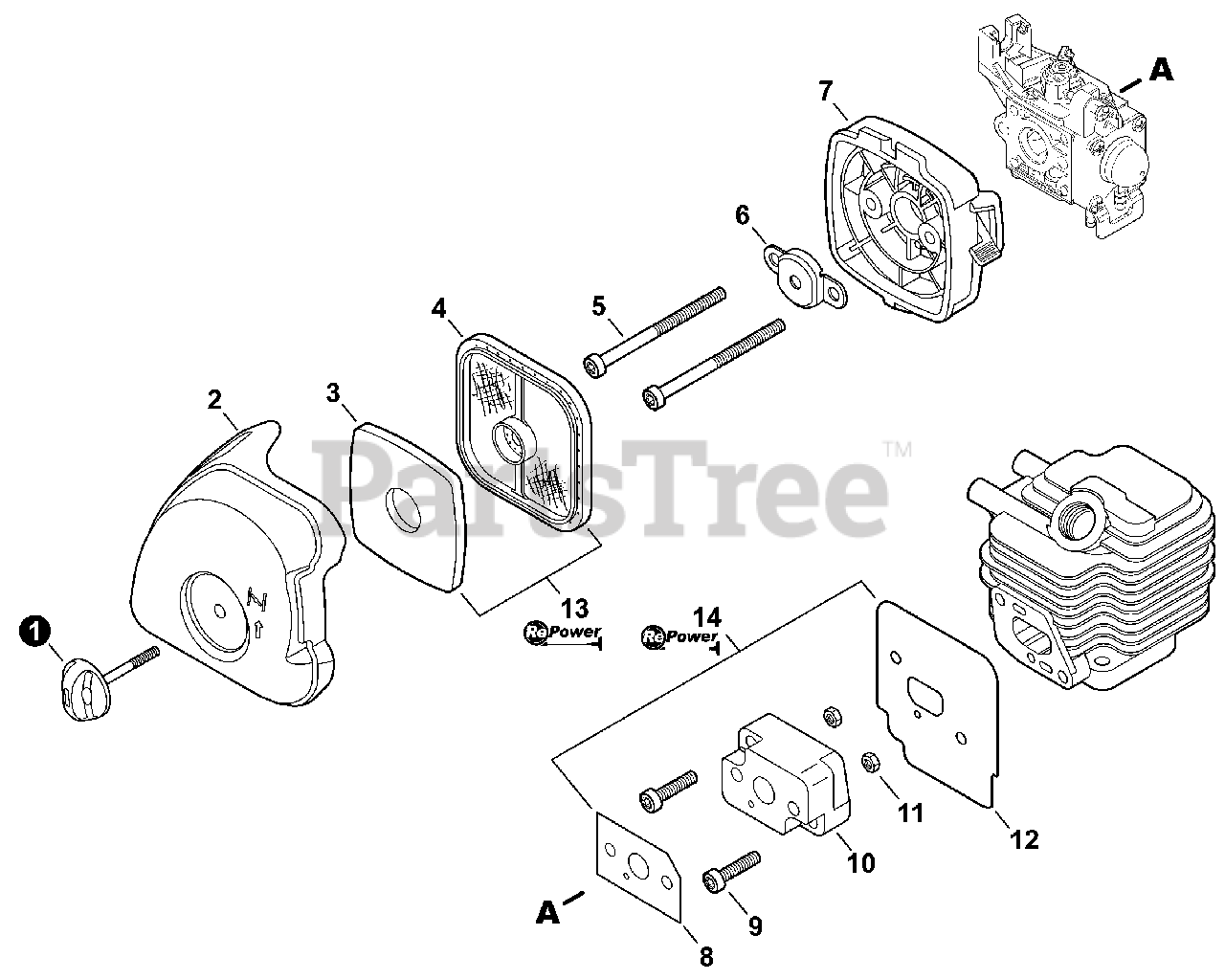

Intake / Air Filter Parts Diagram

  • Title

1

Echo V299000520

THUMBSCREW

$3.99

$

In Stock, Qty 7

0

2

Echo A232001690

COVER, AIR FILTER

$9.99

$

In Stock, Qty 6

0

3

Echo A226001790

PRE-FILTER, FOAM

$3.49

$

In Stock, Qty 17

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

5

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021043650

CASE, AIR FILTER

$15.99

$

In Stock, only 1 left!

0

8

Echo V103001390

GASKET, INTAKE
(Superseded to V103002190)

$1.99

$

In Stock, Qty 20+

0

9

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, Qty 20+

0

11

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0

12

Echo V103001360

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

13

Echo 90162BP

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

14

Echo P021043920

GASKET KIT

$19.99

$

Usually ships in 2-4 days

0
