T 242 - Shindaiwa String Trimmer (SN: T16311001001 - T16311999999) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

1

Echo A021003310

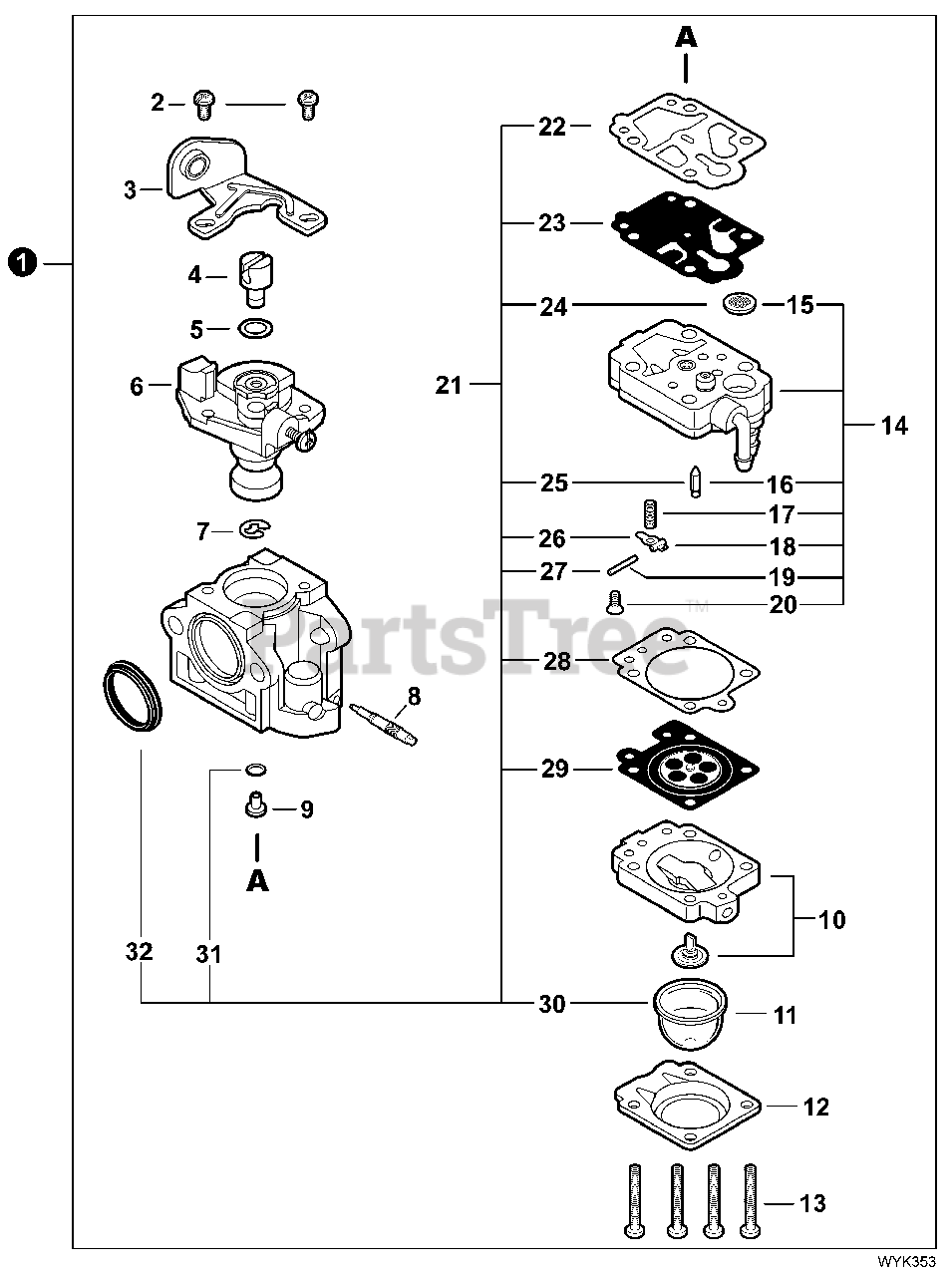

CARBURETOR - WYK-353
(Superseded to A021003311)

Note: Includes Items 2-32

$108.99

$

In Stock, Qty 18

0

2

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

3

Echo 12312854230

BRACKET, THROTTLE CABLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

6

Echo P003004160

VALVE ASSY, THROTTLE

$36.99

$

Usually ships in 2-4 days

0

7

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

8

Echo P003004110

NEEDLE, HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

9

Echo P003004120

JET, MAIN #31

$5.49

$

In Stock, Qty 9

0

10

Echo P003003980

BODY ASSY, PURGE

$5.49

$

In Stock, only 1 left!

0

11

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

12

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

13

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

14

Echo P003004150

BODY ASSY, PUMP

Note: Includes Items 15-20

$42.99

$

In Stock, only 1 left!

0

15

----------------

SCREEN, INLET

$

$

Not available

16

----------------

VALVE, INLET NEEDLE

$

$

Not available

17

----------------

SPRING, METERING LEVER

$

$

Not available

18

----------------

LEVER, METERING

$

$

Not available

19

----------------

PIN, METERING LEVER

$

$

Not available

20

----------------

SCREW

$

$

Not available

21

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes Items 22-32

$10.99

$

In Stock, Qty 20+

0

22

----------------

GASKET, PUMP

$

$

Not available

23

----------------

DIAPHRAGM, PUMP

$

$

Not available

24

----------------

SCREEN, INLET

$

$

Not available

25

----------------

VALVE, INLET NEEDLE

$

$

Not available

26

----------------

LEVER, METERING

$

$

Not available

27

----------------

PIN, METERING LEVER

$

$

Not available

28

----------------

GASKET, METERING DIAPHRAGM

$

$

Not available

29

----------------

DIAPHRAGM, METERING

$

$

Not available

30

----------------

BULB, PURGE

$

$

Not available

31

----------------

O-RING

$

$

Not available

32

----------------

RING, PACKING

$

$

Not available
