T 242 - Shindaiwa String Trimmer (SN: T73814001001 - T73814999999) Fuel System Parts Diagram

String Trimmer

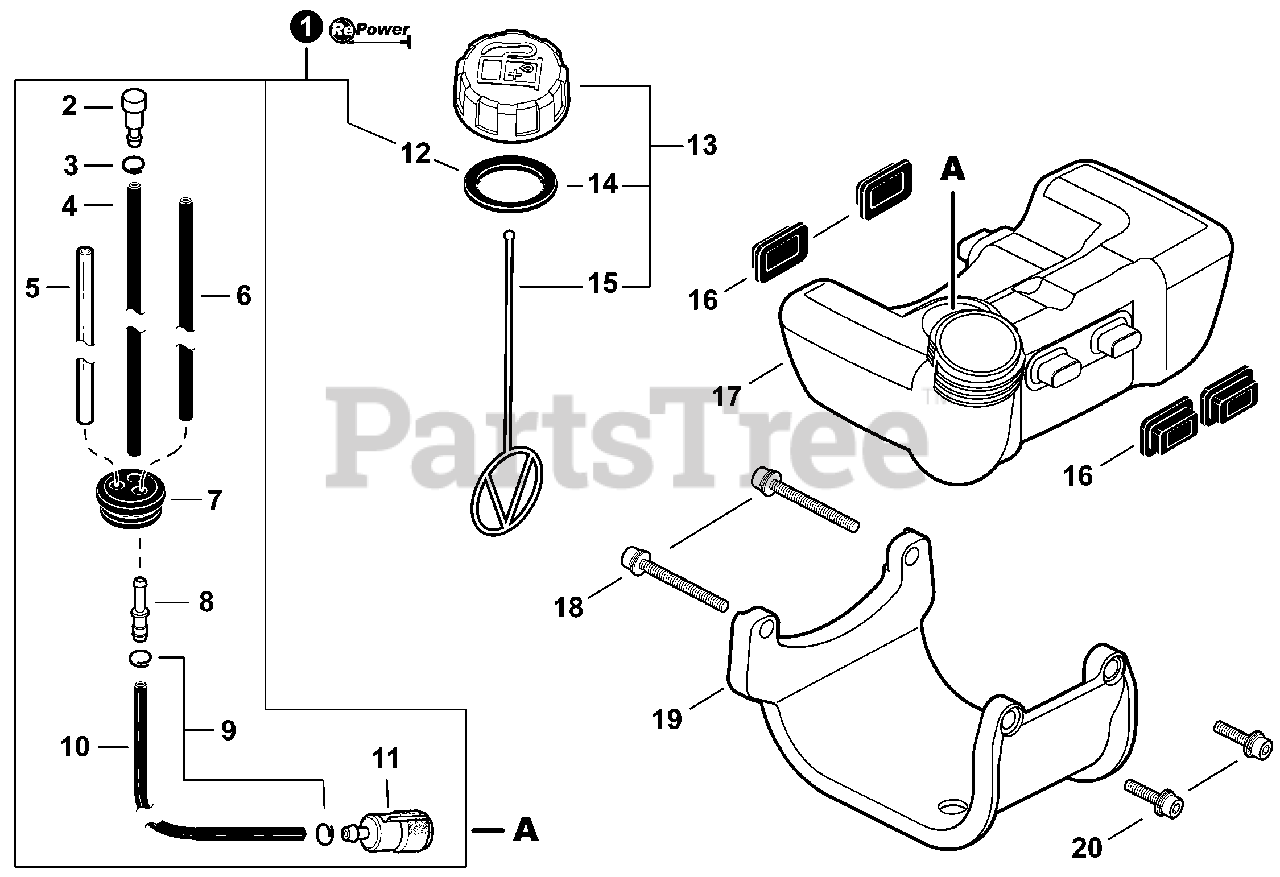

Fuel System Parts Diagram

  • Title
1

Echo Part# 90140BP

FUEL SYSTEM KIT - REPOWER
(Superseded to 84000Y)

Note: Includes ITEMS 2-12

Usually ships in 1 day

$

$30.24

0

2
Usually ships in 1 day

$

$5.46

0

3

Echo Part# V490001230

CLIP Ø6.5MM
Usually ships in 1 day

$

$0.45

0

4

Echo Part# 13011054430

PIPE, FUEL 3×6×105 BLACK
Usually ships in 1 day

$

$1.95

0

5

Echo Part# 13201049730

PIPE, FUEL 3×6×85 CLEAR
Usually ships in 1 day

$

$1.82

0

6

Echo Part# V471003691

PIPE, FUEL 3×5×74 BLACK
Usually ships same day

Not available

$

$

7

Echo Part# 13211555930

GROMMET, FUEL
(Superseded to 13211555931)
Usually ships in 1 day

$

$1.94

0

8

Echo Part# V186000520

CONNECTOR, PIPE Ø5×Ø3.5
Usually ships in 1 day

$

$0.50

0

Usually ships in 1 day

$

$0.45

0

10

Echo Part# V471003730

PIPE, FUEL 3×5×140 BLACK
Usually ships same day

Not available

$

$

11

Echo Part# A369000440

FILTER, FUEL
Usually ships in 1 day

$

$5.72

0

12

Echo Part# V107000150

GASKET, FUEL CAP
Usually ships in 1 day

$

$3.39

0

13

Echo Part# P021041930

CAP ASSY, FUEL

Note: Includes ITEMS 14-15

Usually ships in 1 day

$

$4.71

0

14

Echo Part# V107000150

GASKET, FUEL CAP
Usually ships in 1 day

$

$3.39

0

15

Echo Part# A365000060

CONNECTOR, CAP L= 123
Usually ships in 1 day

$

$0.95

0

16

Echo Part# V420002220

CUSHION, FUEL TANK
Usually ships in 1 day

$

$0.75

0

17
Usually ships in 1 day

$

$18.82

0

18
Usually ships in 1 day

$

$1.07

0

19

Echo Part# A175000080

GUARD, FUEL TANK
Usually ships in 1 day

$

$6.03

0

20
Usually ships in 1 day

$

$0.69

0
