T 2500 - Shindaiwa String Trimmer Clutch Shoe, Piston, Valve Train Parts Diagram

String Trimmer

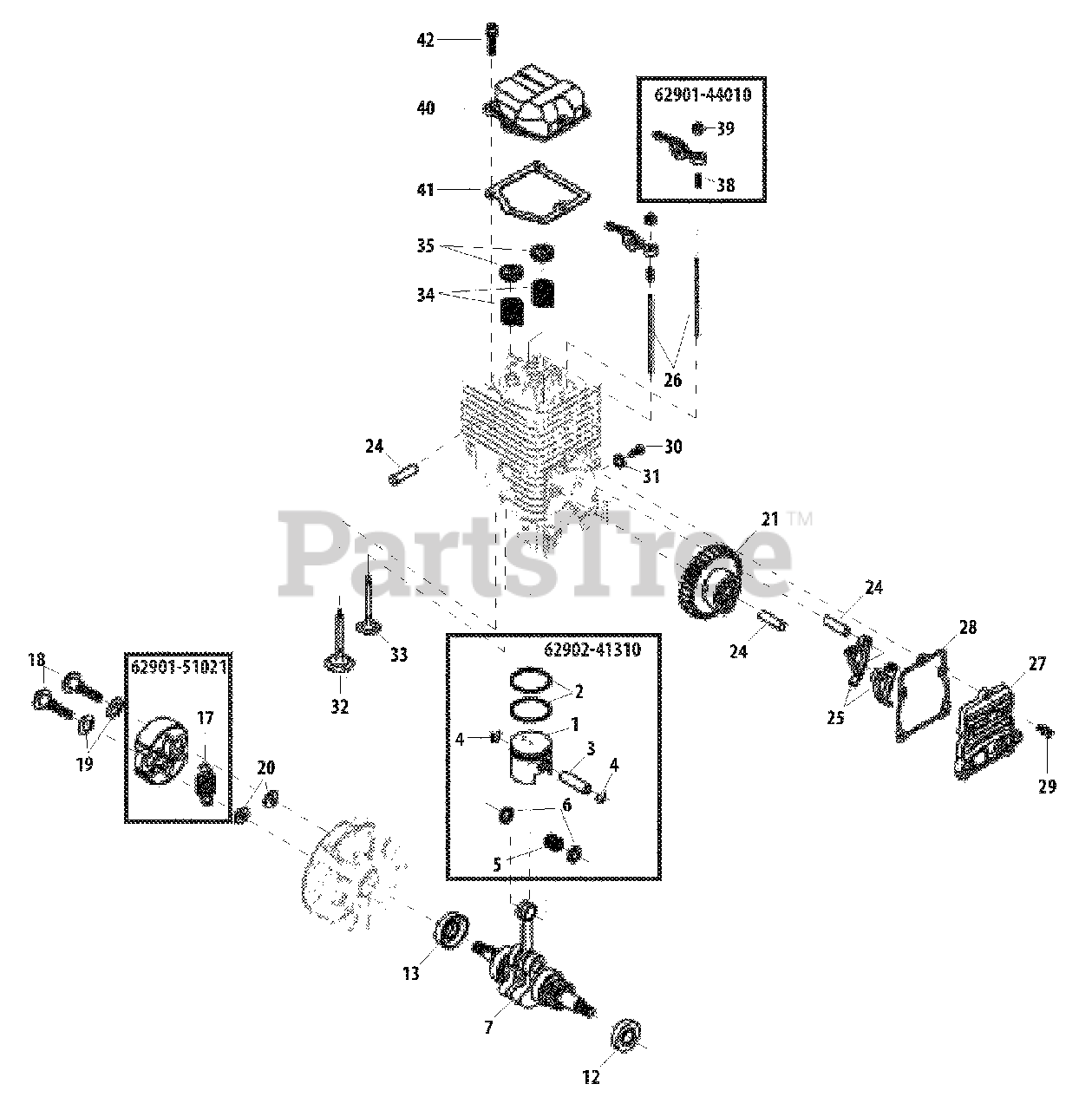

Clutch Shoe, Piston, Valve Train Parts Diagram

  • Title

62902-41310

Echo 62902-41310

PISTON KIT
(Superseded to P021033930)

$61.99

$

Usually ships in 2-4 days

0

1

Echo 62902-41110

PISTON
(Superseded to A100000710)

$34.99

$

In Stock, only 1 left!

0

2

Echo 62902-41120

RING, PISTON
(Superseded to A101000390)

$4.49

$

Usually ships in 2-4 days

0

3

Echo 62901-41210

PIN, PISTON
(Superseded to V607000040)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

5

Echo 62901-41230

BEARING, NEEDLE
(Superseded to V554000010)

$6.49

$

In Stock, only 2 left!

0

6

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0

7

Echo 62902-42020

CRANKSHAFT ASSY
(Superseded to A011000630)

$119.99

$

In Stock, only 1 left!

0

12

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

In Stock, Qty 9

0

13

Echo 62901-42270

SEAL, OIL - 12
(Superseded to V505000120)

$26.99

$

In Stock, only 1 left!

0

62901-51021

Echo 62901-51021

CLUTCH ASSY
(Superseded to A056000530)

$42.99

$

In Stock, Qty 17

0

17

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, Qty 15

0

18

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

19

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 62902-43310

GEAR, CAM
(Superseded to A622000000)

$9.99

$

In Stock, only 2 left!

0

24

Echo 12492-50290

PIN - LOCATING
(Superseded to V623000030)

$1.99

$

Usually ships in 2-4 days

0

25

Echo 62901-43210

FOLLOWER, CAM
(Superseded to 62907-43210)

$12.99

$

Usually ships in 2-4 days

0

26

Echo 62901-43220

PUSHROD
(Superseded to P021037350)

$

$

Not available

27

Echo 62901-43330

COVER, CAM GEAR
(Superseded to A136000010)

$20.99

$

Usually ships in 2-4 days

0

28

Echo 62901-43240

GASKET
(Superseded to V109000110)

$1.99

$

In Stock, only 2 left!

0

29

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 7

0

30

Echo 62901-43310

SCREW - 5
(Superseded to V253000540)

$0.99

$

Usually ships in 2-4 days

0

31

Echo 15401-10028

WASHER
(Superseded to V303000120)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 62902-44110

VALVE, INTAKE
(Superseded to 62902-44111)

$15.99

$

Usually ships in 2-4 days

0

33

Echo 62902-44120

VALVE, EXHAUST
(Superseded to 62902-44121)

$19.99

$

Usually ships in 2-4 days

0

34

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, only 4 left!

0

35

Echo 62901-44140

VALVE RETAINER ASSY
(Superseded to 62908-44140)

$7.99

$

In Stock, only 2 left!

0

62901-44010

Echo 62901-44010

ROCKER ARM ASSY
(Superseded to 62901-44011)

$26.99

$

Usually ships in 2-4 days

0

38

Echo 62901-44220

SCREW, ADJUST
(Superseded to P021037350)

$

$

Not available

39

Echo 62901-44230

LOCKNUT, ADJUSTER
(Superseded to 62901-44231)

$0.99

$

Usually ships in 2-4 days

0

40

Echo 62901-44240

COVER, ROCKER ARM
(Superseded to 81501)

$9.49

$

In Stock, only 1 left!

0

41

Echo 62901-44250

GASKET
(Superseded to V109000120)

$1.99

$

In Stock, Qty 7

0

42

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 7

0
