T 2510 X - Shindaiwa String Trimmer Outer Tube, Throttle Lever Parts Diagram

String Trimmer

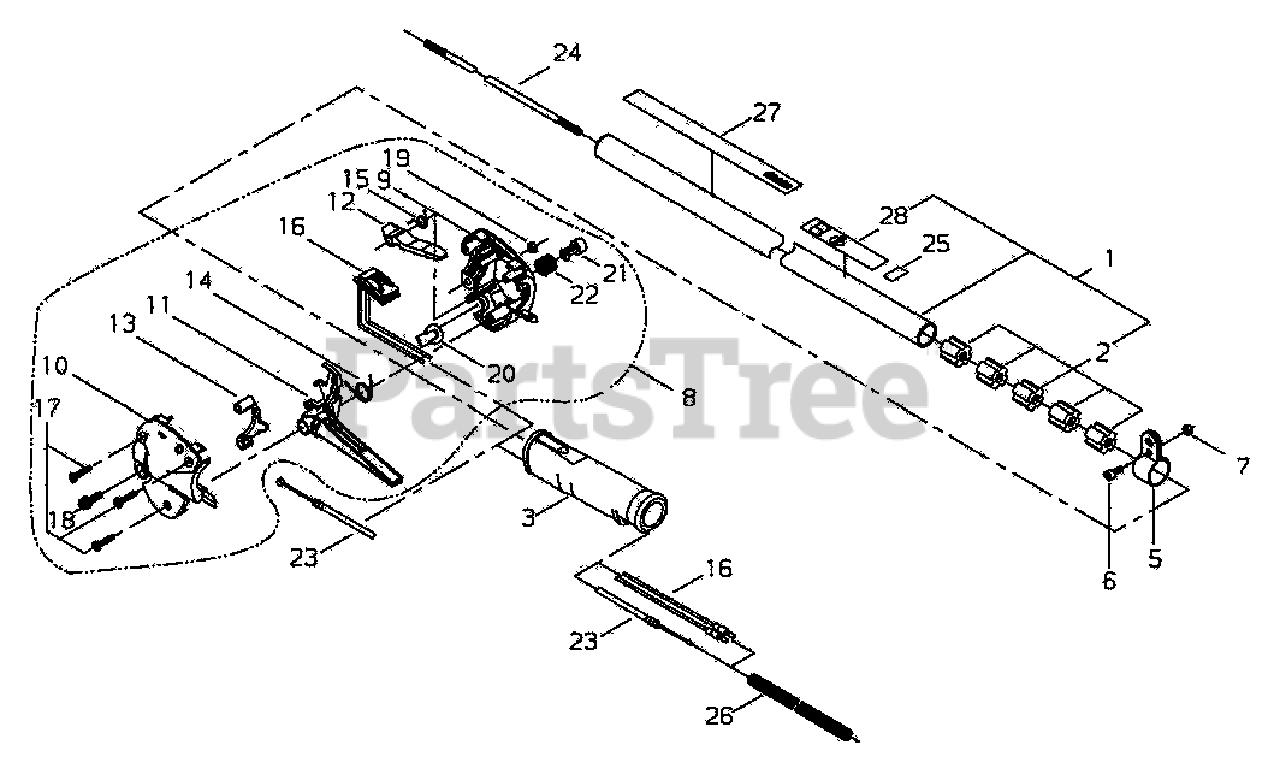

Outer Tube, Throttle Lever Parts Diagram

  • Title

1

Echo 63904-62010

MAIN PIPE ASSY
(Superseded to C050001800)

$

$

Not available

2

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 13

0

28

Echo 19422-00029

LABEL - CAUTION
(Superseded to X505005890)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 63901-62140

GRIP
(Superseded to 63901-62142)

$11.99

$

In Stock, only 1 left!

0

5

Echo 22410-12210

BRACKET
(Superseded to C670000070)

$2.99

$

Usually ships in 2-4 days

0

6

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 63904-62020

THROTTLE LEVER ASSY
(Superseded to C044001100)

$52.99

$

Usually ships in 2-4 days

0

9

Echo 72549-62320

HANDLE, CONTROL - RIGHT
(Superseded to C401000200)

$9.49

$

Usually ships in 2-4 days

0

10

Echo 63002-62330

HANDLE, CONTROL - LEFT
(Superseded to C401000150)

$8.99

$

Usually ships in 2-4 days

0

11

Echo 63002-62340

TRIGGER, THROTTLE
(Superseded to C450000480)

$7.99

$

In Stock, Qty 17

0

12

Echo 63901-62352

LEVER, TRIGGER LOCKOUT
(Superseded to C460000190)

$4.49

$

In Stock, Qty 10

0

13

Echo 63002-62350

LOCKOUT, THROTTLE
(Superseded to C461000020)

$3.49

$

In Stock, Qty 13

0

14

Echo 63880-65350

SPRING
(Superseded to V452000700)

$1.99

$

In Stock, Qty 9

0

15

Echo 63901-62370

SPRING
(Superseded to V452000500)

$1.99

$

In Stock, Qty 5

0

16

Echo 63901-62380

SWITCH, IGNITION
(Superseded to A440001570)

$20.99

$

Usually ships in 2-4 days

0

17

Echo 63880-65360

SCREW - 4X20 -- TAPPING
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 11206-05201

SCREW - 5X20
(Superseded to 9157505020)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$0.99

$

In Stock, Qty 17

0

20

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

In Stock, only 1 left!

0

21

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 70871-65180

SPRING
(Superseded to V450001010)

$0.99

$

In Stock, Qty 6

0

23

Echo 63901-62173

CABLE, THROTTLE
(Superseded to V430003250)

$6.99

$

In Stock, only 3 left!

0

24

Echo 22070-12410

PIPE, MAIN
(Superseded to C504000500)

$19.99

$

In Stock, Qty 17

0

25

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, Qty 7

0

26

Echo 63901-62440

TUBE
(Superseded to V475006830)

$0.99

$

In Stock, only 4 left!

0

27

Echo 19420-00084

LABEL - TRADE
(Superseded to X504002780)

$3.49

$

In Stock, only 1 left!

0
