T 254 - Shindaiwa String Trimmer (SN: T10212001001 - T10212999999) ENGINE Parts Diagram

String Trimmer

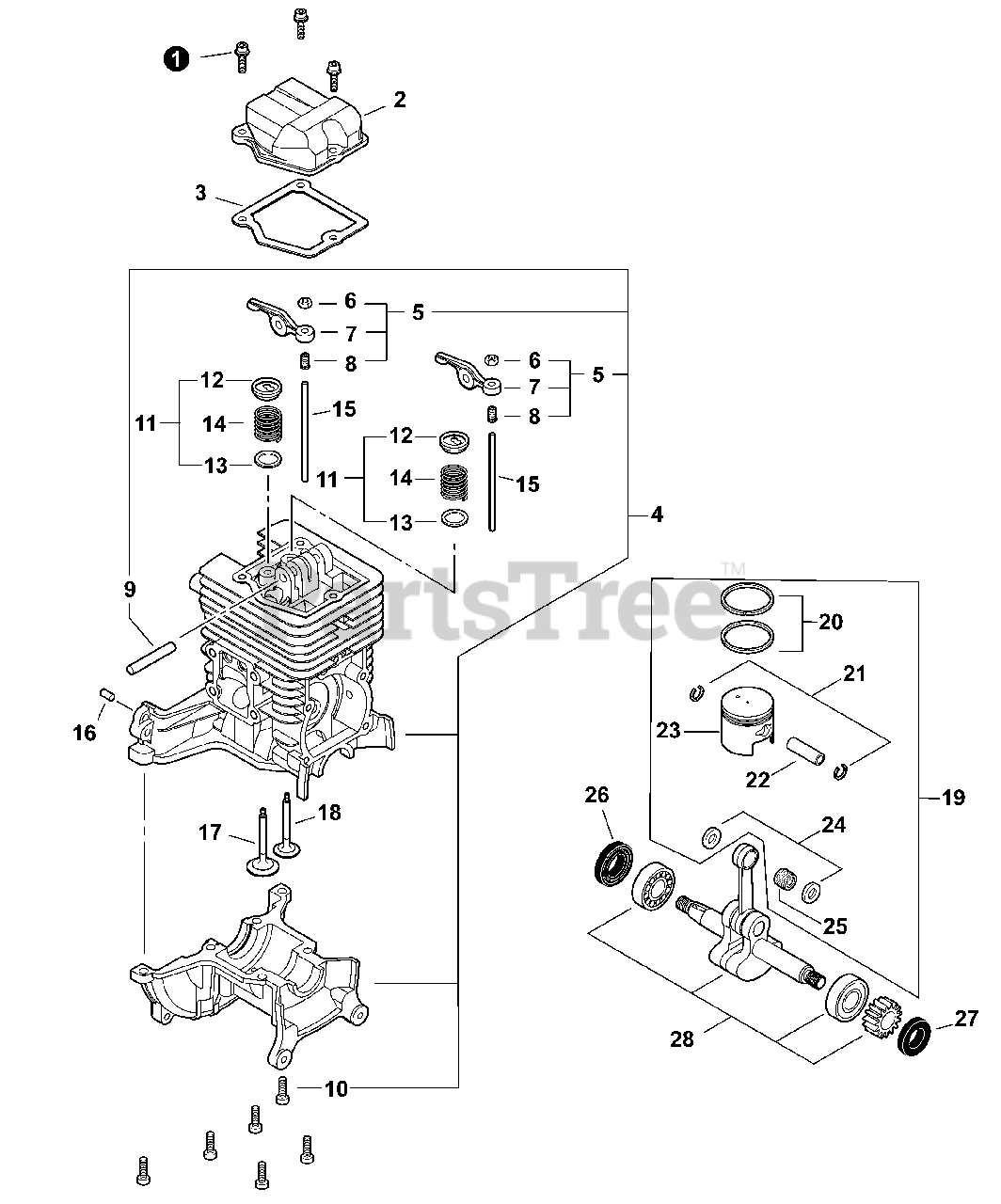

ENGINE Parts Diagram

  • Title

1

Echo V202000350

BOLT M4×14

$1.49

$

In Stock, Qty 16

0

2

Echo A137000020

COVER, ROCKER ARM

$10.99

$

In Stock, only 1 left!

0

3

Echo V109000120

GASKET, ROCKER ARM

$1.99

$

In Stock, Qty 6

0

4

Echo P021034040

CYLINDER & CRANKCASE ASSY

Note: Includes Items 5-10

$288.99

$

Usually ships in 2-4 days

0

5

Echo A610000050

ARM ASSY, ROCKER

Note: Includes Items 6-8

$34.99

$

Usually ships in 2-4 days

0

6

Echo V263000230

NUT, ADJUSTER LOCK 5

$1.49

$

Usually ships in 2-4 days

0

7

Echo A610000060

ARM, ROCKER

$30.99

$

Usually ships in 2-4 days

0

8

Echo A613000010

SCREW, ADJUSTER

$2.99

$

Usually ships in 2-4 days

0

9

Echo V623000040

SHAFT, ROCKER ARM 5×31.8mm

$1.99

$

Usually ships in 2-4 days

0

10

Echo 90010505016

BOLT 5×16

$1.49

$

In Stock, only 2 left!

0

11

Echo P021027590

RETAINER SET, VALVE

Note: Includes Items 12-13

$20.99

$

Usually ships in 2-4 days

0

12

Echo A606000040

RETAINER, VALVE

$8.99

$

Usually ships in 2-4 days

0

13

Echo V392000030

WASHER, VALVE 9

$1.49

$

Usually ships in 2-4 days

0

14

Echo A604000010

SPRING, VALVE

$1.99

$

Usually ships in 2-4 days

0

15

Echo A607000011

PUSHROD

$1.99

$

In Stock, only 4 left!

0

16

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 17

0

17

Echo A603000040

VALVE, INTAKE

$16.99

$

Usually ships in 2-4 days

0

18

Echo A603000050

VALVE, EXHAUST

$21.99

$

Usually ships in 2-4 days

0

19

Echo P021033930

PISTON KIT

Note: Includes Items 20-25

$67.99

$

Usually ships in 2-4 days

0

20

Echo A101000390

RING, PISTON

$4.99

$

Usually ships in 2-4 days

0

21

Echo V580000090

RING, SNAP

$5.99

$

In Stock, only 2 left!

0

22

Echo V607000040

PIN, PISTON

$4.99

$

Usually ships in 2-4 days

0

23

Echo A100000710

PISTON

$38.99

$

In Stock, only 1 left!

0

24

Echo V392000020

WASHER, THRUST 9

$2.99

$

In Stock, Qty 10

0

25

Echo V554000010

BEARING, NEEDLE 9

$7.49

$

In Stock, only 2 left!

0

26

Echo V505000120

SEAL, OIL 12

$28.99

$

Usually ships in 2-4 days

0

27

Echo V505000020

SEAL, OIL 12

$6.99

$

In Stock, Qty 20+

0

28

Echo A011000630

CRANKSHAFT ASSY

$132.99

$

Usually ships in 2-4 days

0
