T 260 (CMXGRAM1130045) (13AQA1ZQ093) - Craftsman Lawn Tractor (2021) Deck Parts Diagram

Lawn Tractor

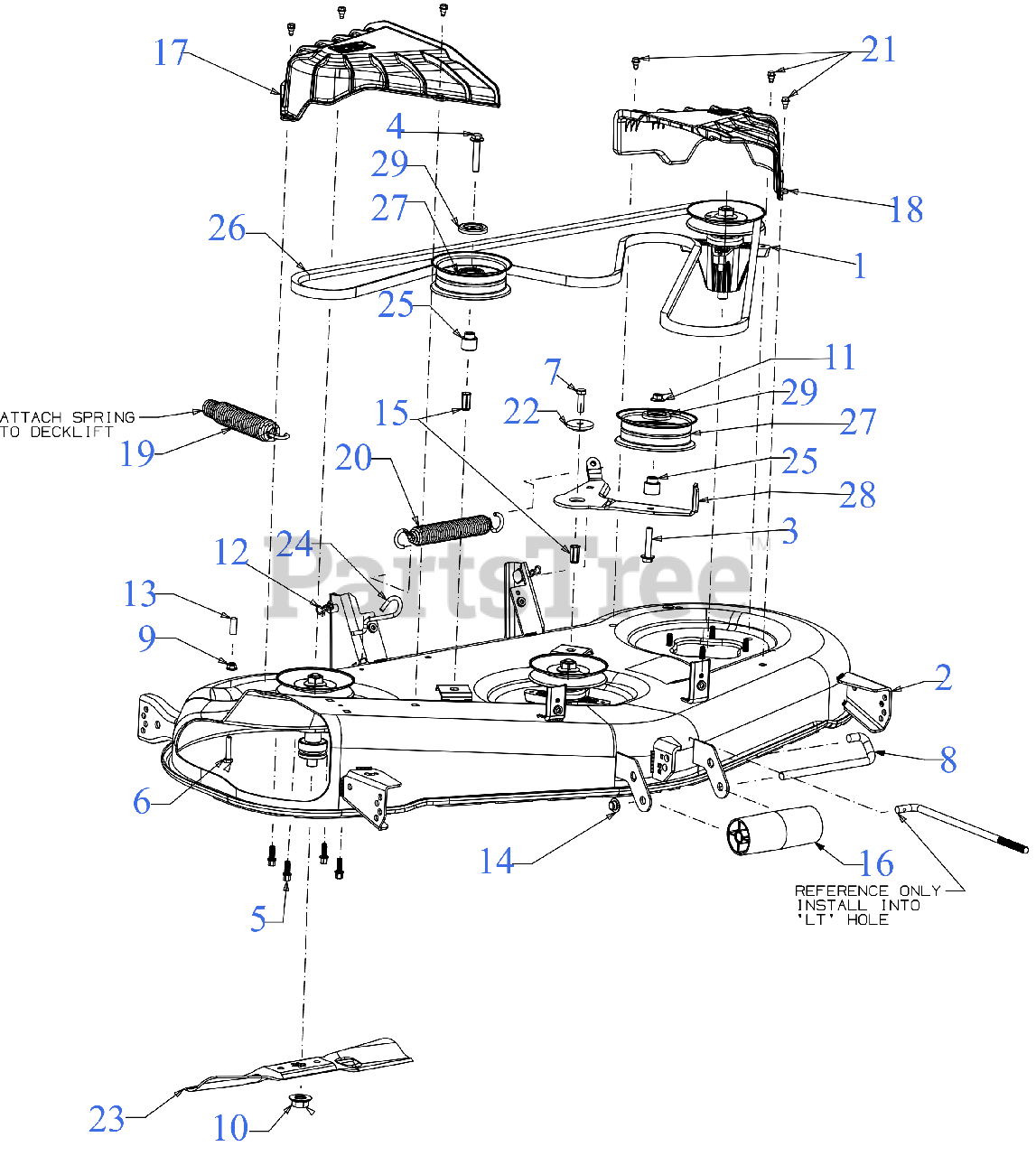

Deck Parts Diagram

  • Title

1

MTD 918-06981

BLADE SPINDLE ASSEMBLY W/PULLEY

Note: (See Separate Breakdown)

$147.99

$

In Stock, Qty 20+

0

1

MTD 490-130-C016

Cub Cadet 50" SPINDLE ASSEMBLY (06981)

Note: Retail Packaged Part

$132.99

$

Usually ships in 3-6 days

0

2

MTD 983-05103C

50" DECK SHELL
(Superseded to 983-05103D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 983-05103C-0606

50" DECK SHELL (MAJESTIC ORANGE) - MAJESTIC ORANGE (0606)

$873.99

$

Usually ships in 3-6 days

0

MTD 983-05103C-0691

50" DECK SHELL (BLACK JACK) - BLACK JACK (0691)

$873.99

$

Usually ships in 3-6 days

0

MTD 983-05103C-4028

50" DECK SHELL (SEARS YELLOW) - SEARS YELLOW (4028)

$873.99

$

Usually ships in 3-6 days

0

$812.99

$

Usually ships in 3-6 days

0

3

MTD 710-06178

SCREW 3/8-16 x 2.0

$5.99

$

In Stock, Qty 20+

0

4

MTD 710-06215

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 6

0

5

MTD 710-06322

SCREW 5/16-18 x .875

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$3.99

$

In Stock, Qty 8

0

7

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

8

MTD 711-06377

ROLLER PIN 1/2 x 7.31

$19.99

$

In Stock, Qty 12

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

11

MTD 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-05005

BOW TIE COTTER PIN

$4.49

$

In Stock, Qty 20+

0

13

MTD 720-05075

VINYL CAP

$3.99

$

Usually ships in 3-6 days

0

14

MTD 726-0299

PUSH CAP

$7.49

$

In Stock, Qty 20+

0

15

MTD 728-05016

NUT RIVET 3/8-16

$5.99

$

In Stock, Qty 20+

0

16

MTD 731-05679B

ROLLER

$16.99

$

In Stock, Qty 20+

0

17

MTD 731-09968

SPINDLE COVER (RH)
(Superseded to 731-09968B)

$26.99

$

In Stock, only 2 left!

0

18

MTD 731-09969A

SPINDLE COVER (LH)
(Superseded to 731-09969C)

$26.99

$

In Stock, only 3 left!

0

19

MTD 732-05242A

LIFT ASSIST SPRING (LARGE)
(Superseded to 732-05242C)

$20.99

$

Usually ships in 3-6 days

0

20

MTD 732-05360A

SPRING 1.25" DIA x 8.5" LONG

$34.99

$

Usually ships in 3-6 days

0

21

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

22

MTD 738-05082

SHOULDER SPACER

$7.99

$

In Stock, Qty 20+

0

23

MTD 942-05052A

17.27" BLADE (2N1)

$28.99

$

In Stock, Qty 20+

0

23

MTD 490-110-C155

Cub Cadet 50" HI LIFT BLADE SET

Note: Retail Packaged Part

$82.99

$

In Stock, Qty 6

0

23

MTD 490-110-M155

Genuine Factory Parts 50" BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 1 left!

0

23

MTD 942-05052-L

50" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-05052-L0606)

$30.99

$

In Stock, Qty 19

0

23

MTD 490-110-C182

Cub Cadet 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 1 left!

0

23

MTD 490-110-M182

Genuine Factory Parts 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 2 left!

0

23

MTD 942-05052-X

50" 6 PT STAR XTREME MULCH BLADE

$30.99

$

In Stock, Qty 6

0

23

MTD 490-110-C178

Cub Cadet 50" XTREME BLADE SET

Note: Retail Packaged Part

$98.99

$

In Stock, only 1 left!

0

23

MTD 490-110-M178

Genuine Factory Parts 50" XTREME MULCH BLADE SET

Note: Retail Packaged Part

$98.99

$

In Stock, only 4 left!

0

24

MTD 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

Usually ships in 3-6 days

0

25

MTD 748-05037B

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

26

MTD 954-04077A

V-BELT B SEC x 134

$82.99

$

In Stock, Qty 20+

0

26

MTD OCC-754-04077

Cub Cadet 50" DECK BELT

Note: Retail Packaged Part

$82.99

$

In Stock, only 3 left!

0

26

MTD 490-501-M021

Genuine Factory Parts 50" DECK BELT

Note: Retail Packaged Part

$82.99

$

In Stock, only 2 left!

0

27

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$42.99

$

In Stock, Qty 20+

0

28

MTD 783E08309B

IDLER PIVOT BRACKET

$39.99

$

In Stock, Qty 9

0

29

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
