T 260 - Shindaiwa String Trimmer Fan Cover Parts Diagram

String Trimmer

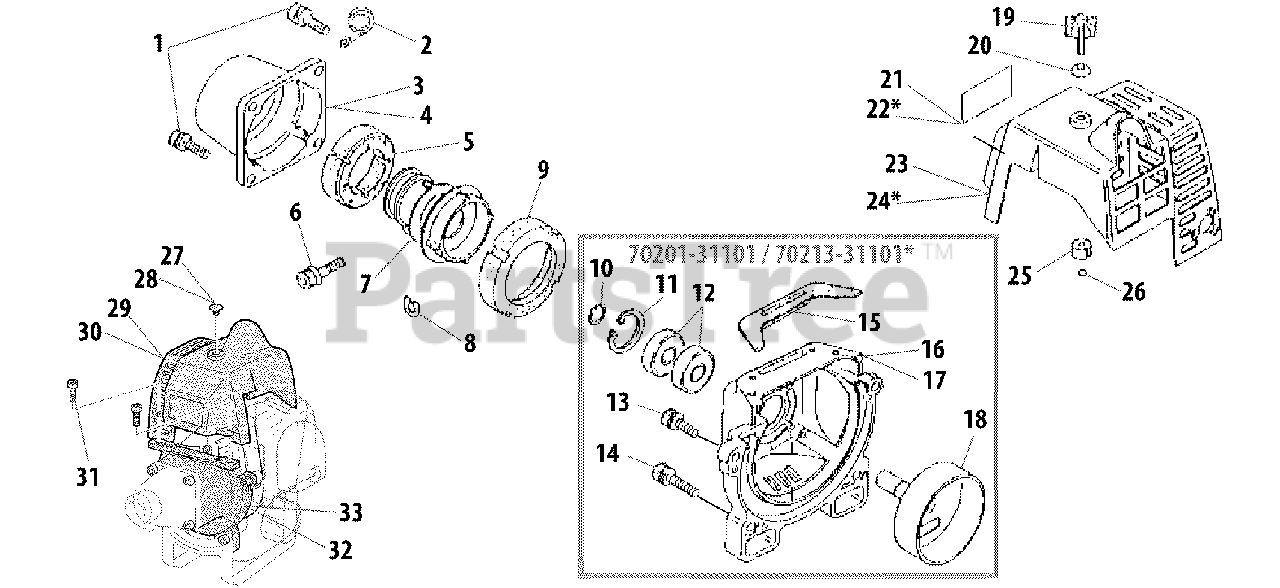

Fan Cover Parts Diagram

  • Title

1

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$1.49

$

In Stock, Qty 8

0

2

Echo 20024-83152

GUIDE, CABLE
(Superseded to C487000220)

$1.99

$

In Stock, only 1 left!

0

3

Echo 70135-31470

CAP
(Superseded to A575000460)

$8.99

$

In Stock, only 1 left!

0

4

Echo 70118-31470

CAP
(Superseded to A575000310)

$8.99

$

Usually ships in 2-4 days

0

5

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 5

0

7

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$21.99

$

In Stock, only 2 left!

0

8

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

9

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.99

$

In Stock, only 2 left!

0

A

Echo 70201-31101

FAN CASE ASSY - RED

$108.99

$

Usually ships in 2-4 days

0

A

Echo 70213-31101

FAN CASE ASSY - BLUE
(Superseded to P021030470)

$

$

Not available

10

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

11

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

12

Echo 37004-63310

BEARING, BALL - 6000
(Superseded to 02006-06000)

$15.99

$

In Stock, Qty 20+

0

13

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

14

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$1.49

$

In Stock, only 4 left!

0

15

Echo 20110-31130

CUSHION

$2.49

$

Usually ships in 2-4 days

0

16

Echo 20134-31110

COVER, FAN
(Superseded to A172001190)

$50.99

$

Usually ships in 2-4 days

0

17

Echo 70213-31110

CASE, FAN - BLUE
(Superseded to 70213-31111)

$55.99

$

Usually ships in 2-4 days

0

18

Echo 20018-31330

DRUM, CLUTCH
(Superseded to A556000770)

$53.99

$

In Stock, only 1 left!

0

19

Echo 20018-31251

THUMBSCREW
(Superseded to V299000420)

$3.99

$

In Stock, Qty 5

0

20

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$1.49

$

In Stock, Qty 20+

0

21

Echo 70201-32120

LABEL - MODEL
(Superseded to X504002210)

$1.99

$

In Stock, Qty 9

0

22

Echo 19406-00027

LABEL

$4.99

$

Usually ships in 2-4 days

0

23

Echo 70135-31221

COVER, ENGINE
(Superseded to 20134-32110)

$16.99

$

Usually ships in 2-4 days

0

24

Echo 70213-31220

COVER, ENGINE - BLUE
(Superseded to 70213-32110)

$16.99

$

Usually ships in 2-4 days

0

25

Echo 20018-31260

INSULATOR
(Superseded to V353000430)

$1.99

$

In Stock, Qty 6

0

26

Echo 20018-31270

CLIP
(Superseded to V490000680)

$1.49

$

In Stock, Qty 6

0

27

Echo 20134-32130

PLUG
(Superseded to V162000360)

Note: PR 163

$0.99

$

In Stock, Qty 9

0

28

Echo 70213-32130

PLUG - BLUE
(Superseded to V491000300)

$1.49

$

In Stock, Qty 10

0

29

Echo 20134-32110

COVER, ENGINE
(Superseded to A160001520)

$16.99

$

Usually ships in 2-4 days

0

30

Echo 70213-32110

COVER, ENGINE - BLUE
(Superseded to A160001530)

$16.99

$

Usually ships in 2-4 days

0

31

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$1.49

$

In Stock, only 4 left!

0

32

Echo 20134-31111

CASE, FAN - RED
(Superseded to A172001190)

$50.99

$

Usually ships in 2-4 days

0

33

Echo 70213-31111

CASE, FAN - BLUE

$55.99

$

Usually ships in 2-4 days

0
