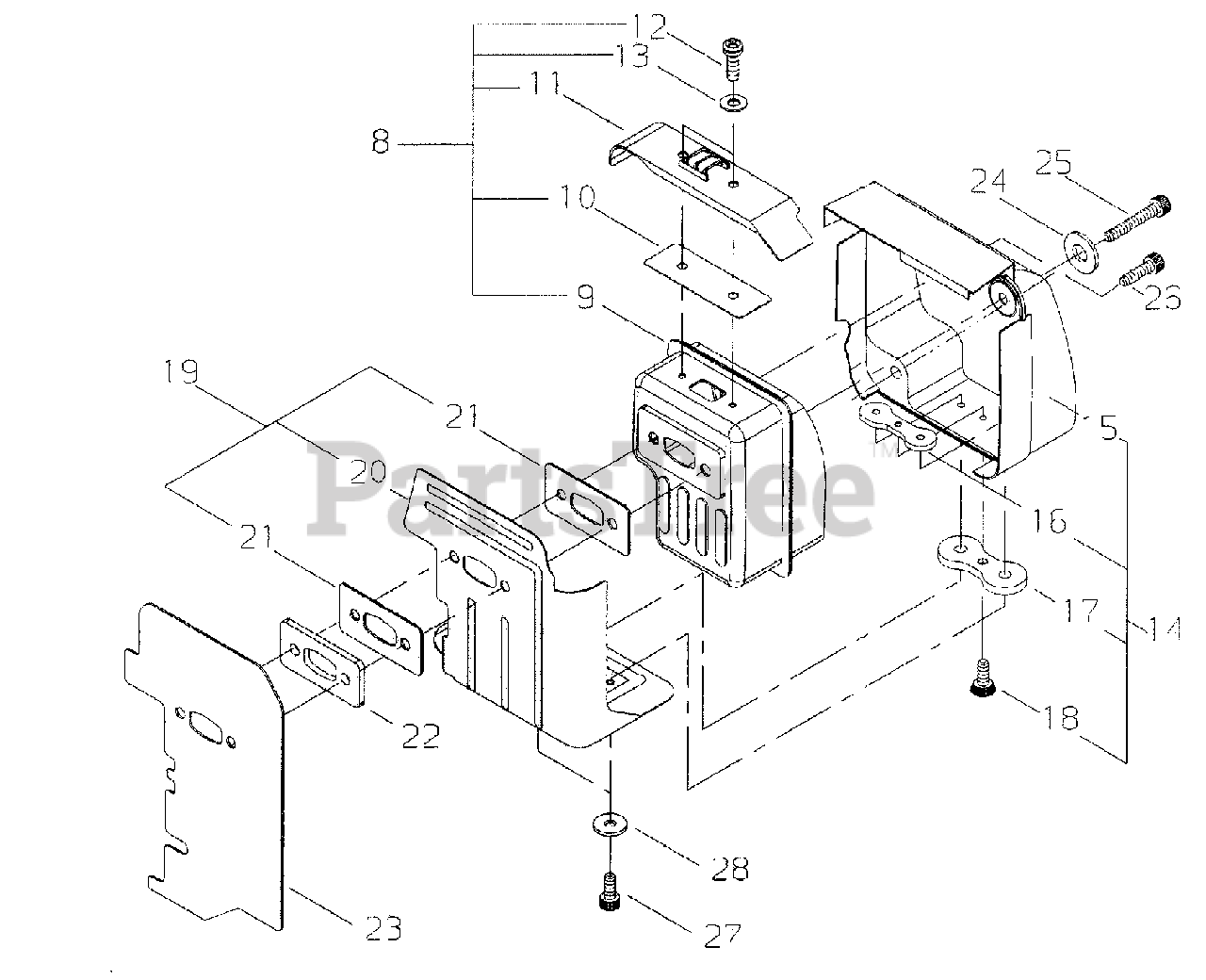

T 261 B - Shindaiwa String Trimmer Muffler Parts Diagram

String Trimmer

Muffler Parts Diagram

  • Title

8

Echo 62028-15010

MUFFLER ASSY
(Superseded to A030000200)

$

$

Not available

9

Echo 62028-15110

MUFFLER
(Superseded to A300001060)

$202.99

$

Usually ships in 2-4 days

0

10

Echo 62028-15360

SCREEN, SPARK ARRESTER
(Superseded to A310000200)

$3.49

$

In Stock, only 1 left!

0

11

Echo 62028-15160

COVER, SPARK ARRESTER
(Superseded to A313001270)

$12.99

$

Usually ships in 2-4 days

0

12

Echo 11203-04060

SCREW M4×6
(Superseded to 9157804006)

$1.49

$

In Stock, only 1 left!

0

13

Echo 01613-04080

WASHER 4 MM
(Superseded to 90060300004)

$0.99

$

In Stock, Qty 6

0

14

Echo 62028-15410

COVER ASSY, MUFFLER
(Superseded to A320000670)

$44.99

$

Usually ships in 2-4 days

0

15

Echo 62028-15310

COVER, MUFFLER
(Superseded to A320000680)

$33.99

$

Usually ships in 2-4 days

0

16

Echo 62028-15380

PLATE
(Superseded to A323000030)

$3.49

$

Usually ships in 2-4 days

0

17

Echo 62028-15390

SPACER

$4.99

$

Usually ships in 2-4 days

0

18

Echo 01201-04080

SCREW 4×8
(Superseded to 90021204008)

$0.99

$

In Stock, only 4 left!

0

19

Echo 62028-15210

DEFLECTOR ASSY, EXHAUST HEAT
(Superseded to V104001230)

$18.99

$

Usually ships in 2-4 days

0

20

Echo 62028-15320

HEAT SHIELD, EXHAUST

$18.99

$

Usually ships in 2-4 days

0

21

Echo 62028-15340

GASKET, EXHAUST
(Superseded to V104001250)

$2.99

$

In Stock, Qty 7

0

22

Echo 62028-15330

SPACER
(Superseded to A312000010)

$11.99

$

Usually ships in 2-4 days

0

23

Echo 62028-15350

GASKET, MUFFLER
(Superseded to V104001260)

$22.99

$

Usually ships in 2-4 days

0

24

Echo 01610-05085

WASHER SS 5 MM
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 01020-05655

BOLT M5×65
(Superseded to 9110905065)

$2.99

$

Usually ships in 2-4 days

0

26

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 9

0

27

Echo 01020-05100

BOLT M5×10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 8

0

28

Echo 15401-10010

WASHER Ø15×Ø5.2×1.6
(Superseded to V303000140)

$1.49

$

In Stock, Qty 6

0
