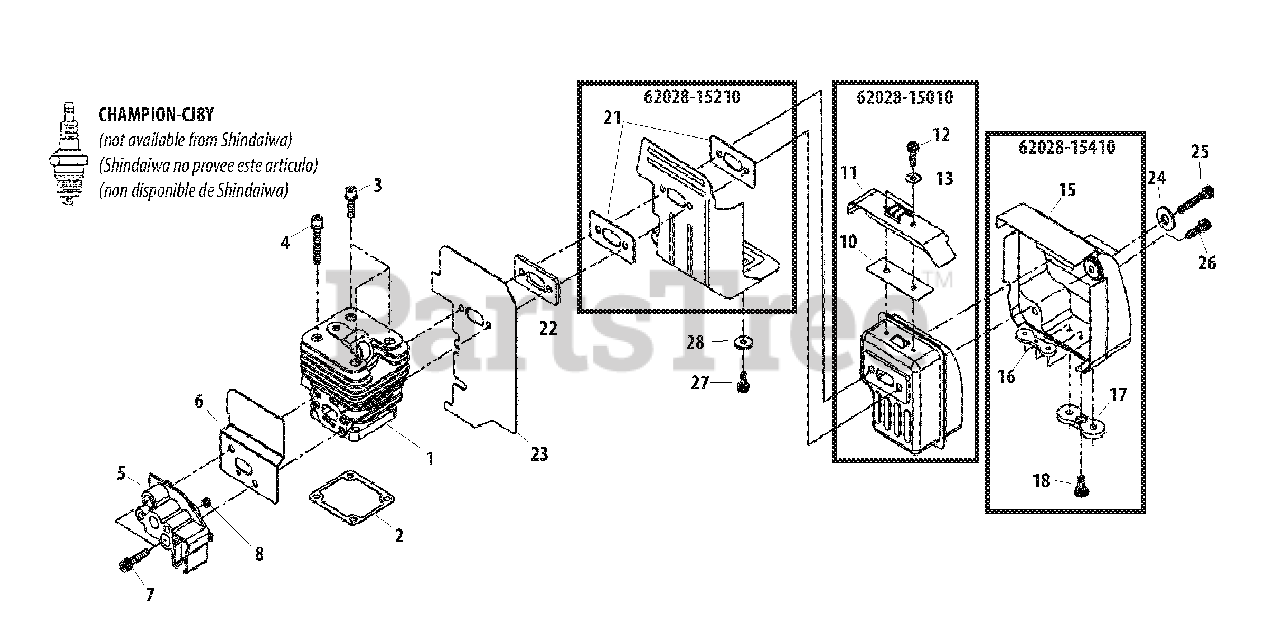

T 261 - Shindaiwa String Trimmer Cylinder, Muffler Parts Diagram

String Trimmer

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 62028-12110

CYLINDER
(Superseded to A130001270)

$77.99

$

Usually ships in 2-4 days

0

2

Echo 20018-12120

GASKET, CYLINDER
(Superseded to V100000430)

$2.99

$

In Stock, Qty 11

0

3

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$1.49

$

In Stock, Qty 13

0

4

Echo 11020-05350

SCREW - 5X35
(Superseded to V203000750)

$1.99

$

In Stock, only 4 left!

0

5

Echo 62028-12210

INSULATOR
(Superseded to 62028-12211)

$15.99

$

Usually ships in 2-4 days

0

6

Echo 62028-12220

GASKET
(Superseded to V103000900)

$4.99

$

Usually ships in 2-4 days

0

7

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

$4.49

$

In Stock, only 3 left!

0

8

Echo 20024-12260

NUT
(Superseded to V263000180)

$1.49

$

In Stock, Qty 6

0

62028-15010

Echo 62028-15010

MUFFLER ASSY
(Superseded to A030000200)

$

$

Not available

10

Echo 62028-15360

SCREEN, SPARK ARRESTOR
(Superseded to A310000200)

$2.99

$

In Stock, only 1 left!

0

11

Echo 62028-15160

TAIL PLATE
(Superseded to A313001270)

$11.99

$

Usually ships in 2-4 days

0

12

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$1.49

$

In Stock, Qty 7

0

13

Echo 01613-04080

WASHER - 4
(Superseded to 90060300004)

$0.99

$

In Stock, Qty 6

0

62028-15410

Echo 62028-15410

MUFFLER COVER ASSY
(Superseded to A320000670)

$41.99

$

Usually ships in 2-4 days

0

15

Echo 62028-15310

COVER, MUFFLER
(Superseded to A320000680)

$31.99

$

In Stock, only 1 left!

0

16

Echo 62028-15380

PLATE
(Superseded to A323000030)

$3.49

$

Usually ships in 2-4 days

0

17

Echo 62028-15390

SPACER

$4.49

$

Usually ships in 2-4 days

0

18

Echo 01201-04080

SCREW - 4X8
(Superseded to 90021204008)

$0.99

$

In Stock, Qty 8

0

62028-15210

Echo 62028-15210

GASKET, EXHAUST
(Superseded to V104001230)

$17.99

$

Usually ships in 2-4 days

0

21

Echo 62028-15340

GASKET
(Superseded to V104001250)

$2.99

$

In Stock, Qty 8

0

22

Echo 62028-15330

SPACER
(Superseded to A312000010)

$11.99

$

Usually ships in 2-4 days

0

23

Echo 62028-15350

GASKET
(Superseded to V104001260)

$20.99

$

Usually ships in 2-4 days

0

24

Echo 01610-05085

WASHER - 5
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 01020-05655

SCREW - 5X65
(Superseded to 9110905065)

$2.99

$

Usually ships in 2-4 days

0

26

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, only 3 left!

0

27

Echo 01020-05100

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 10

0

28

Echo 15401-10010

COLLAR
(Superseded to V303000140)

$1.49

$

In Stock, Qty 8

0
