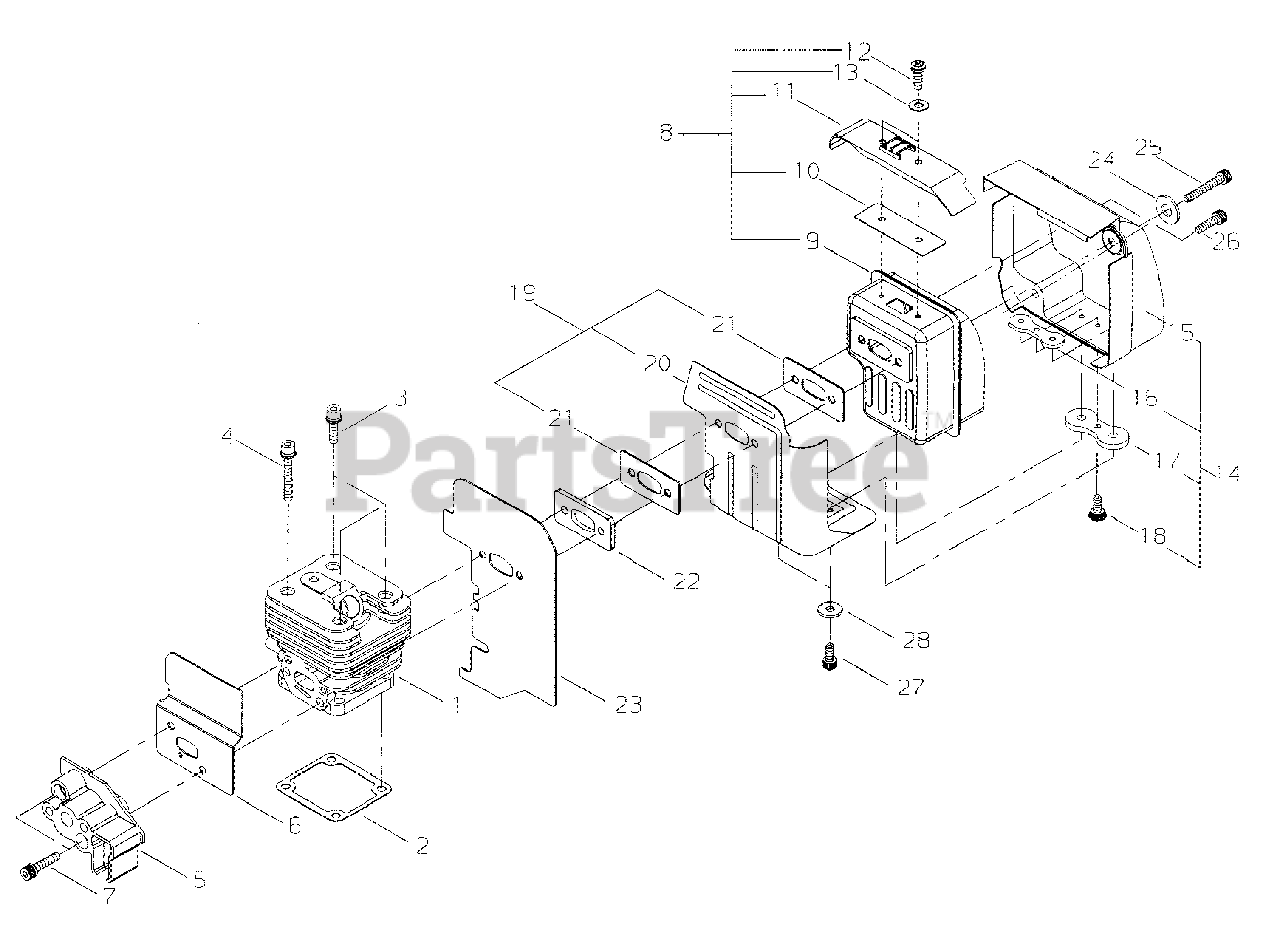

T 261 X - Shindaiwa String Trimmer Cylinder, Muffler Parts Diagram

String Trimmer

Cylinder, Muffler Parts Diagram

  • Title

1

Echo A130001270

CYLINDER
(Superseded to A130001770)

Note: 62028-12110

$83.99

$

In Stock, only 1 left!

0

2

Echo V100000430

GASKET, CYLINDER

Note: 20018-12120

$2.99

$

In Stock, Qty 5

0

3

Echo V203000720

BOLT M5×16
(Superseded to 9112205016)

Note: 11020-05160

$1.49

$

In Stock, only 2 left!

0

4

Echo V203000750

BOLT M5×35

Note: 11020-05350

$1.99

$

In Stock, only 4 left!

0

5

Echo A200000600

INSULATOR

Note: 62028-12211

$16.99

$

Usually ships in 2-4 days

0

6

Echo V103000900

HEAT SHIELD, INTAKE

Note: 62028-12220

$5.49

$

Usually ships in 2-4 days

0

7

Echo V203000580

BOLT M5×30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

8

Echo A030000200

MUFFLER ASSY
(Superseded to Discontinued)

Note: 62028-15010

$

$

Not available

9

Echo A300001060

MUFFLER

Note: 62028-15110

$202.99

$

Usually ships in 2-4 days

0

10

Echo A310000200

SCREEN, SPARK ARRESTER

Note: 62028-15360

$3.49

$

In Stock, only 1 left!

0

11

Echo A313001270

COVER, SPARK ARRESTER

Note: 62028-15160

$12.99

$

Usually ships in 2-4 days

0

12

Echo 9157804006

SCREW M4×6

Note: 11203-04060

$1.49

$

In Stock, only 1 left!

0

13

Echo 90060300004

WASHER 4 MM

Note: 01613-04080

$0.99

$

In Stock, Qty 6

0

14

Echo A320000670

COVER ASSY, MUFFLER

Note: 62028-15410

$44.99

$

Usually ships in 2-4 days

0

15

Echo A320000680

COVER, MUFFLER

Note: 62028-15310

$33.99

$

Usually ships in 2-4 days

0

16

Echo A323000030

PLATE

Note: 62028-15380

$3.49

$

Usually ships in 2-4 days

0

17

Echo A323000040

SPACER

Note: 62028-15390

$4.49

$

Usually ships in 2-4 days

0

18

Echo 90021204008

SCREW 4×8

Note: 01201-04080

$0.99

$

In Stock, only 4 left!

0

19

Echo V104001230

DEFLECTOR ASSY, EXHAUST HEAT

Note: 62028-15210

$18.99

$

Usually ships in 2-4 days

0

20

Echo V104001240

HEAT SHIELD, EXHAUST

Note: 62028-15320

$17.99

$

Usually ships in 2-4 days

0

21

Echo V104001250

GASKET, EXHAUST

Note: 62028-15340

$2.99

$

In Stock, Qty 7

0

22

Echo A312000010

SPACER

Note: 62028-15330

$11.99

$

Usually ships in 2-4 days

0

23

Echo V104001260

GASKET, MUFFLER

Note: 62028-15350

$22.99

$

Usually ships in 2-4 days

0

24

Echo 90060400005

WASHER SS 5 MM

Note: 01610-05085

$0.99

$

In Stock, Qty 20+

0

25

Echo 9110905065

BOLT M5×65

Note: 01020-05655

$2.99

$

Usually ships in 2-4 days

0

26

Echo 90010505025

BOLT 5×25

Note: 01020-05250

$1.49

$

In Stock, Qty 9

0

27

Echo 90010505010

BOLT M5×10

Note: 01020-05100

$1.49

$

In Stock, Qty 8

0

28

Echo V303000140

WASHER Ø15×Ø5.2×1.6

Note: 15401-10010

$1.49

$

In Stock, Qty 6

0
