T 261 X - Shindaiwa String Trimmer Gear Case Parts Diagram

String Trimmer

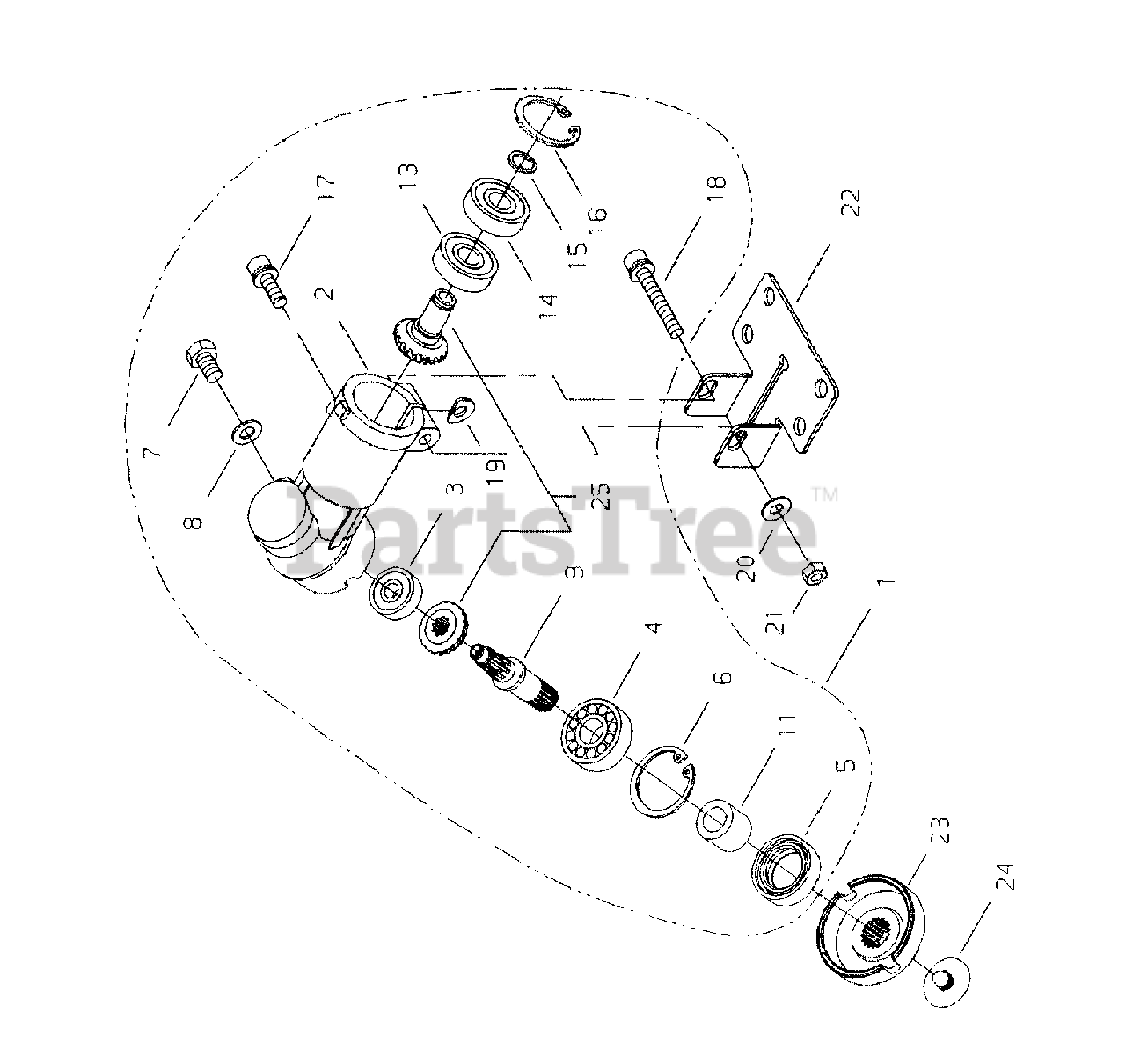

Gear Case Parts Diagram

  • Title

1

Echo C051000490

GEAR CASE ASSY
(Superseded to C051000491)

Note: 63030-63023

$213.99

$

Usually ships in 2-4 days

0

2

Echo C531000570

CASE, GEAR

Note: 22420-13110

$25.99

$

In Stock, only 1 left!

0

3

Echo 9400230608

BEARING, BALL - 608DDU

Note: 02036-00608

$9.49

$

Usually ships in 2-4 days

0

4

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

Note: 37074-63310

$10.99

$

In Stock, only 2 left!

0

5

Echo V510000020

SEAL, OIL

Note: 22420-13140

$6.49

$

In Stock, Qty 11

0

6

Echo 9242428000

RING, RETAINING - 28
(Superseded to 90070200028)

Note: 02432-28120

$1.99

$

In Stock, Qty 20+

0

7

Echo 9103006010

BOLT - 6X10

Note: 01014-06100

$1.49

$

Usually ships in 2-4 days

0

8

Echo 90060000006

WASHER - 6

Note: 01610-06080

$0.99

$

In Stock, Qty 8

0

9

Echo C534000690

GEAR - SHAFT

Note: 22495-13210

$20.99

$

Usually ships in 2-4 days

0

11

Echo V356000500

SPACER

Note: 22000-13230

$4.49

$

In Stock, only 3 left!

0

13

Echo 90080000609

BEARING, BALL - 609

Note: 02000-00609

$10.99

$

In Stock, Qty 6

0

14

Echo 90080400609

BEARING, BALL 609ZZ

Note: 02002-00609

$16.99

$

In Stock, only 3 left!

0

15

Echo 90070600009

RING, RETAINING - 10

Note: 22420-13350

$1.49

$

In Stock, Qty 17

0

16

Echo 9242424000

RING, RETAINING - 24

Note: 02432-24120

$1.49

$

In Stock, only 4 left!

0

17

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, only 4 left!

0

18

Echo V203000600

SCREW - 5X35
(Superseded to V203000601)

Note: 11022-05350

$1.49

$

In Stock, Qty 20+

0

19

Echo V340000300

SHIM

Note: 22000-13420

$1.49

$

In Stock, Qty 6

0

28

Echo P021027220

GEAR SET

Note: 60088-98310

$53.99

$

Usually ships in 2-4 days

0

20

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

22

Echo C551000150

PLATE, SHIELD MOUNTING

Note: 72480-16130

$4.99

$

In Stock, only 2 left!

0

23

Echo C535000890

ADAPTOR, BLADE - UPPER
(Superseded to C535000891)

Note: 22420-13510

$21.99

$

Usually ships in 2-4 days

0

24

Echo C535000850

ADAPTOR, BLADE - LOWER
(Superseded to C535000851)

Note: 22000-13252

$17.99

$

In Stock, only 1 left!

0

25

Echo C535000860

GUARD

Note: 22000-13290

$2.99

$

In Stock, only 3 left!

0

26

Echo V205000480

BOLT - 8 -- LEFT HAND

Note: 22000-13512

$2.99

$

In Stock, Qty 9

0

27

Echo V641000150

CLIP
(Superseded to V641000250)

Note: 22000-13530

$2.99

$

In Stock, Qty 11

0
