T 27 - Shindaiwa String Trimmer Outer Tube Parts Diagram

String Trimmer

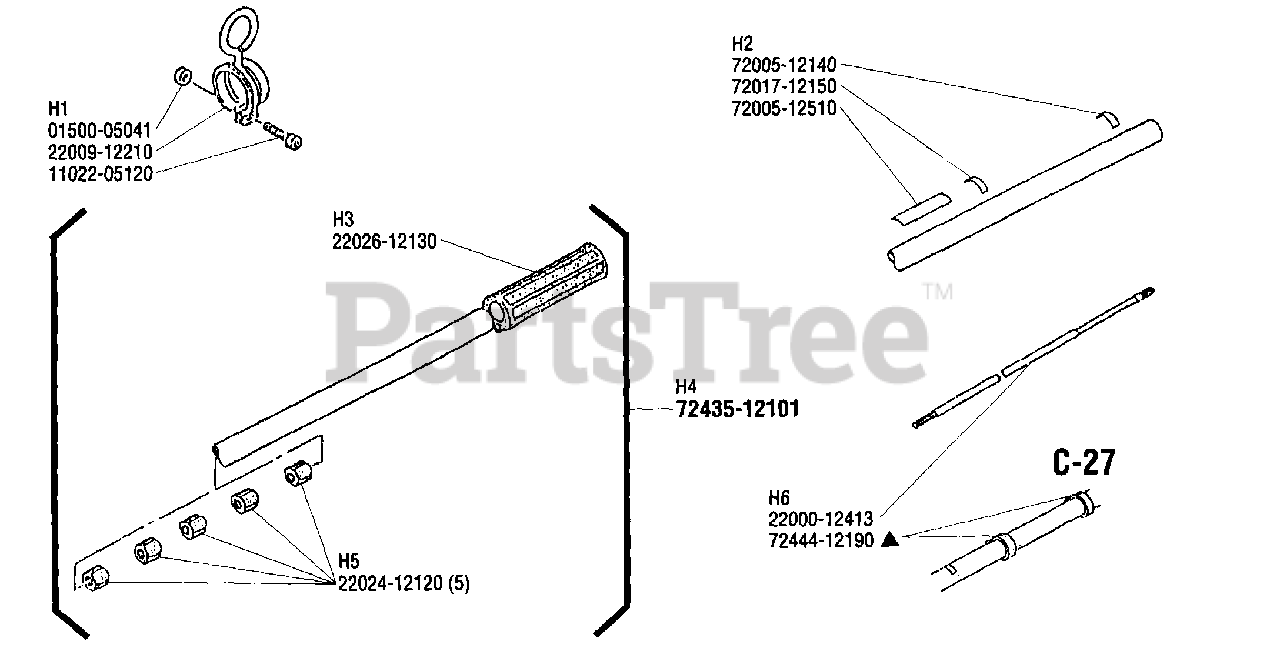

Outer Tube Parts Diagram

  • Title

H1-01500-05041

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

H1-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

H1-22009-12210

Echo 22009-12210

SWIVEL HANGER
(Superseded to C063000010)

$10.99

$

Usually ships in 2-4 days

0

H2-72005-12140

Echo 72005-12140

LABEL, CAUTION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 9

0

H2-72005-12510

Echo 72005-12510

LABEL, NAME PLATE
(Superseded to 19420-00028)

$

$

Not available

H2-72017-12150

Echo 72017-12150

LABEL, HANDLE
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

H4-72435-12101

Echo 72435-12101

OUTER PIPE ASSY
(Superseded to 72441-12100)

$94.99

$

Usually ships in 2-4 days

0

H3-22026-12130

Echo 22026-12130

GRIP
(Superseded to C412000360)

$14.99

$

In Stock, only 2 left!

0

H5-22024-12120

Echo 22024-12120

BUSHING, SHAFT
(Superseded to C501000040)

$7.99

$

In Stock, Qty 5

0

H6-22000-12413

Echo 22000-12413

SHAFT, MAIN
(Superseded to C504000620)

$25.99

$

In Stock, only 1 left!

0

H6-72444-12190

Echo 72444-12190

BAND
(Superseded to C487000230)

Note: For C-27

$2.49

$

In Stock, Qty 9

0
