T 270 - Shindaiwa String Trimmer Outer Tube Parts Diagram

String Trimmer

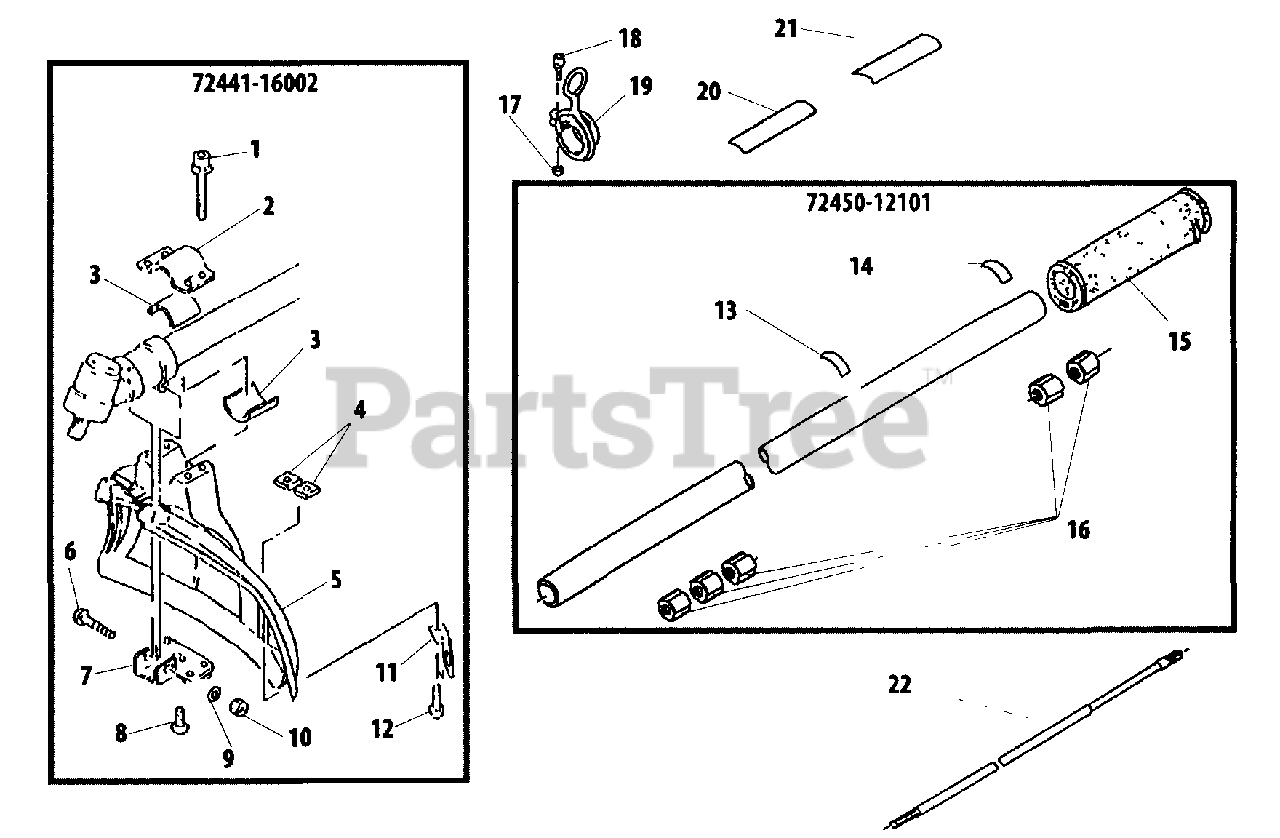

Outer Tube Parts Diagram

  • Title

72441-16002

Echo 72441-16002

DEBRIS SHIELD KIT
(Superseded to 72441-16003)

$45.99

$

In Stock, only 4 left!

0

1

Echo 11022-05500

SCREW - 5X50
(Superseded to V203001530)

$2.49

$

In Stock, only 2 left!

0

2

Echo 72480-16210

CLAMP - UPPER
(Superseded to C551000060)

$1.99

$

In Stock, Qty 6

0

3

Echo 72441-16220

SPACER
(Superseded to V363000160)

$1.99

$

In Stock, Qty 12

0

4

Echo 22420-16120

NUT - 5
(Superseded to V263000130)

$1.49

$

In Stock, Qty 5

0

5

Echo 72480-16112

SHIELD, DEBRIS
(Superseded to 72480-16113)

$14.99

$

In Stock, only 3 left!

0

6

Echo 11022-06400

SCREW - 6X40
(Superseded to V204000450)

$1.99

$

In Stock, only 1 left!

0

7

Echo 72441-16130

BRACKET
(Superseded to C551000140)

$4.49

$

In Stock, Qty 11

0

8

Echo 11202-40100

SCREW
(Superseded to V252000240)

$1.49

$

In Stock, only 1 left!

0

9

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

10

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

11

Echo 72480-16121

KNIFE, TRIMMER LINE
(Superseded to C554000040)

$6.49

$

In Stock, only 2 left!

0

12

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0

72450-12101

Echo 72450-12101

MAIN PIPE ASSY
(Superseded to 72450-12102)

$94.99

$

Usually ships in 2-4 days

0

13

Echo 72017-12150

LABEL - ALIGNMENT
(Superseded to X524002380)

$1.49

$

Usually ships in 2-4 days

0

14

Echo 72005-12140

LABEL - HANDLE LOCATION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 14

0

15

Echo 22026-12130

GRIP
(Superseded to C412000360)

$16.99

$

In Stock, only 3 left!

0

16

Echo 22024-12120

BUSHING
(Superseded to C501000040)

$9.49

$

Usually ships in 2-4 days

0

17

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0

19

Echo 22009-12210

HANGER
(Superseded to C063000010)

$13.99

$

Usually ships in 2-4 days

0

20

Echo 72460-12530

LABEL - CAUTION
(Superseded to 19422-00029)

$6.49

$

In Stock, only 2 left!

0

21

Echo 19420-00028

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

22

Echo 22000-12413

PIPE, MAIN
(Superseded to C504000620)

$30.99

$

In Stock, only 3 left!

0
