T 272 X - Shindaiwa String Trimmer Clutch Shoe, Piston Parts Diagram

String Trimmer

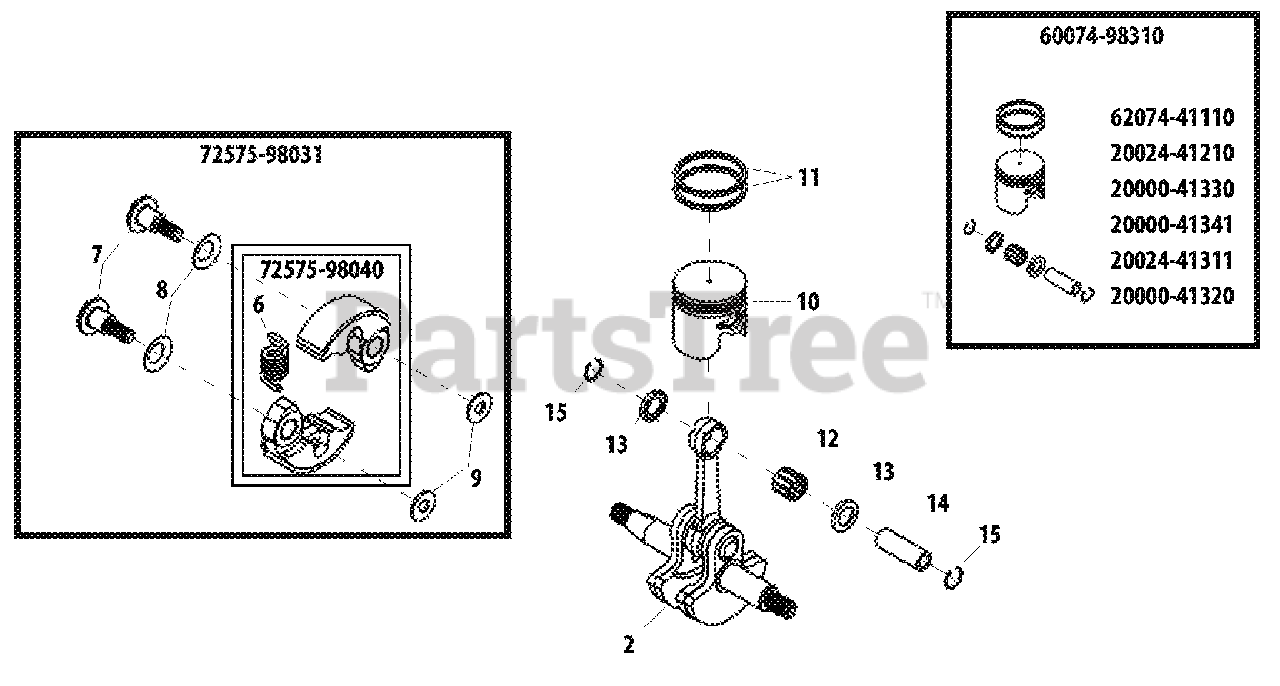

Clutch Shoe, Piston Parts Diagram

  • Title

2

Echo 20024-42001

CRANKSHAFT ASSY
(Superseded to A011000770)

$62.99

$

Usually ships in 2-4 days

0

7257598031

Echo 72575-98031

CLUTCH SHOE ASSY
(Superseded to A056000410)

$27.99

$

In Stock, only 2 left!

0

7257598040

Echo 72575-98040

CLUTCH SHOE ASSY
(Superseded to A056000420)

$22.99

$

Usually ships in 2-4 days

0

6

Echo 72575-98060

SPRING, CLUTCH
(Superseded to A566000110)

$4.49

$

In Stock, Qty 20+

0

7

Echo 72575-98071

BOLT, CLUTCH
(Superseded to A557000080)

$2.49

$

Usually ships in 2-4 days

0

8

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

6007498310

Echo 60074-98310

PISTON SET
(Superseded to P021027200)

$68.99

$

Usually ships in 2-4 days

0

10

Echo 62074-41110

PISTON
(Superseded to A100000650)

$

$

Not available

11

Echo 20024-41210

RING, PISTON
(Superseded to A101000330)

$4.99

$

In Stock, Qty 5

0

12

Echo 20000-41330

BEARING, NEEDLE
(Superseded to 37019-41230)

$6.49

$

In Stock, only 2 left!

0

13

Echo 20000-41341

WASHER, THRUST - 9
(Superseded to 37019-41240)

$2.49

$

In Stock, Qty 10

0

14

Echo 20024-41311

PIN, PISTON
(Superseded to V607000020)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0
