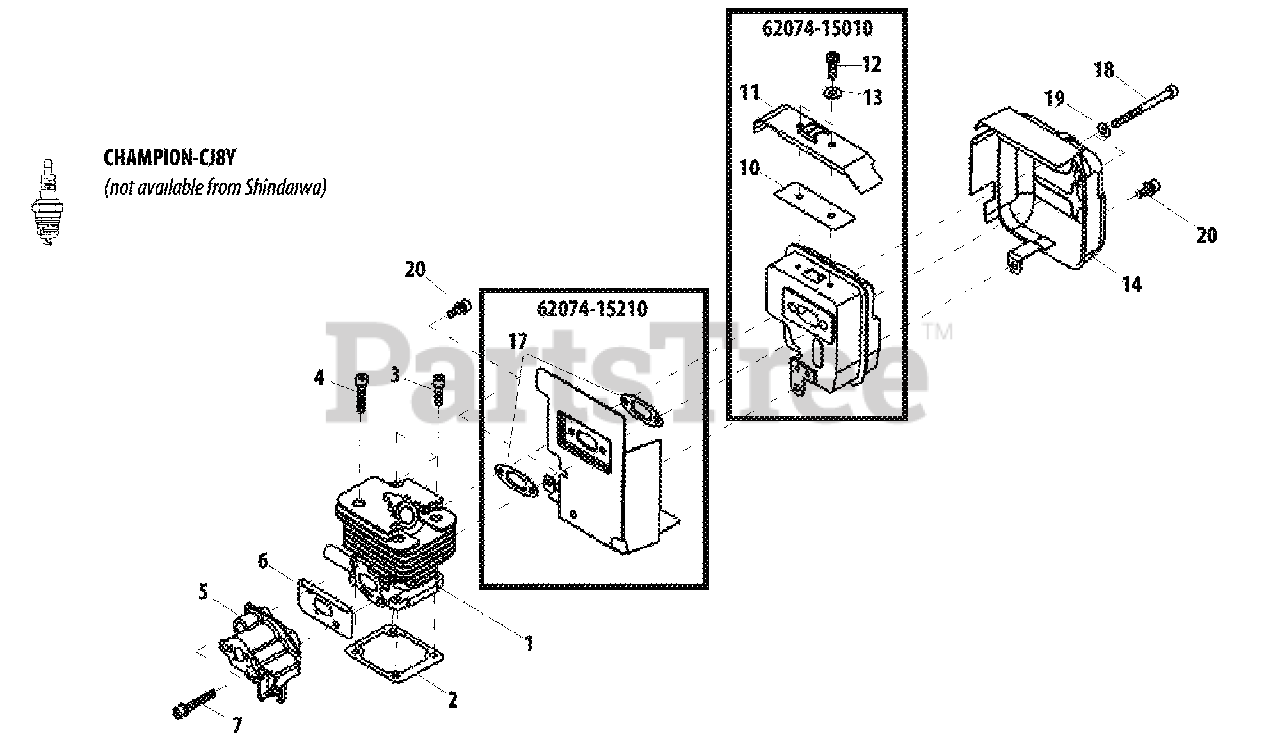

T 272 X - Shindaiwa String Trimmer Cylinder, Muffler Parts Diagram

String Trimmer

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 62074-12110

CYLINDER
(Superseded to A130001300)

$76.99

$

Usually ships in 2-4 days

0

2

Echo 62074-12120

GASKET, CYLINDER
(Superseded to V100000410)

$3.49

$

In Stock, Qty 7

0

3

Echo 11020-05160

BOLT M5×16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0

4

Echo 11020-05300

BOLT
(Superseded to V203000730)

$1.99

$

In Stock, only 2 left!

0

5

Echo 62074-12210

INSULATOR
(Superseded to A200000630)

$

$

Not available

6

Echo 62074-12220

GASKET
(Superseded to V103000930)

$4.49

$

In Stock, only 2 left!

0

7

Echo 11022-05305

BOLT SS M5×30
(Superseded to V203000480)

$4.99

$

In Stock, only 2 left!

0

6207415010

Echo 62074-15010

MUFFLER ASSY
(Superseded to A030000220)

$229.99

$

Usually ships in 2-4 days

0

10

Echo 62054-15130

SCREEN
(Superseded to 62028-15360)

$3.49

$

In Stock, only 1 left!

0

11

Echo 62054-15160

TAIL PLATE
(Superseded to 62028-15160)

$12.99

$

Usually ships in 2-4 days

0

12

Echo 11203-04060

SCREW M4×6
(Superseded to 9157804006)

$1.49

$

In Stock, only 1 left!

0

13

Echo 01613-04080

WASHER 4 MM
(Superseded to 90060300004)

$0.99

$

In Stock, Qty 6

0

14

Echo 62074-15310

COVER, MUFFLER
(Superseded to A320000700)

$25.99

$

Usually ships in 2-4 days

0

6207415210

Echo 62074-15210

GASKET
(Superseded to V104001290)

$

$

Not available

17

Echo 62074-15390

GASKET
(Superseded to V104001310)

$1.99

$

In Stock, only 3 left!

0

18

Echo 9110905060

BOLT M5×60

$1.99

$

In Stock, Qty 5

0

19

Echo 01610-05085

WASHER SS 5 MM
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0

20

Echo 11022-05120

BOLT M5×12
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0
