T 282 - Shindaiwa String Trimmer (Original Version) Gear Case Parts Diagram

String Trimmer

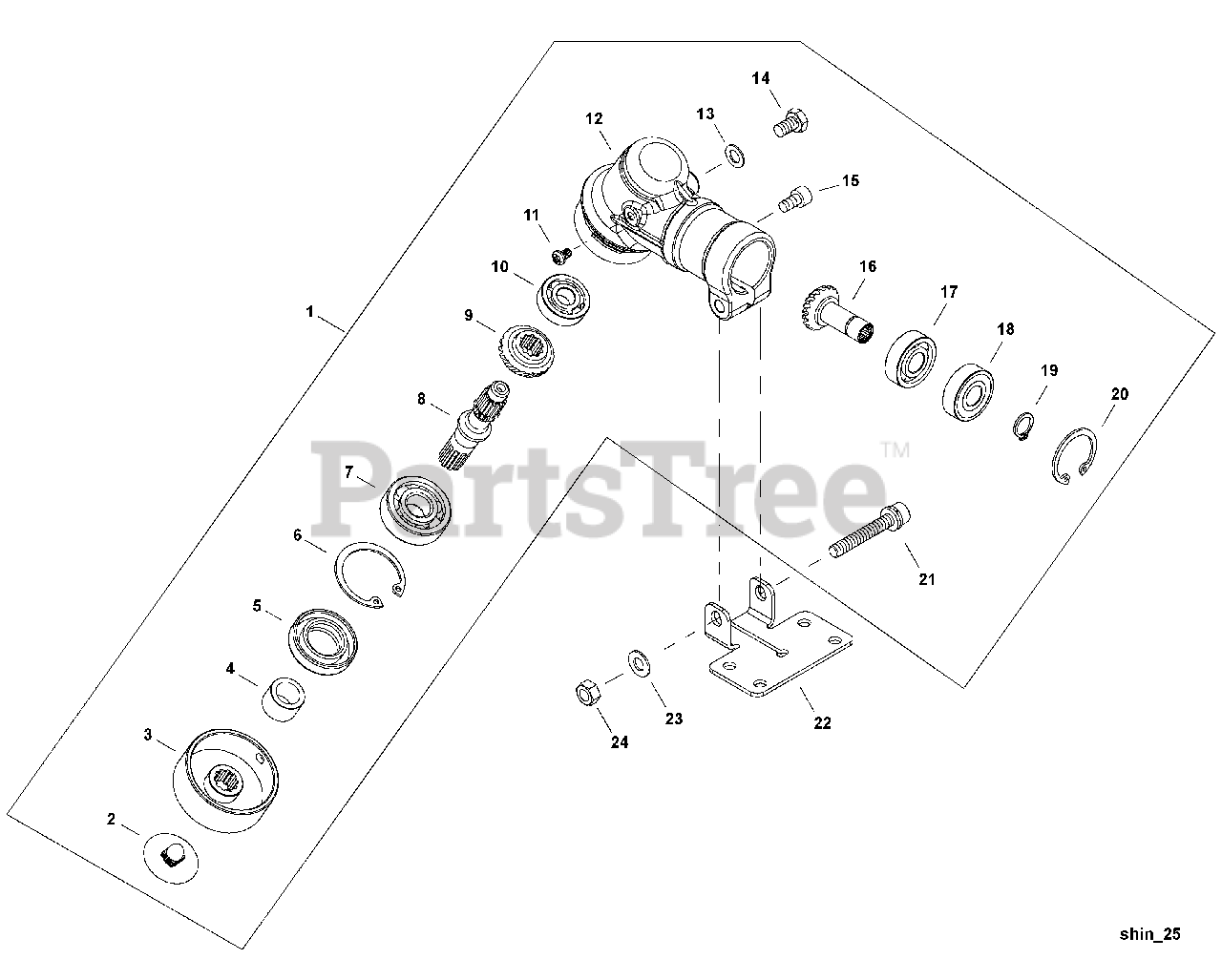

Gear Case Parts Diagram

  • Title

1

Echo 60141-98390

GEAR CASE ASSY
(Superseded to P021027320)

$210.99

$

Usually ships in 2-4 days

0

2

Echo V491000280

CLIP

$1.49

$

Usually ships in 2-4 days

0

3

Echo C535000700

HOLDER

$28.99

$

In Stock, only 2 left!

0

4

Echo 22000-13230

SPACER
(Superseded to V356000500)

$4.99

$

In Stock, only 2 left!

0

5

Echo 22024-13121

SEAL, OIL
(Superseded to V510000000)

$5.49

$

In Stock, only 2 left!

0

6

Echo 02432-32120

RING, SNAP Ø32
(Superseded to 9242432000)

$1.49

$

In Stock, only 3 left!

0

7

Echo 12900-62015

BEARING, BALL 6201C
(Superseded to 90081006201)

$8.49

$

In Stock, only 2 left!

0

8

Echo 63091-63130

SHAFT, GEAR
(Superseded to C534000580)

$36.99

$

Usually ships in 2-4 days

0

9

Echo 63091-63140

GEAR, BEVEL
(Superseded to V651000480)

$79.99

$

In Stock, only 2 left!

0

10

Echo 12900-06092

BEARING, BALL 609
(Superseded to 90080000609)

$11.99

$

In Stock, Qty 5

0

11

Echo 11203-04060

SCREW M4×6
(Superseded to 9157804006)

$1.49

$

In Stock, Qty 5

0

12

Echo 63091-63110

CASE, GEAR
(Superseded to C531000590)

$55.99

$

In Stock, only 1 left!

0

13

Echo 01610-06080

WASHER 6.5×11.5×0.8
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 20+

0

14

Echo 01014-06100

BOLT M6×10
(Superseded to 9103006010)

$1.49

$

In Stock, Qty 10

0

15

Echo 01020-05100

BOLT M5×10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 8

0

16

Echo 63091-63150

PINION, BEVEL Ø8
(Superseded to V651000490)

$79.99

$

In Stock, only 2 left!

0

17

Echo 12900-60003

BEARING, BALL 6001
(Superseded to 90080006000)

$13.99

$

In Stock, only 2 left!

0

18

Echo 12900-60005

BEARING, BALL 6000Z
(Superseded to 9404406000)

$11.99

$

In Stock, only 2 left!

0

19

Echo 02430-10100

RING, SNAP Ø10
(Superseded to 9242310000)

$1.49

$

Usually ships in 2-4 days

0

20

Echo 02432-26120

RING, SNAP Ø26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

21

Echo 11022-06400

BOLT M6×40
(Superseded to V204000450)

$1.99

$

In Stock, only 1 left!

0

22

Echo 63076-63310

PLATE, SHIELD MOUNTING
(Superseded to C551000050)

$5.49

$

In Stock, only 2 left!

0

23

Echo 01613-06100

WASHER 6.5×13×1
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

24

Echo 01500-06051

NUT, HEX M6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0
