T 282 - Shindaiwa String Trimmer (SN: T09612001001 - T09612999999) FUEL SYSTEM S/N T09612001001 - T09612004580 Parts Diagram

String Trimmer

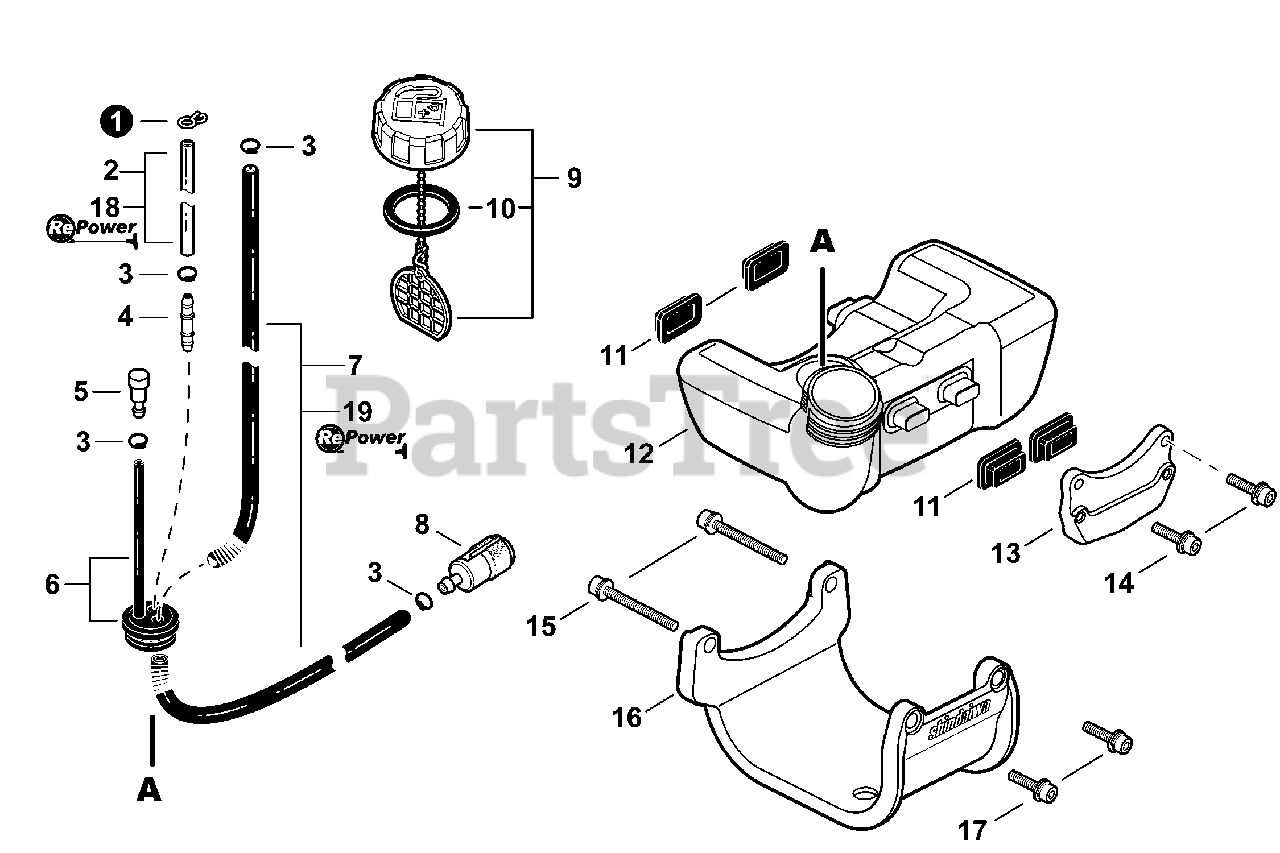

FUEL SYSTEM S/N T09612001001 - T09612004580 Parts Diagram

  • Title

1

Echo V490000510

CLIP, SPRING Ø5.2

$1.49

$

In Stock, Qty 5

0

2

Echo V471002580

PIPE, FUEL RETURN

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 9

0

3

Echo V490000500

CLIP Ø6

$1.49

$

In Stock, Qty 7

0

4

Echo V186000210

CONNECTOR, PIPE

$2.49

$

In Stock, Qty 20+

0

5

Echo A356000040

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

6

Echo V470000890

GROMMET, FUEL W/VENT PIPE

$6.99

$

In Stock, only 3 left!

0

7

Echo V471002350

PIPE, FUEL 3.3×6×160

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, only 2 left!

0

8

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$8.49

$

In Stock, Qty 8

0

9

Echo A033000020

CAP ASSY, FUEL

Note: Includes ITEM 10

$10.99

$

In Stock, Qty 20+

0

10

Echo V107000010

GASKET, FUEL CAP

$1.99

$

In Stock, Qty 18

0

11

Echo V420002220

CUSHION, FUEL TANK

$1.49

$

In Stock, Qty 20+

0

12

Echo A350001720

TANK, FUEL
(Superseded to A350002290)

$50.99

$

In Stock, only 2 left!

0

13

Echo A393000170

BRACKET, METAL FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

14

Echo V203000760

BOLT, ADHESIVE M5×20

$1.99

$

In Stock, Qty 8

0

15

Echo V203000520

BOLT M5×40

$1.99

$

In Stock, Qty 6

0

16

Echo A175000170

GUARD, PLASTIC FUEL TANK

$9.99

$

Usually ships in 2-4 days

0

17

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

$1.49

$

In Stock, Qty 8

0

18

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: See RePower Maintenance Kits

$69.99

$

In Stock, only 2 left!

0

19

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

Note: See RePower Maintenance Kits

$48.99

$

In Stock, only 1 left!

0
