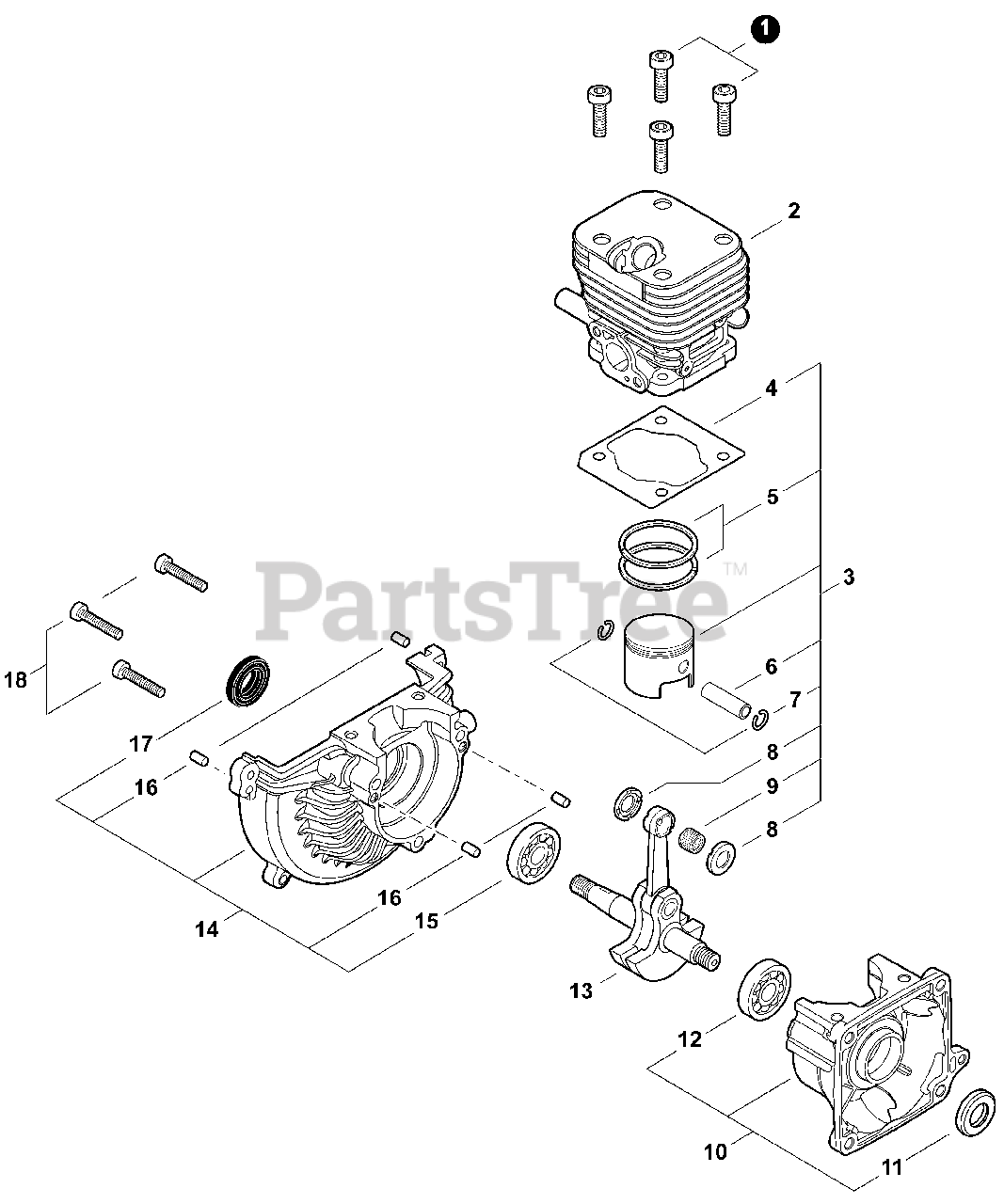

T 282 - Shindaiwa String Trimmer (SN: T09813001001 - T09813999999) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Echo 90010505016

BOLT 5×16

$1.49

$

In Stock, only 2 left!

0

2

Echo A130001280

CYLINDER ASSY

$119.99

$

In Stock, only 3 left!

0

3

Echo A010000031

PISTON KIT
(Superseded to P021045970)

Note: Includes ITEMS 4-9

$59.99

$

In Stock, Qty 7

0

4

Echo V100000440

GASKET, CYLINDER

$1.99

$

In Stock, only 4 left!

0

5

Echo A101000340

RING, PISTON

$6.99

$

In Stock, only 1 left!

0

6

Echo V607000020

PIN, PISTON

$4.99

$

Usually ships in 2-4 days

0

7

Echo V580000090

RING, SNAP

$5.99

$

In Stock, only 2 left!

0

8

Echo V392000020

WASHER, THRUST 9

$2.99

$

In Stock, Qty 10

0

9

Echo V554000010

BEARING, NEEDLE 9

$7.49

$

In Stock, only 2 left!

0

10

Echo P021028130

CRANKCASE ASSY, S
(Superseded to P021028131)

Note: Includes ITEMS 11-12

$49.99

$

Usually ships in 2-4 days

0

11

Echo V505000090

SEAL, OIL

$6.99

$

In Stock, Qty 11

0

12

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$8.99

$

In Stock, Qty 19

0

13

Echo A011000800

CRANKSHAFT

$110.99

$

Usually ships in 2-4 days

0

14

Echo P021028140

CRANKCASE ASSY, M

Note: Includes ITEMS 15-17

$44.99

$

In Stock, Qty 5

0

15

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$8.99

$

In Stock, Qty 19

0

16

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 17

0

17

Echo V505000090

SEAL, OIL

$6.99

$

In Stock, Qty 11

0

18

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, only 3 left!

0
