T 282 X - Shindaiwa String Trimmer (SN: T20412001001 - T20412999999) Clutch, Fan Case Parts Diagram

String Trimmer

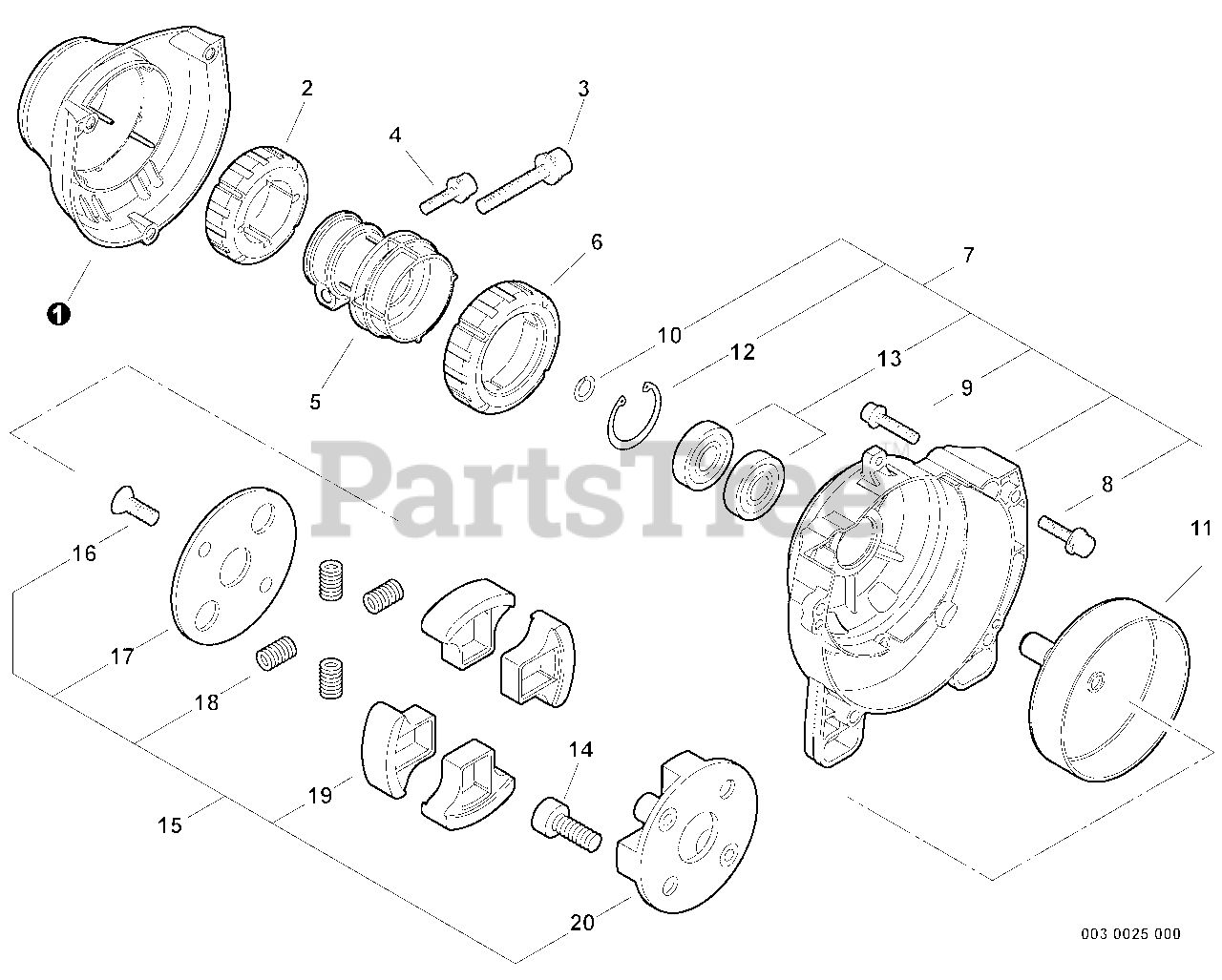

Clutch, Fan Case Parts Diagram

  • Title

1

Echo A575000491

COVER, CUSHION

$43.99

$

Usually ships in 2-4 days

0

2

Echo V423000040

CUSHION - FRONT

$3.49

$

Usually ships in 2-4 days

0

3

Echo V204000410

SCREW - 6X28
(Superseded to V204000411)

$

$

Not available

4

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

5

Echo A575000270

CLAMP, MAIN PIPE

$29.99

$

In Stock, only 2 left!

0

6

Echo V423000050

CUSHION - REAR

$3.49

$

Usually ships in 2-4 days

0

7

Echo P021036850

FAN CASE ASSY
(Superseded to P021041990)

Note: Includes ITEMS 8-13

$126.99

$

Usually ships in 2-4 days

0

8

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

9

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

$1.49

$

In Stock, only 3 left!

0

10

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

11

Echo A556000790

DRUM, CLUTCH
(Superseded to A556001670)

$40.99

$

In Stock, Qty 8

0

12

Echo 9242428000

RING, RETAINING - 28
(Superseded to 90070200028)

$1.99

$

In Stock, Qty 20+

0

13

Echo 9400236001

BEARING, BALL - 6001DDUC3

$8.99

$

In Stock, only 2 left!

0

14

Echo A557000120

BOLT, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

15

Echo A056000691

CLUTCH ASSY
(Superseded to A056000692)

Note: Includes ITEMS 16-20

$114.99

$

In Stock, only 2 left!

0

16

Echo V203000880

SCREW

$1.49

$

In Stock, Qty 9

0

17

Echo A551000120

PLATE, CLUTCH

$8.49

$

Usually ships in 2-4 days

0

18

Echo A566000220

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

19

Echo A555000290

SHOE, CLUTCH

$8.99

$

In Stock, Qty 5

0

20

Echo A552000350

HUB, CLUTCH
(Superseded to A552000351)

$15.99

$

In Stock, only 1 left!

0
