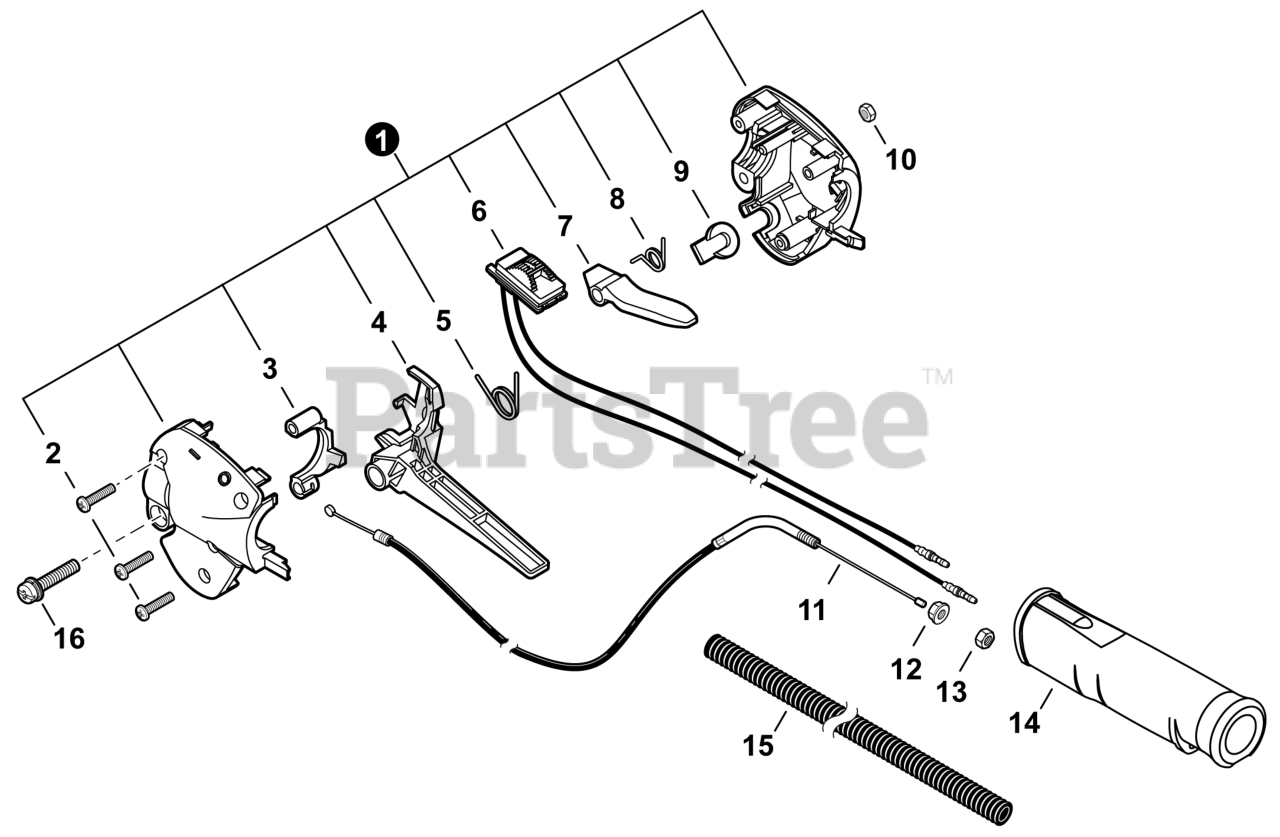

T 302 - Shindaiwa String Trimmer (SN: U34015001001 - U34015999999) THROTTLE CONTROL Parts Diagram

String Trimmer

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C044001660

THROTTLE CONTROL ASSY

Note: Includes Items 2-9

$32.99

$

Usually ships in 2-4 days

0

2

Echo P022032480

SCREW

$1.99

$

Usually ships in 2-4 days

0

3

Echo C461000020

LOCKOUT, THROTTLE

$3.99

$

In Stock, only 2 left!

0

4

Echo C450000480

TRIGGER, THROTTLE

$8.99

$

In Stock, Qty 18

0

5

Echo P022025820

SPRING, THROTTLE RETURN

$1.99

$

In Stock, only 2 left!

0

6

Echo P022051100

SWITCH, ON-OFF

$17.99

$

Usually ships in 2-4 days

0

7

Echo C460000190

LEVER, THROTTLE LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

8

Echo V452000500

SPRING, THROTTLE LOCKOUT

$1.99

$

In Stock, only 1 left!

0

9

Echo P022025790

PLUG

$1.99

$

Usually ships in 2-4 days

0

10

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

11

Echo V430005180

CABLE, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

12

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

13

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 20+

0

14

Echo C403000612

GRIP, HANDLE

$20.99

$

In Stock, Qty 8

0

15

Echo V475009440

TUBE, PLASTIC PROTECTIVE

$1.49

$

Usually ships in 2-4 days

0

16

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
