T 3410 - Shindaiwa String Trimmer Throttle Lever/Outer Tube Parts Diagram

String Trimmer

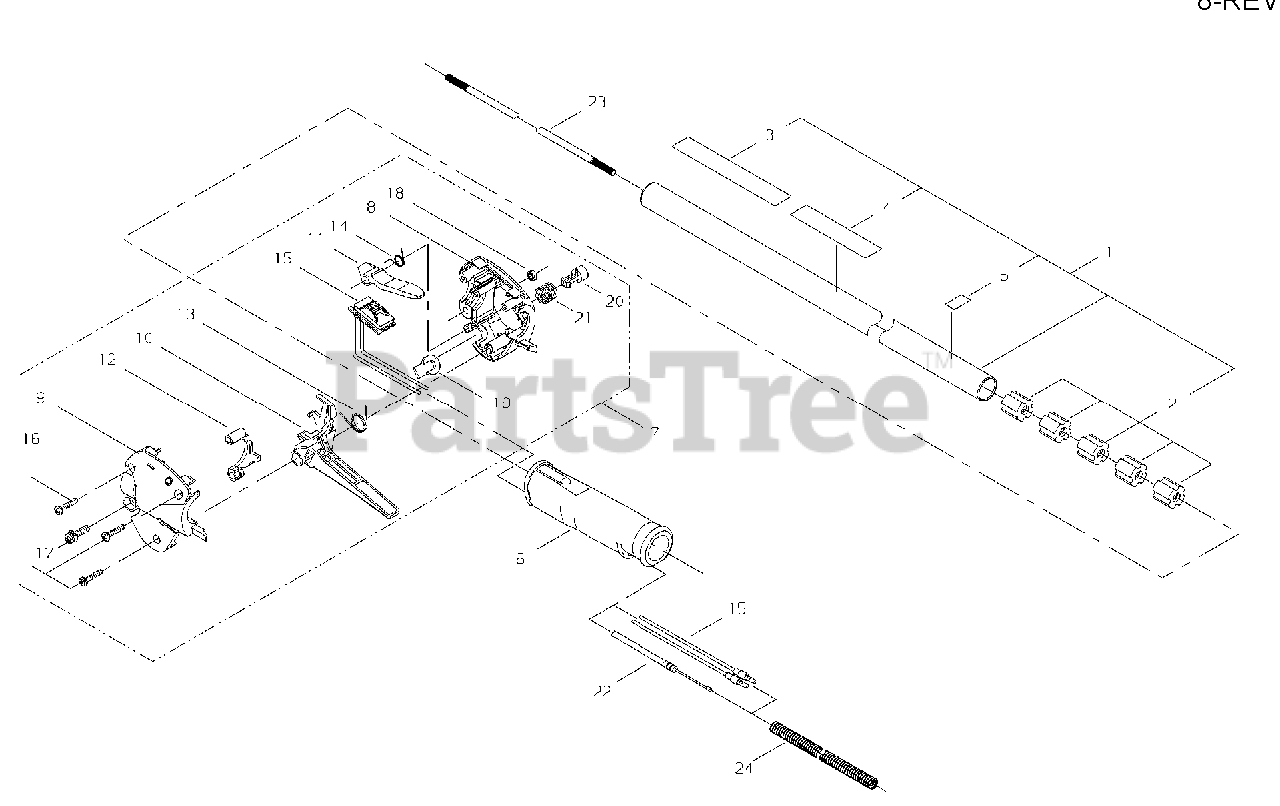

Throttle Lever/Outer Tube Parts Diagram

  • Title

8- 1

Echo 60912-98310

MAIN PIPE ASSY
(Superseded to P021034680)

$95.99

$

Usually ships in 2-4 days

0

2

Echo 22024-12120

BUSHING
(Superseded to C501000040)

$9.49

$

Usually ships in 2-4 days

0

3

Echo 19420-00084

LABEL - TRADE
(Superseded to X504002780)

$3.99

$

In Stock, Qty 7

0

4

Echo 19422-00028

LABEL - CAUTION
(Superseded to X505005990)

$5.49

$

In Stock, Qty 6

0

5

Echo 19402-00269

LABEL - CAUTION

$

$

Not available

6

Echo 63043-62140

GRIP
(Superseded to C412000380)

$9.99

$

In Stock, only 2 left!

0

7

Echo 63907-62020

CONTROL HANDLE ASSY
(Superseded to C044000850)

$63.99

$

Usually ships in 2-4 days

0

8

Echo 63000-62340

HANDLE, CONTROL - RIGHT

$11.99

$

Usually ships in 2-4 days

0

9

Echo 63000-62350

HANDLE, CONTROL - LEFT
(Superseded to C401000190)

$10.99

$

Usually ships in 2-4 days

0

10

Echo 63002-62340

TRIGGER, THROTTLE
(Superseded to C450000480)

$9.99

$

In Stock, only 2 left!

0

11

Echo 63901-62352

LEVER, TRIGGER LOCKOUT
(Superseded to C460000190)

$4.99

$

In Stock, Qty 8

0

12

Echo 63002-62350

LOCKOUT, THROTTLE
(Superseded to C461000020)

$3.99

$

In Stock, only 2 left!

0

13

Echo 63880-65350

SPRING
(Superseded to V452000700)

$1.99

$

In Stock, Qty 7

0

14

Echo 63901-62370

SPRING
(Superseded to V452000500)

$1.99

$

In Stock, Qty 5

0

15

Echo 63907-62310

SWITCH, IGNITION
(Superseded to A440001460)

$25.99

$

Usually ships in 2-4 days

0

16

Echo 63880-65360

SCREW - 4X20 -- TAPPING
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 11206-05201

SCREW - 5X20
(Superseded to 9157505020)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 11

0

19

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

21

Echo 70871-65180

SPRING
(Superseded to V450001010)

$1.49

$

In Stock, only 4 left!

0

22

Echo 63907-62170

CABLE, THROTTLE
(Superseded to V430002880)

$6.49

$

Usually ships in 2-4 days

0

23

Echo 63907-62210

PIPE, MAIN
(Superseded to C504000710)

$27.99

$

Usually ships in 2-4 days

0

24

Echo 64902-62310

TUBE

$1.99

$

Usually ships in 2-4 days

0
